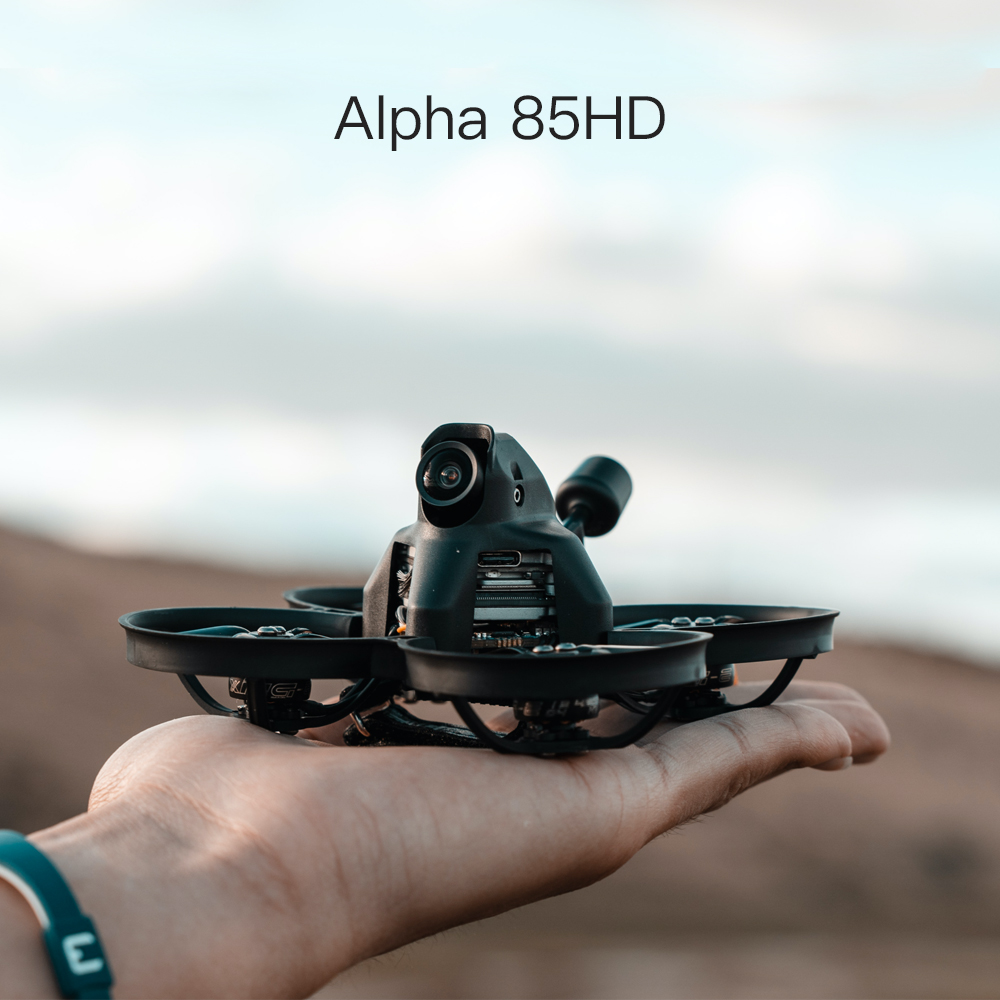

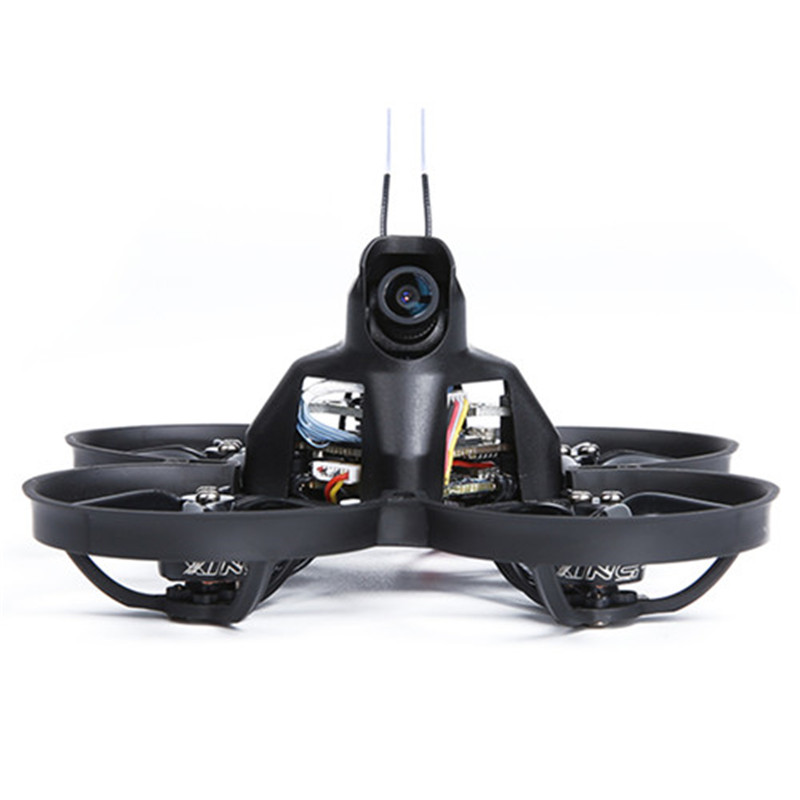

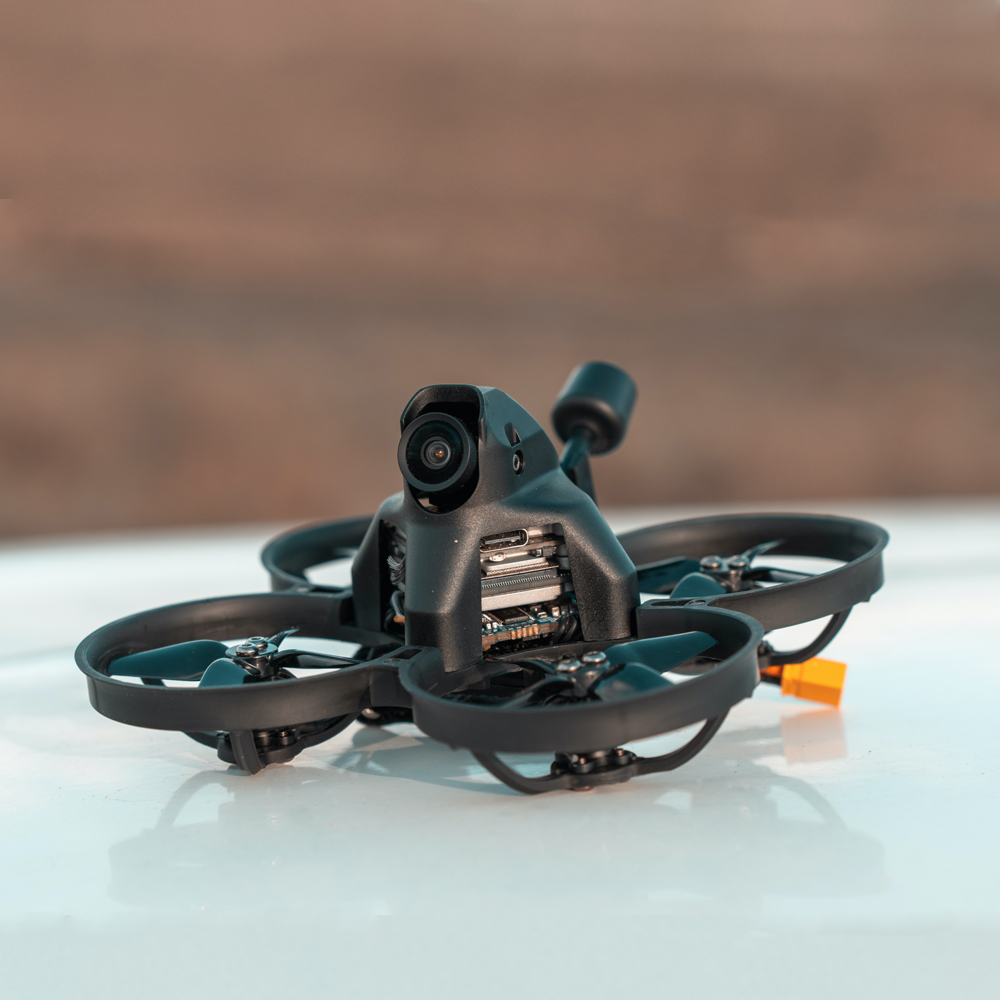

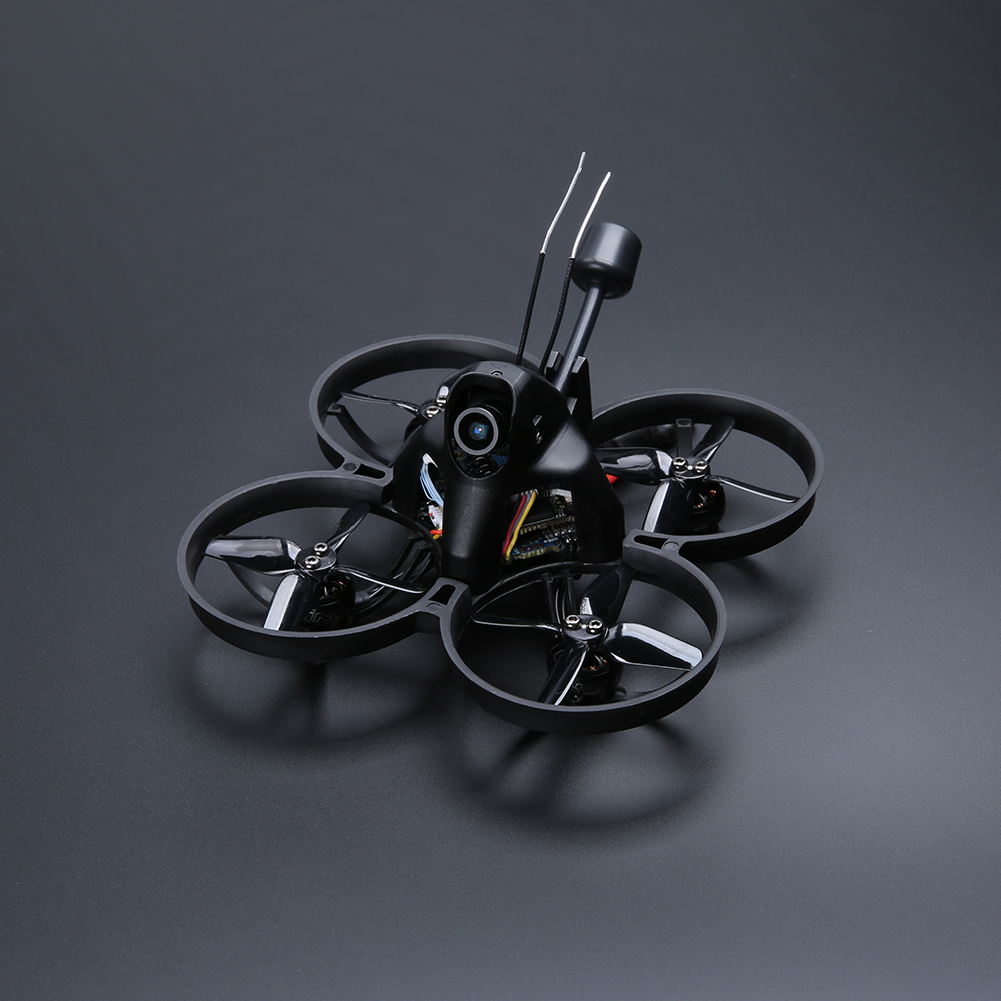

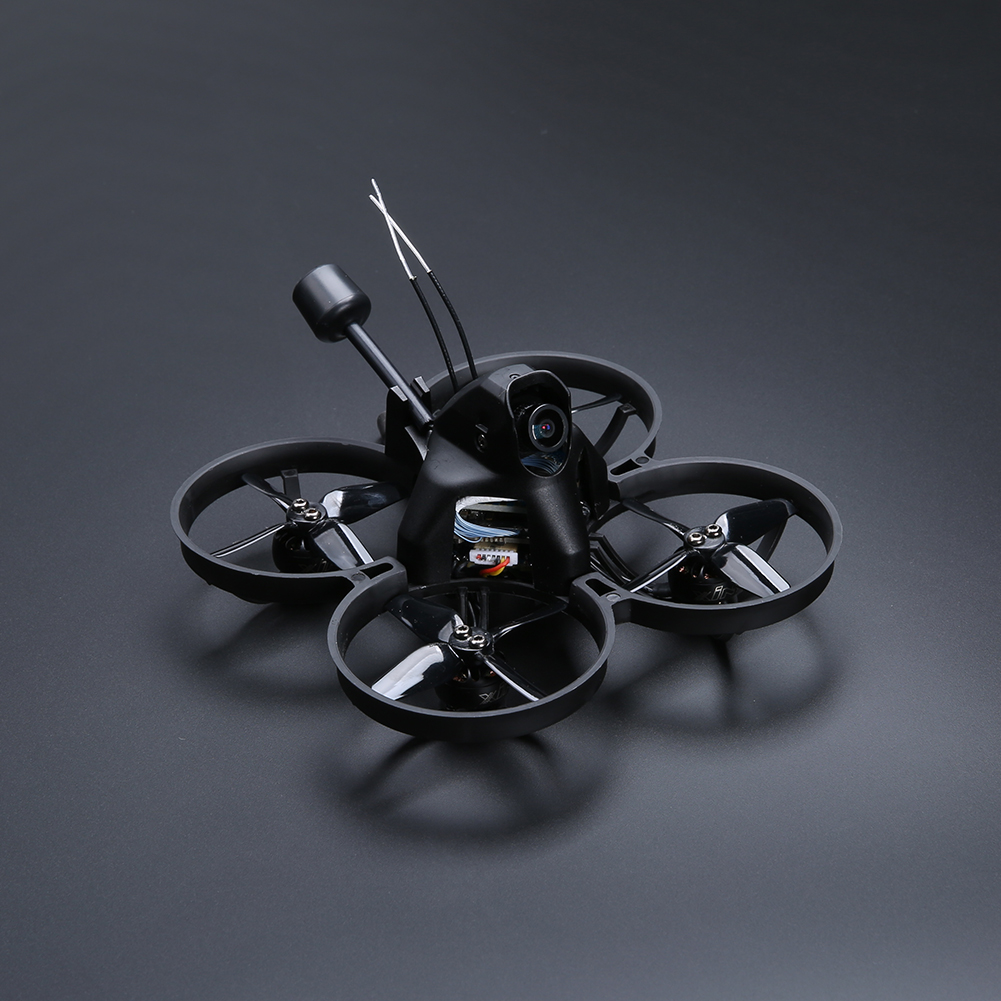

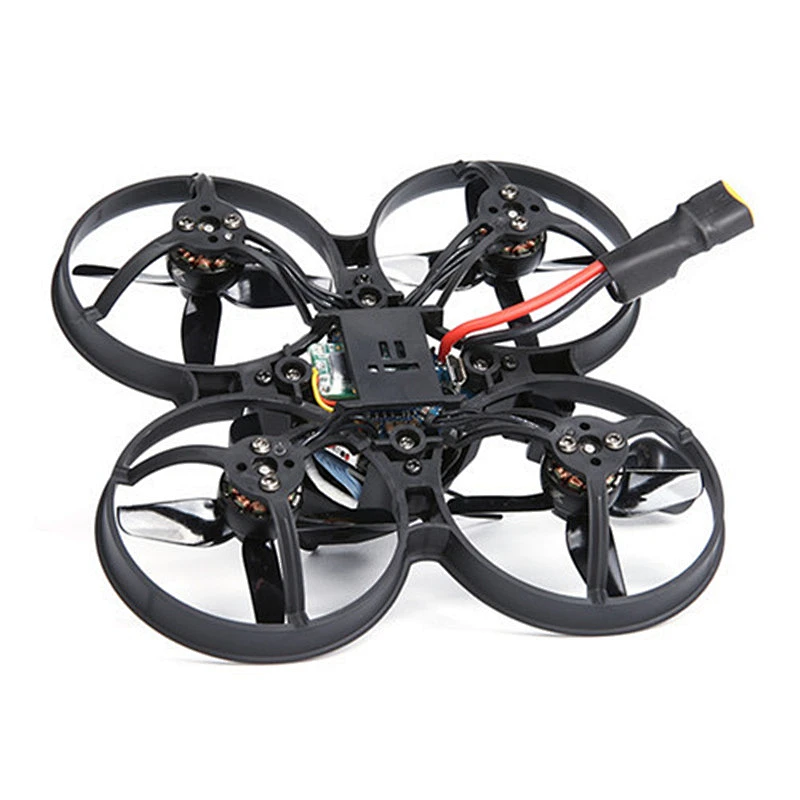

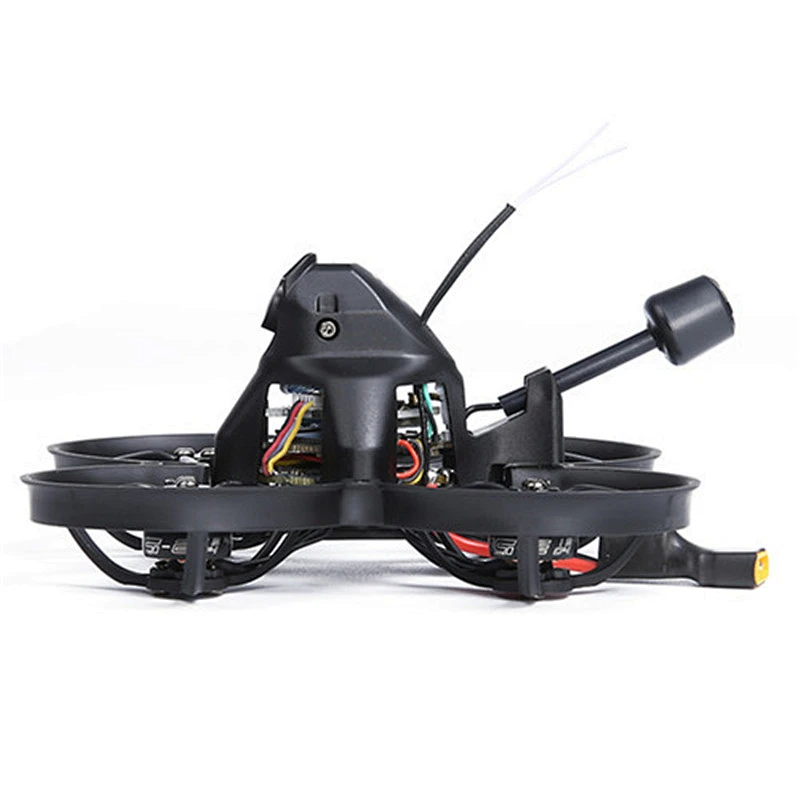

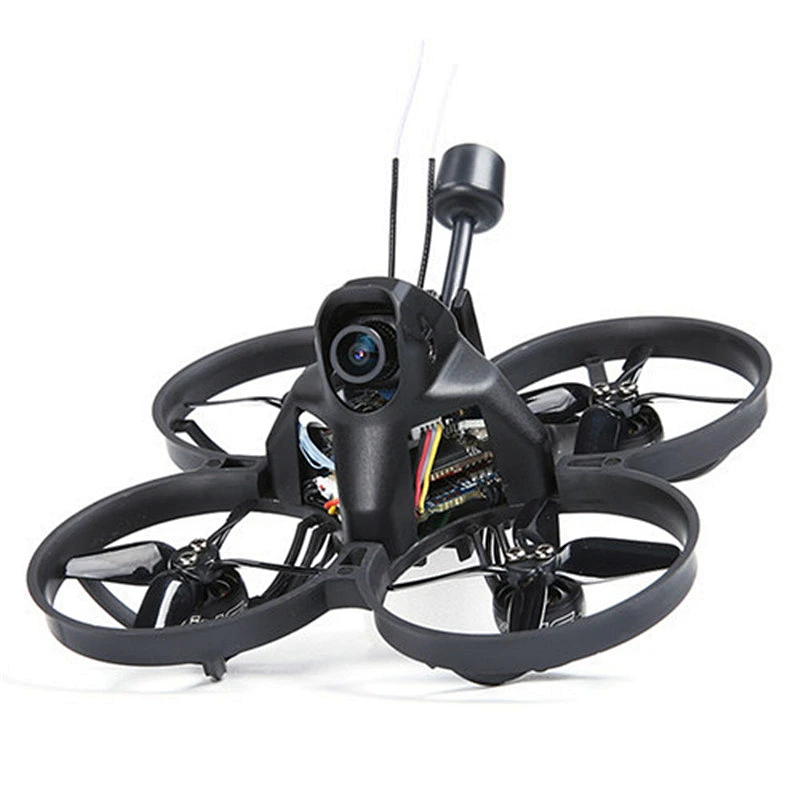

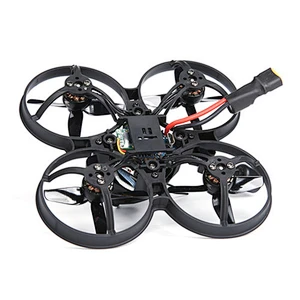

iFlight Alpha A85 HD 2Inch 4S Whoop w/Caddx Nebula Digital HD System FPV Racing drone from China Manufacturer

Wheelbase:85mm
Body size:125*125mm
Ducted propeller size:2 inch
FC pattern:25.5*25.5mm
FPV cam spacing:14mm
Weight:84.5g (without battery)
Flight time:5-7 min cruising (4S 450mAh)
Website:www.lxrcmodel.com
Use:Vehicles & Remote Control Toys
Place of Origin:CN;GUA
Brand Name:iFlight
Model Number:IF-A85HD

Product Description

Alpha A85 HD BNF Specs:
	SucceX-D 20A Whoop F4 AIO Board
	XING-E 1204 FPV Micro Motor
Wheelbase:	85mm
Body size:	125*125mm
Ducted propeller size:	2 inch
FC pattern:	25.5*25.5mm
FPV cam spacing:	14mm
Weight:	84.5g (without battery)
Flight time:	5-7 min cruising (4S 450mAh)
FC // SucceX-D 20A F4 Whoop AIO
Size：	30.5*30.5mm
Mounting pattern：	25.5*25.5mm/φ3mm
Connector：	Micro-USB
MCU：	STM32F411
Gyro：	MPU6000
Blackbox：	8MB
BEC output：	5V 2A/10V 2A
INA pad：	UART2 (nR2)
Barometer：	no
Constant current：	20A，25A（Burst）
Input：	2-5S
Current sensor：	yes
BLHeli：	BLHeli-S
ESC Telemetry：	no
Target：	IFLIGHT_F411_PRO
ESC Firmware：	G-H-30 BLS
Additional Suggested Parts	DJI HD FPV Goggles Radio Controller Battery 4S 450mAh

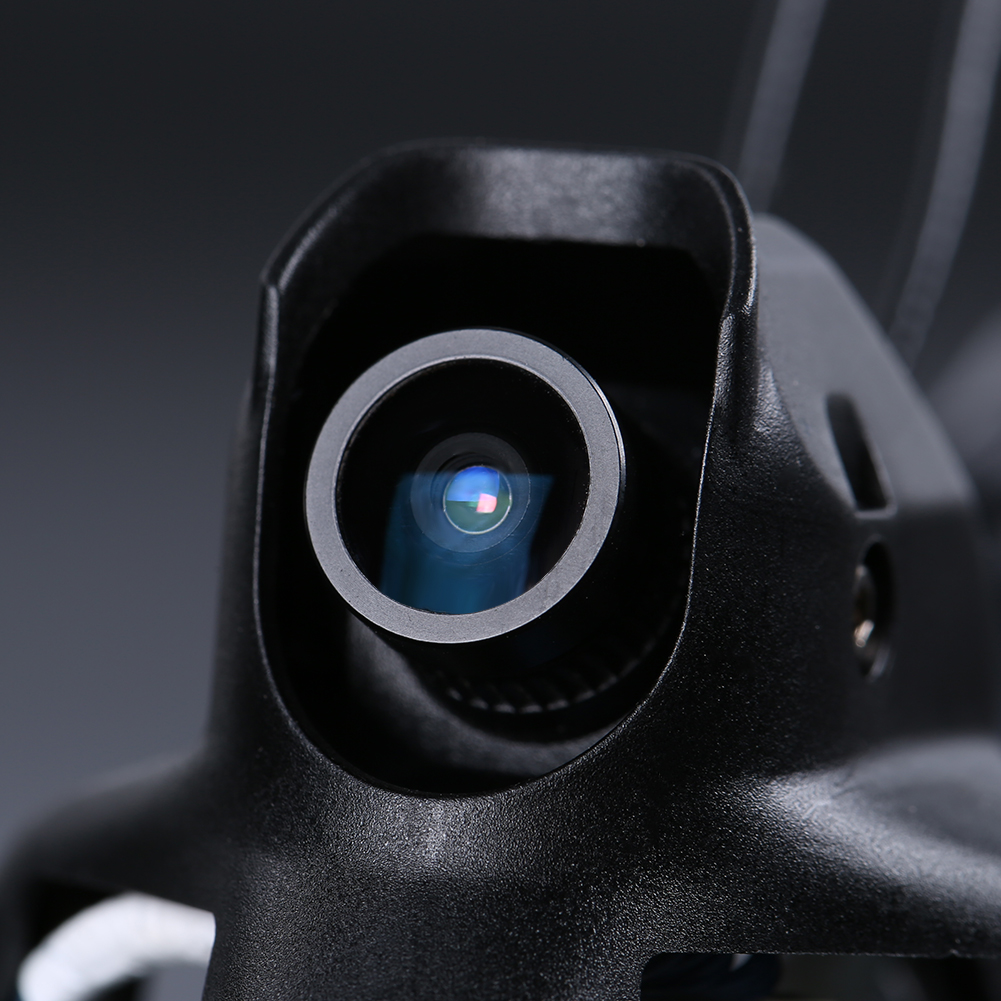

PRODUCT DESCRIPTIONLet's welcome the iFlight Alpha series, a new way to fly FPV. Ever wanted to try Digital FPV on the smallest possible whoop size quad? We sticked the caddx Vista and the new caddx Nebula cam to one of our new 2inch whoop frames, did some tuning and tried to find the optimal ratio between weight and power. This is what we came up with to combine flight time efficiency with sufficient power.

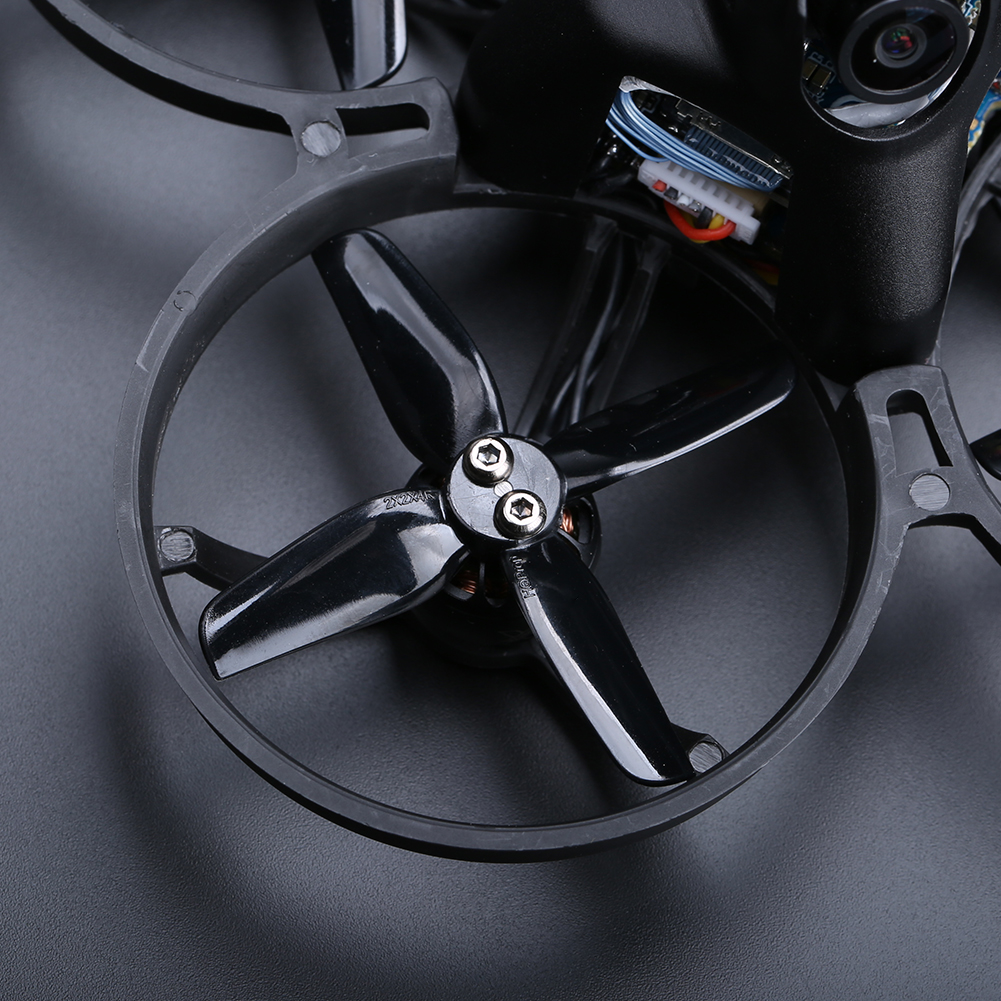

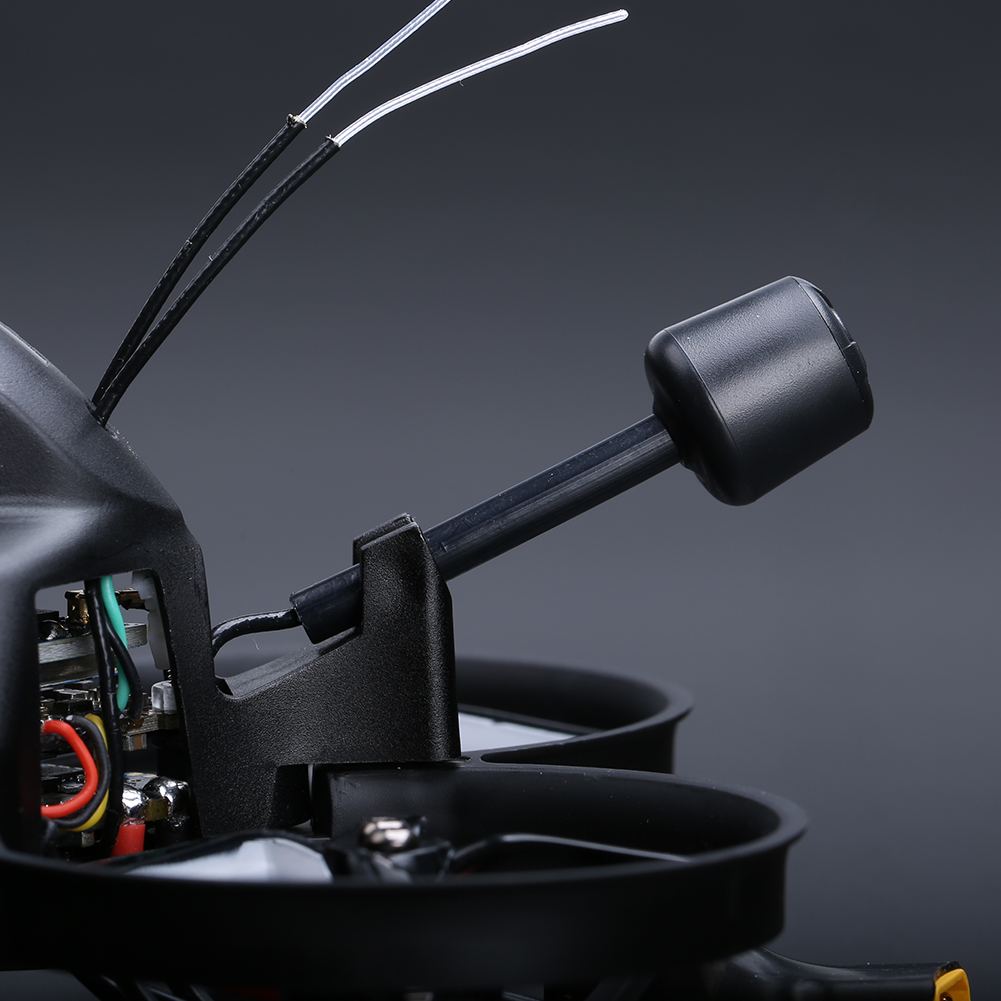

Features：84.5 grams (without battery) Butter smooth XING-E 1204，more torque and efficiency with longer flight times compared to 1105 motors Ducts to protect the sensitive environment or yourselfPre-tuned with smooth cinematic settingsiFlight Sigma 5.8G light antenna upgrade (included)iFlight Sigma 900mhz light micro antenna upgrade (included with every Crossfire Nano RX)

Related Products

Packing&Shipping

1 x Alpha 85mm Frame1 x Caddx Nebula Digital HD System Kit1 x iFlight Sigma 5.8g light antenna2sets HQ 2 inch 4-blades (Set of 4 - Color May Vary)1 x iFlight Lipo Strap

Company Introduction

Shenzhen Feixiang Model Co, Ltd. Was established in 2003, We deal with various kinds of R/C hobbies and R/C toys. Such as R/C
Multicopter, R/C Drone, R/C Airplane, Gas Airplane, R/C car, R/C boat, R/C Robot, RC accessories, etc. We export to all over the
world. Now we enjoy a very good credit in the overseas market. Our dealing brand contain most famous brand rc drone rc charger and
lipoly battery brand, such as:DJI,Tarot, Hobbywing, DLE, Flysky, Frsky,Zhiyu, T-motor, SKYRC,ISDT,ACE etc. We supply the most
competitive products with lower price and higher quality. We do business based on a simple formula: Give our customers the product
they want at a fair price, ship those.

Welcome to visit ourwww.lxrcmodel.com wholesale website.

Our Services & Strength

We provide customers with procurement services, we have not any MOQ for our customers. Shipping We adopt EXW term. Generally, we
choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide
the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable. Payment We
adopt T/T payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged
to purchasers. Warranty Procedure As long as you have a friendly business relationship with us, you can enjoy the warranty service
that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as
possible, in order to receive the best possible service. Warranty Period All products are warranted against defects for a period
of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective
products. You should always retain your original receipt as proof of the date of purchase.

Categories

iFlight Alpha A85 HD 2Inch 4S Whoop w/Caddx Nebula Digital HD System FPV Racing drone

Our Services & Strength

YOU MAY ALSO LIKE…

2 Pairs T-motor T5146 5146 5 Inch 3-blade drone propeller blades compatible POPO for FPV RC Drone - Yellow

2 Pairs T-motor T5146 5 Inch 3-blade drone propellers compatible POPO for FPV RC Drone - Clear Blue

2 Pairs T-motor T5146 5146 5 Inch 3-blade propeller drone compatible POPO for FPV RC Drone - Clear Red

Tarot Peeper I long-time drone come with 10x zoom gimbal / combo multi-rotor set TL750S2

Related Products

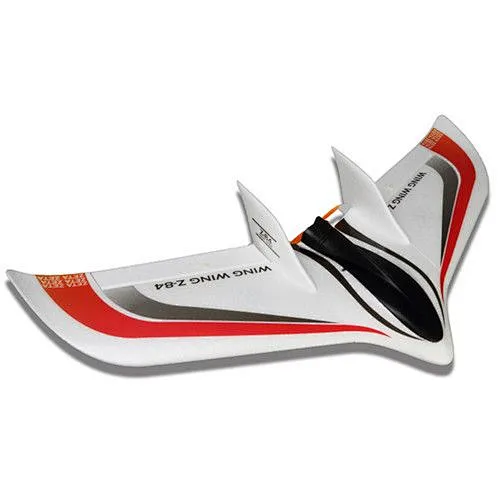

Zeta Wing Wing Z-84 Z84 EPO 845mm Wingspan Flying Wing RC Airplane PNP

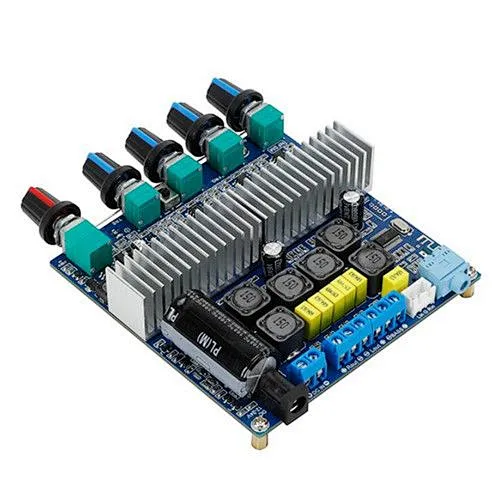

TPA3116 Subwoofer Amplifier Board 2.1 Channel High Power 4.2 Audio Amplifier Board DC12V-24V

T-Motor FT5 225mm F4 6S FPV Racing Drone PNP w/ 2207.5 1750KV Motor 50A BL_32 ESC 1200TVL Camera

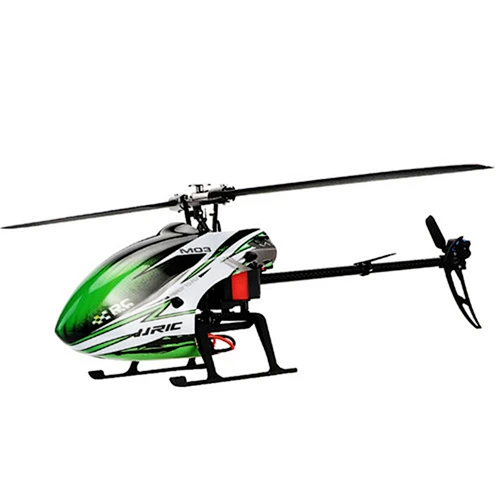

2020 JJRC M03 Six-channel Brushless Aleronsless RC Helicopter 3D/6G Stunt Remote Control Mini Drone Toy

Only 20g Happymodel Mobula6 65mm Crazybee F4 Lite 1S Whoop FPV Racing Drone BNF w/ Runcam Nano 3 Camera

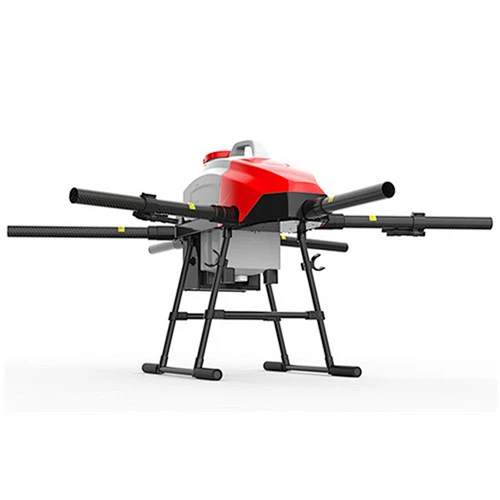

F16 16L 16KG agricultural spray drone frame 1630mm wheelbase 6-axis folding flight platform With Water tank Foldable UAV

Skywalker rc self made nylon folded propeller for New skywalker and X8

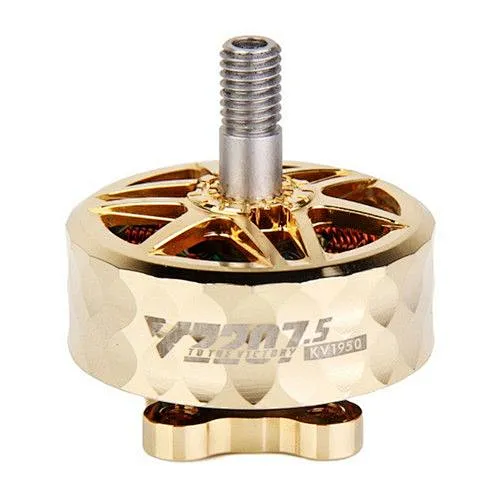

T-Motor VELOX V2207.5 1950KV Golden Brushless Motor For FPV Racing RC Drone
