- Dimension:54*20*10mm
- Weight:9.8g
- Number of Channels:8/24 channels
- Operating Voltage Range:3.5 -10V
- Operating Current:<60mA@5V
- Operating Range:>2km
- Altimeter Range & Resolution:-700m to 10000m & 0.1m
- Vertical Speed Range:±100m/s
- Voltage Measurement Range via AIN2:0-3.3V
- Compatibility:All FrSky ACCESS transmitters
- Type:Car
- Power:Battery
- Material:plastic
- Plastic Type:ABS
- Scale:1:8
- Radio Control Style:RC Hobby
- Place of Origin:CN
- Brand Name:Frsky
- Model Number:ARCHER-GR8
Features
ACCESS protocol with Over The Air (OTA)
Upgraded variometer sensor
Receiver redundancy
8 high-precision PWM channels
SBUS IN & OUT (using standard servo connectors)
S.Port / F.Port and AIN2 (on 4 pin socket)
Upgraded variometer sensor
Receiver redundancy
8 high-precision PWM channels
SBUS IN & OUT (using standard servo connectors)
S.Port / F.Port and AIN2 (on 4 pin socket)
Product Detail
Dimension: 54*20*10mm (L*W*H)
Weight: 9.8g
Number of Channels: 8/24 channels
8 High-precision PWM & 16 SBUS channels
8 High-precision PWM & 24 configurable SBUS channels (Stay tuned)
Operating Voltage Range: 3.5 -10V
Operating Current: ＜60mA@5V
Operating Range: ＞2km (Full range)(*Range may vary based on local conditions.)
Variometer Measurement Range
Altimeter Range & Resolution: -700m to 10000m & 0.1m
Vertical Speed Range: ±100m/s
Voltage Measurement Range via AIN2 (External device): 0-3.3V
Compatibility: All FrSky ACCESS transmitters
Weight: 9.8g
Number of Channels: 8/24 channels
8 High-precision PWM & 16 SBUS channels
8 High-precision PWM & 24 configurable SBUS channels (Stay tuned)
Operating Voltage Range: 3.5 -10V
Operating Current: ＜60mA@5V
Operating Range: ＞2km (Full range)(*Range may vary based on local conditions.)
Variometer Measurement Range
Altimeter Range & Resolution: -700m to 10000m & 0.1m
Vertical Speed Range: ±100m/s
Voltage Measurement Range via AIN2 (External device): 0-3.3V
Compatibility: All FrSky ACCESS transmitters
Item Packing
11

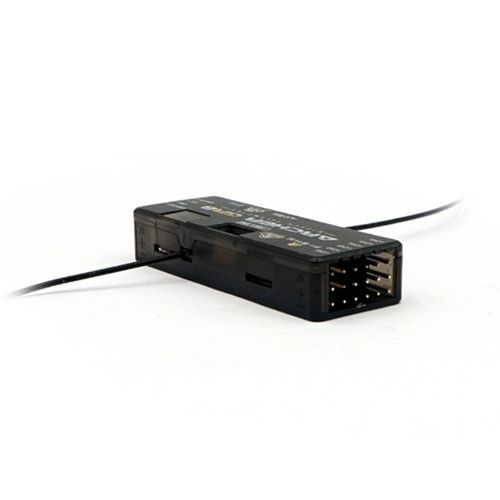

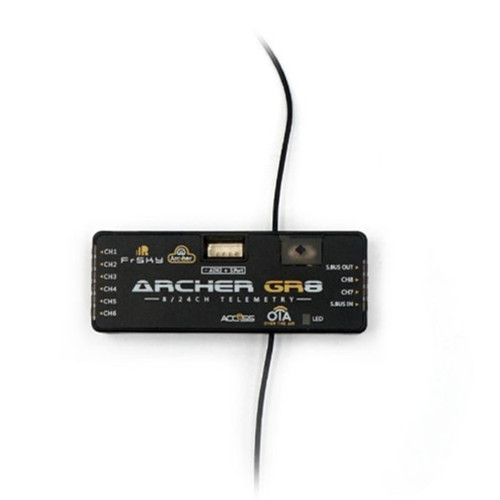

Detailed Images
