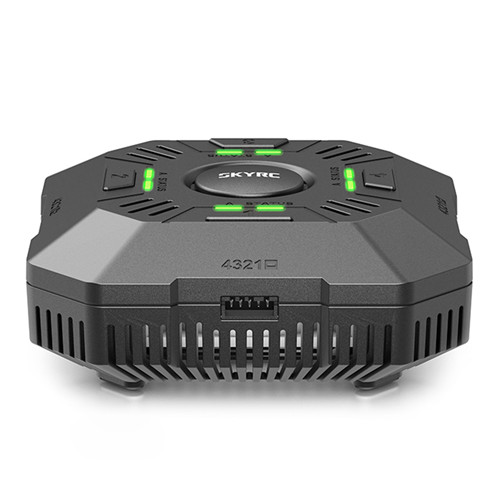

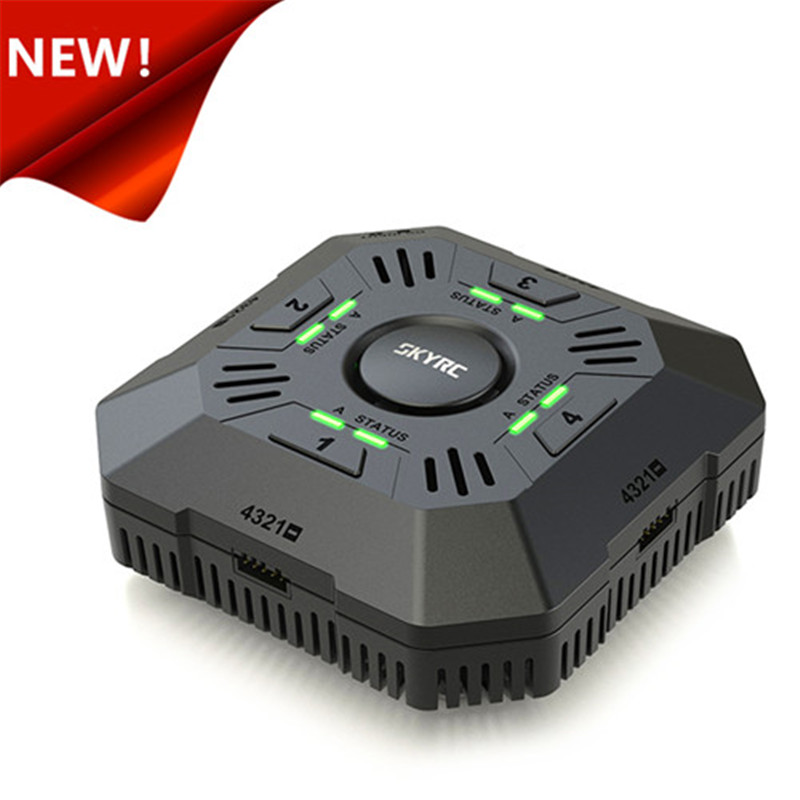

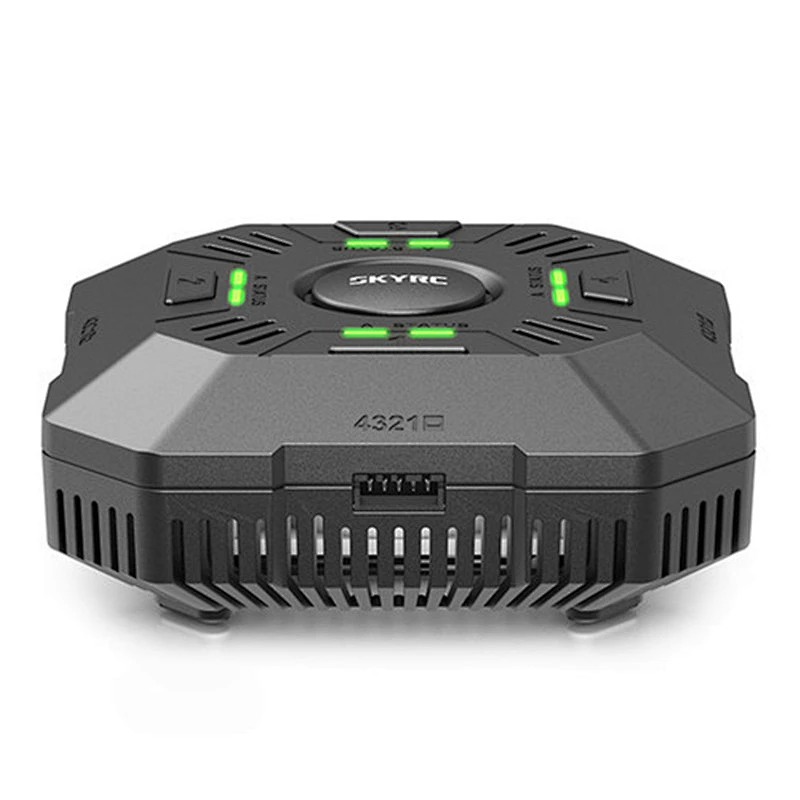

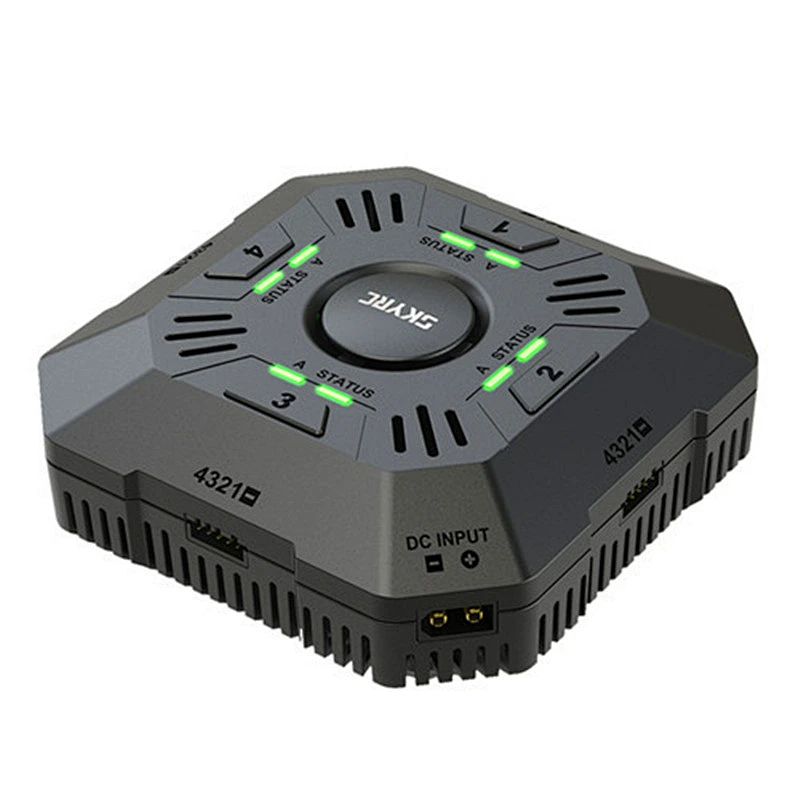

This product is a special LiPo battery balance plug charger, which can charge 2S/3S/4S LiPo battery in 4 channals simultaneously. The main power supply is DC input, the port adopts XT60 type, the output port adopts special design interface, and the three kinds of batteries do not need Transfer board. Can be plugged in directly.
- DC Input:11-26.1V
- Charge Circuit Power:4 x 50W ±10%
- Charging model:balance charging
- Charge Current Range:2A/3A/5A
- Charge saturation voltage:4.20V±0.02V/CELL
- Balance current:Max 400mA/CELL

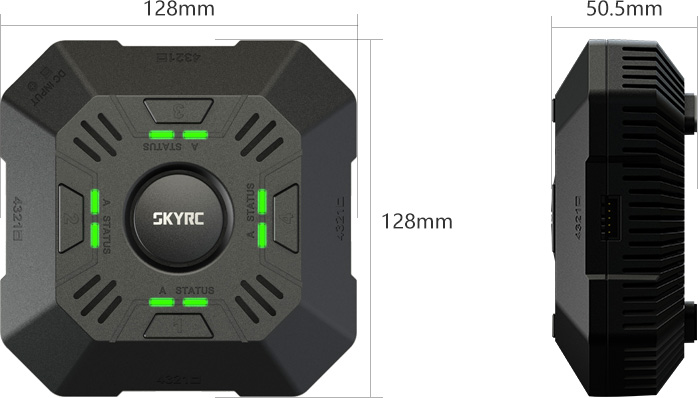

- Dimension:128x128x50.5mm
- Net Weight:280g
- Website:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:skyrc
- Model Number:SK-E40
Product Description
DC Input: | 11-26.1V |
Charge Circuit Power: | 4 x 50W ±10% |
Charging model: | balance charging |
Charge Current Range: | 2A/3A/5A |
Charge saturation voltage: | 4.20V±0.02V/CELL |
Balance current : | Max 400mA/CELL |
Dimension： | 128x128x50.5mm |
Net Weight： | 280g |
Operating temperature: | 0℃-40℃ |
Operating humidity: | 0%-75% |
storage temperature: | -10℃-70℃ |
Storage humidity: | 0%-75% |
Details Images

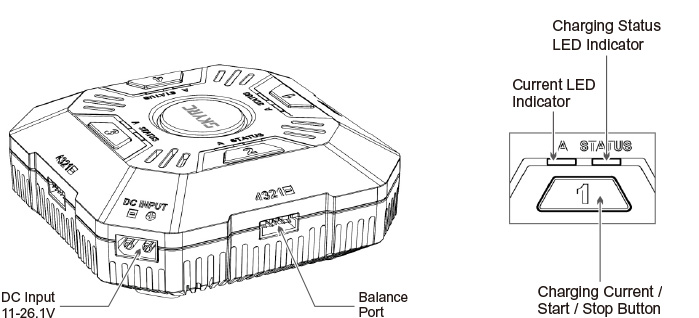

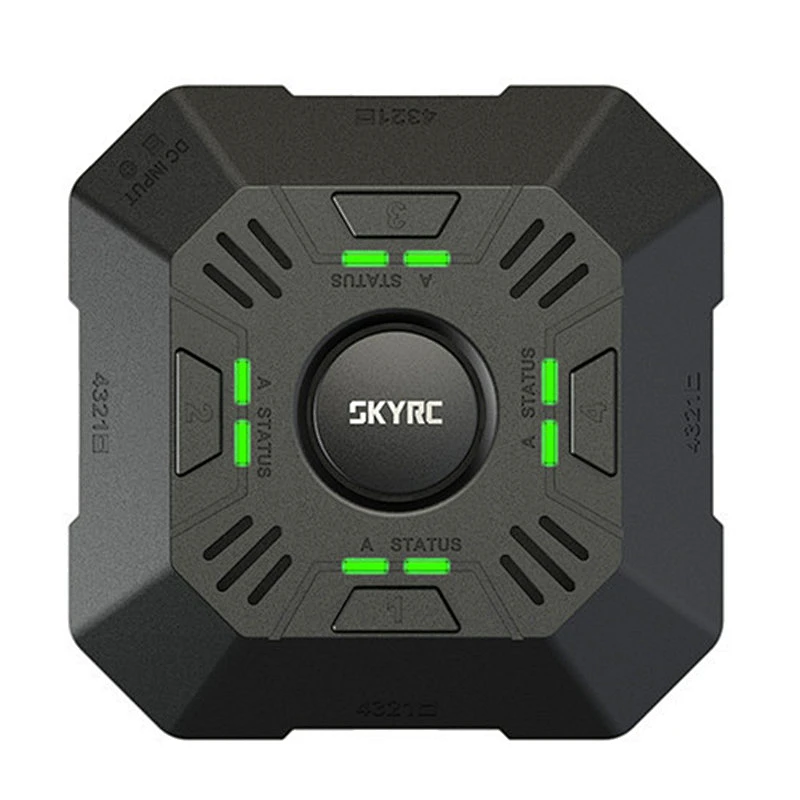

LED light charging current display
The first three-color LED lights represent Ampere (A)
The first three-color LED lights represent Ampere (A)
Green light(Charging current is 2A)
Yellow light(Charging current is 3A)
Red light(Charging current is 5A)
Product Usage
The second tri-color LED light represent capacity (%)
LED light standby status indication:Not bright
LED light charging instructions: According to the power, the red light to the green light,And do breathing instructions
LED Light charge finished indication：Accompanied by the sound of the alarm, after 5 flashes,LED glows constant green
