- Sensor Type:Sony 1/3"CMOS Sensor
- Lens:1.8mm M8
- Scale:16:9
- Tv System:NTSC
- Resolution:1200TVL
- Shutter Speed:NTSC 1/30~1/10000 sec
- Video Output:CVBS Analog Signal
- FOV:16:9 FOV-H:125° FOV-D: 140°
- website:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:Foxeer
- Model Number:HS1242-N
Foxeer Razer Nano 16/9 NTSC 1200TVL Advanced Natural image 1/3 CMOS Low Latency M8 lens FPV Camera For RC Racing Drone
Features
Product Details
| Sensor Type: | Sony 1/3"CMOS Sensor |
| Lens: | 1.8mm M8 |
| Scale: | 16:9 |
| Tv System: | NTSC |
| Resolution: | 1200TVL |
| Shutter Speed: | NTSC 1/30~1/10000 sec |
| Video Output: | CVBS Analog Signal |
| FOV: | 16:9 FOV-H:125° FOV-D: 140° |
| Shutter Speed: | Auto |
| Minimum Illumination: | 0.01Lux |
| White Balance: | Auto |
| DNR: | 3DNR |
| WDR: | 90dB |
| Input Voltage: | 4.5V~7V |
| Working Temperature: | -10°~50°C RH90% MAX |
| Working Humidity: | 20~80% |
| Storage Temperature: | -20°~70°C |
| Dimension: | 14*14mm |
| Weight: | 3.9g(Exclude cable) |

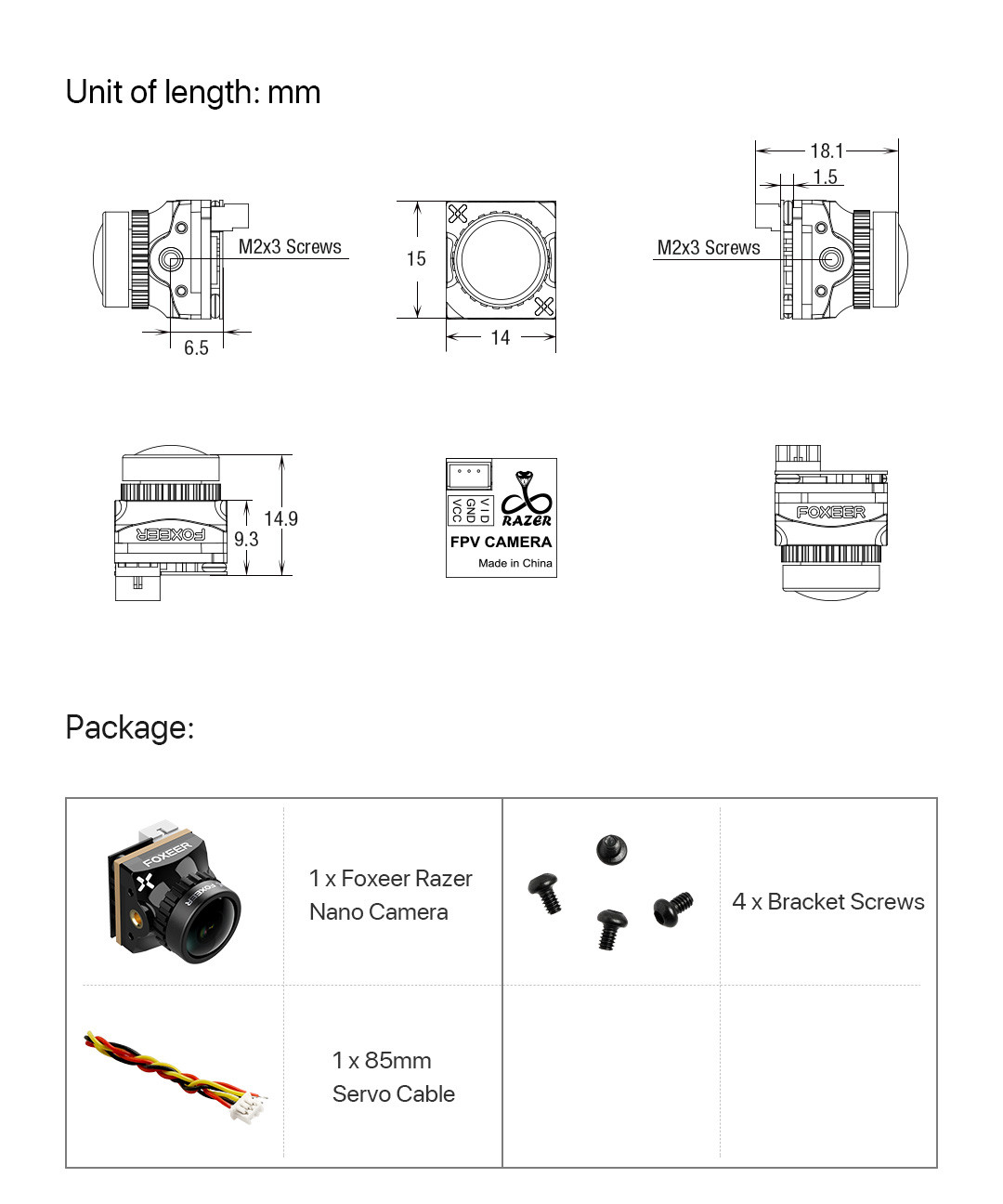

Detailed Images

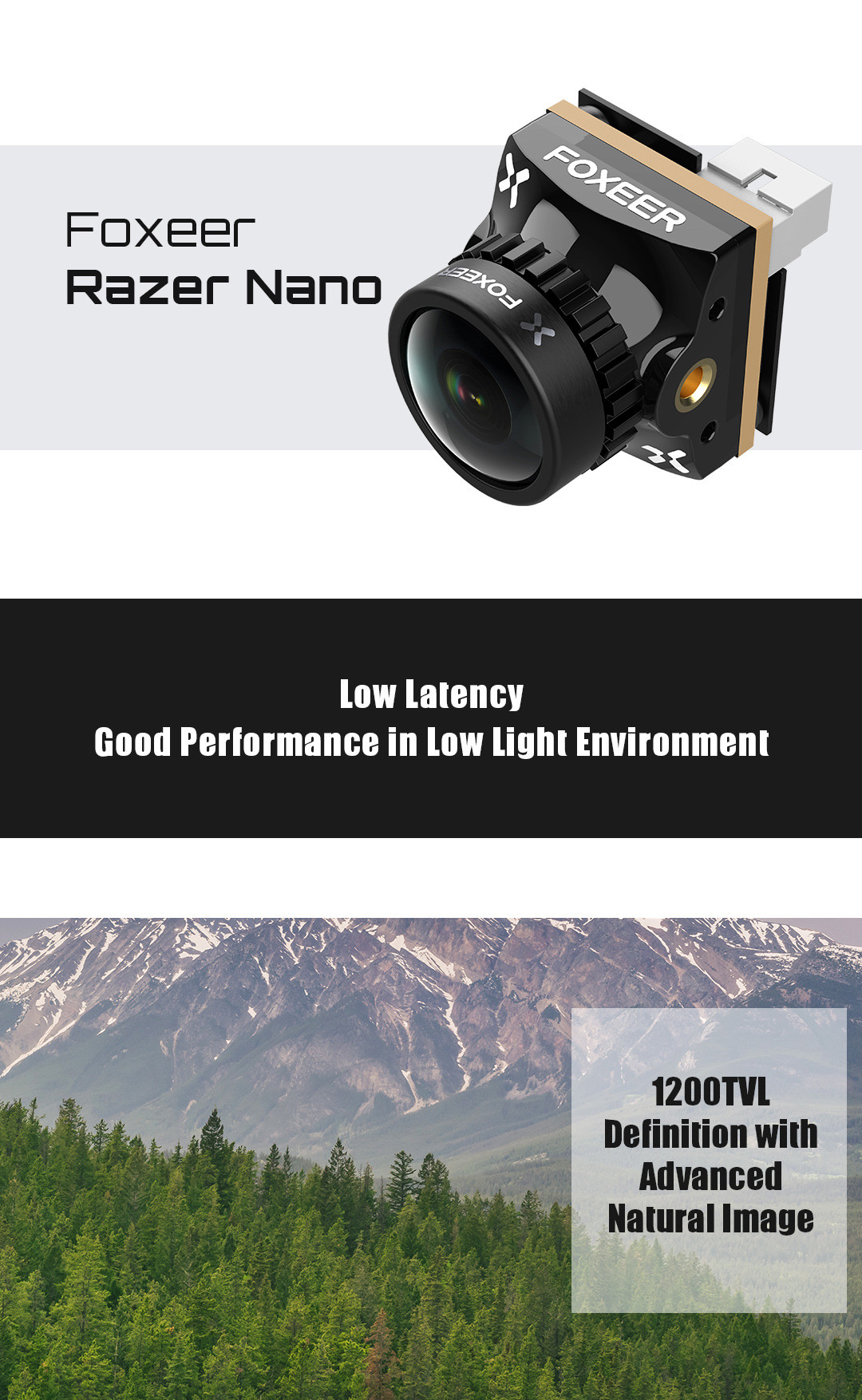

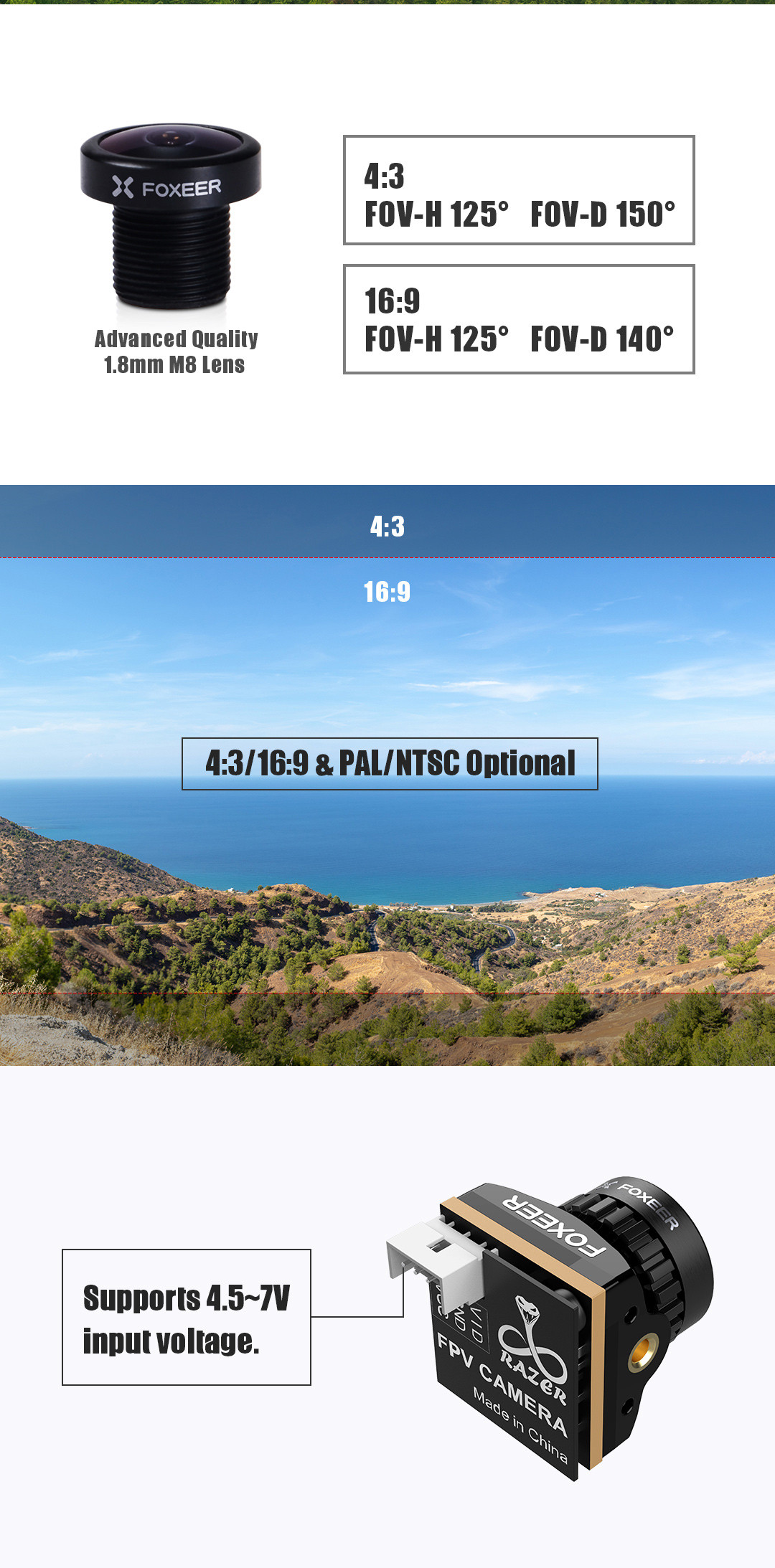

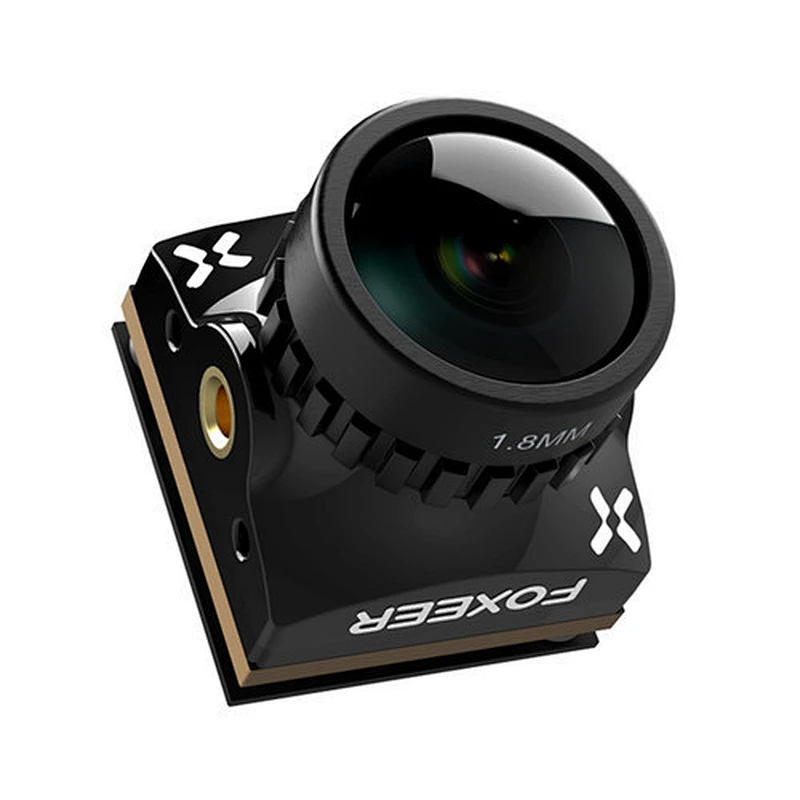

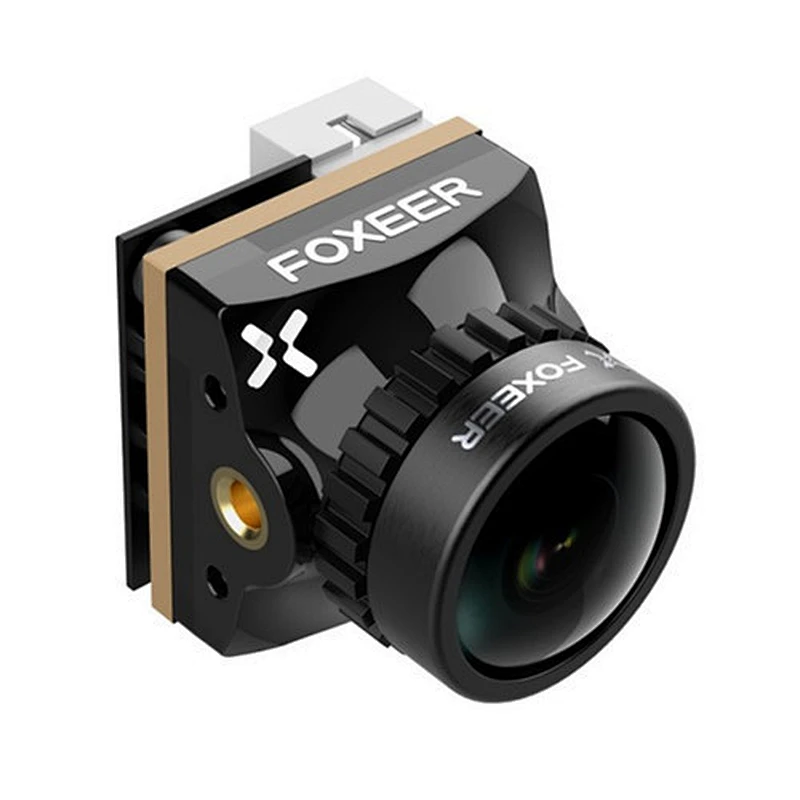

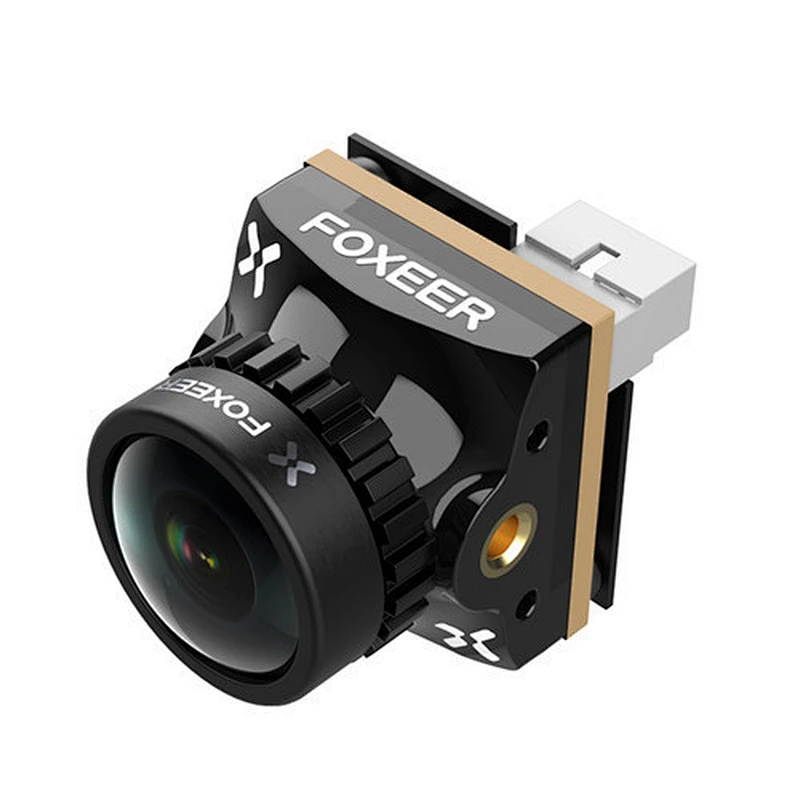

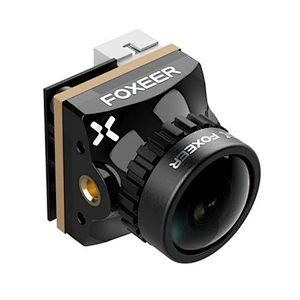

Product Picture
Item Packing
Foxeer Razer Nano Camera x 1
Servo Cable x 1
Screws x 1
