- Processor:STM32F405RGT6
- Gyro:ICM20602
- OSD:AT7456E
- Onboard memory (black box):16MB
- Input voltage:8.4-50V (recommended 2-6S)
- BEC output:5V/2A
- Mounting hole distance:30.5 mm
- Weight:7g (without cable)
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN
- Brand Name:T-MOTOR
- Model Number:XP601
Features
Performance characteristics:
6 hardware serial ports
The highest 50V voltage power chip reliability is high
With LC filtering, with a certain filtering interference ability, can improve camera clarity
Support Fport, can transfer flight data to the remote control
Support OSD control, you can quickly switch parameters through the camera
On-board FLASH chip, you can store flight data without external SD card
More expansion interfaces, support I2C, barometer, GPS, etc.
Component layout for F55A optimization, low height after stacking
6 hardware serial ports
The highest 50V voltage power chip reliability is high
With LC filtering, with a certain filtering interference ability, can improve camera clarity
Support Fport, can transfer flight data to the remote control
Support OSD control, you can quickly switch parameters through the camera
On-board FLASH chip, you can store flight data without external SD card
More expansion interfaces, support I2C, barometer, GPS, etc.
Component layout for F55A optimization, low height after stacking
Product Detail
Processor: STM32F405RGT6
Gyro: ICM20602
Barometer: none
OSD: AT7456E
Onboard memory (black box): 16MB
Input voltage: 8.4-50V (recommended 2-6S)
BEC output: 5V/2A
Mounting hole distance: 30.5 mm
Weight: 7g (without cable)
Gyro: ICM20602
Barometer: none
OSD: AT7456E
Onboard memory (black box): 16MB
Input voltage: 8.4-50V (recommended 2-6S)
BEC output: 5V/2A
Mounting hole distance: 30.5 mm
Weight: 7g (without cable)

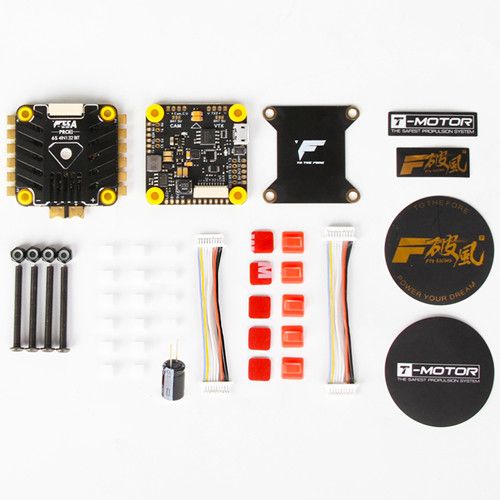

Item Packing
F4 Flight Controller x 1
F55A PRO II 6S 4 In 1 ESC x 1
F55A PRO II 6S 4 In 1 ESC x 1
Detailed Images
