- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:HiTec
- Model Number:HS-311
Shenzhen Feetech Model Co., Ltd
Features

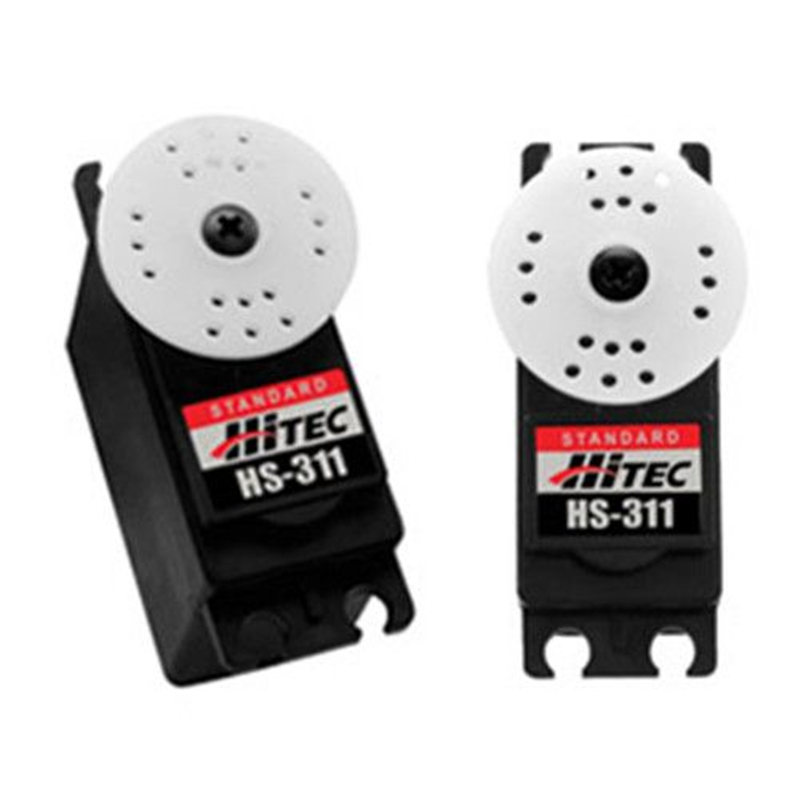

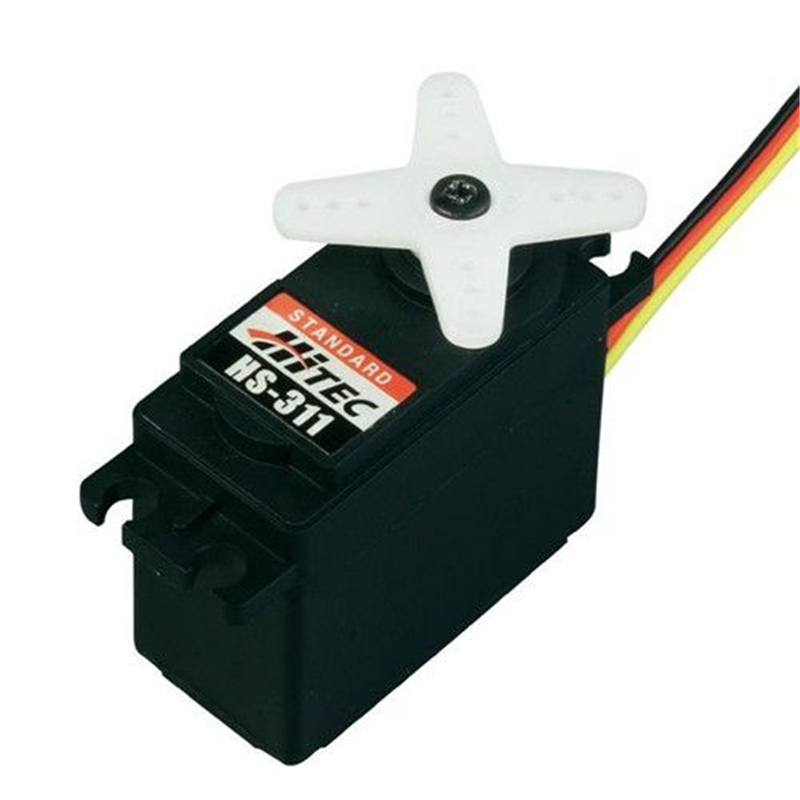

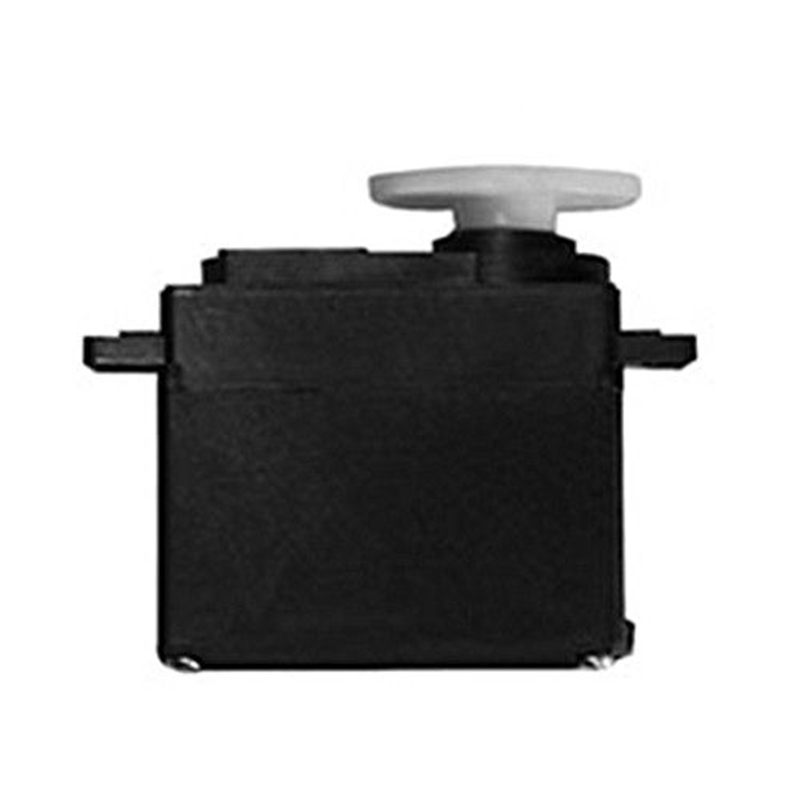

The HS-311 sport servo provides the novice modeler all the performance and reliability you would expect to find in a more
expensive servo. Combined with precise resin gears and SMT circuitry, the HS-311 represents a remarkable value in today's R/C
market.
expensive servo. Combined with precise resin gears and SMT circuitry, the HS-311 represents a remarkable value in today's R/C
market.
Product Details
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.19 ~ 0.15
Maximum Torque Range oz. / in.: 42 ~ 49
Maximum Torque Range kg. / cm.: 3.0 ~ 3.5
Current Draw at Idle: 7.7 mA
No Load Operating Current Draw: 180 mA
Stall Current Draw: 800 mA
Dead Band Width: 5 µs
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Nylon
Bearing Type: None
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 25 / 40

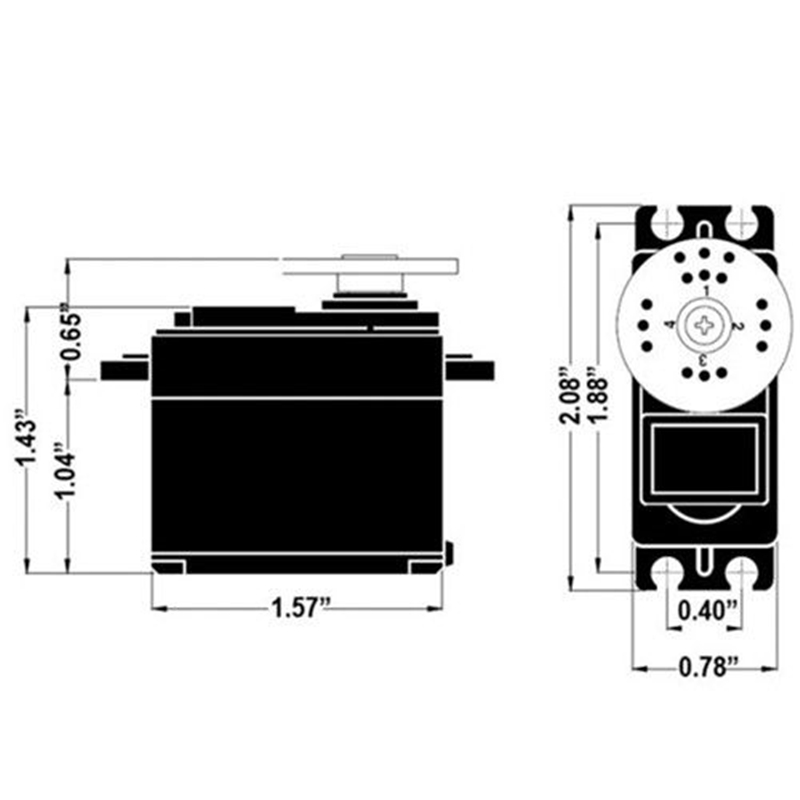

Dimensions (Inches): 1.57 x 0.78 x 1.43
Dimensions (Metric): 40.0 x 20.0 x 36.5
Weight (Ounces): 1.51
Weight (Gram): 43.0
Speed (Second @ 60°): 0.19 ~ 0.15
Maximum Torque Range oz. / in.: 42 ~ 49
Maximum Torque Range kg. / cm.: 3.0 ~ 3.5
Current Draw at Idle: 7.7 mA
No Load Operating Current Draw: 180 mA
Stall Current Draw: 800 mA
Dead Band Width: 5 µs
Circuit Type: HT7003 Analog SMT
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Nylon
Bearing Type: None
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: N / A
Connector Gauge (AWG) / Strand Count: 25 / 40
Dimensions (Inches): 1.57 x 0.78 x 1.43
Dimensions (Metric): 40.0 x 20.0 x 36.5
Weight (Ounces): 1.51
Weight (Gram): 43.0
Detailed Images
