- Micro servo 9g:for MINI ROBOT
- metal gears:for RC airplane
- Bearring:2BB
- Color:Black
- Product name:MINI ROBOT SERVO
- Certificate:ROHS
- Function:Control direction
- Description:Digital Metal Gears Servo
- control system:PWM Control
- torque:1.8kg
- Type:Car
- Power:Battery
- Material:METAL
- Plastic Type:ABS
- Scale:1:10
- Radio Control Style:RC Model
- Place of Origin:CN;GUA
- Brand Name:fitec
- Model Number:FT90M

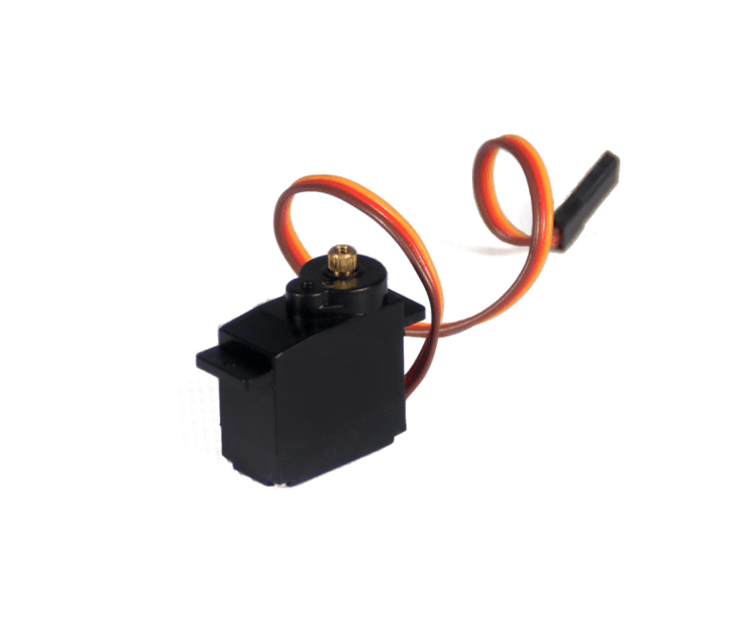

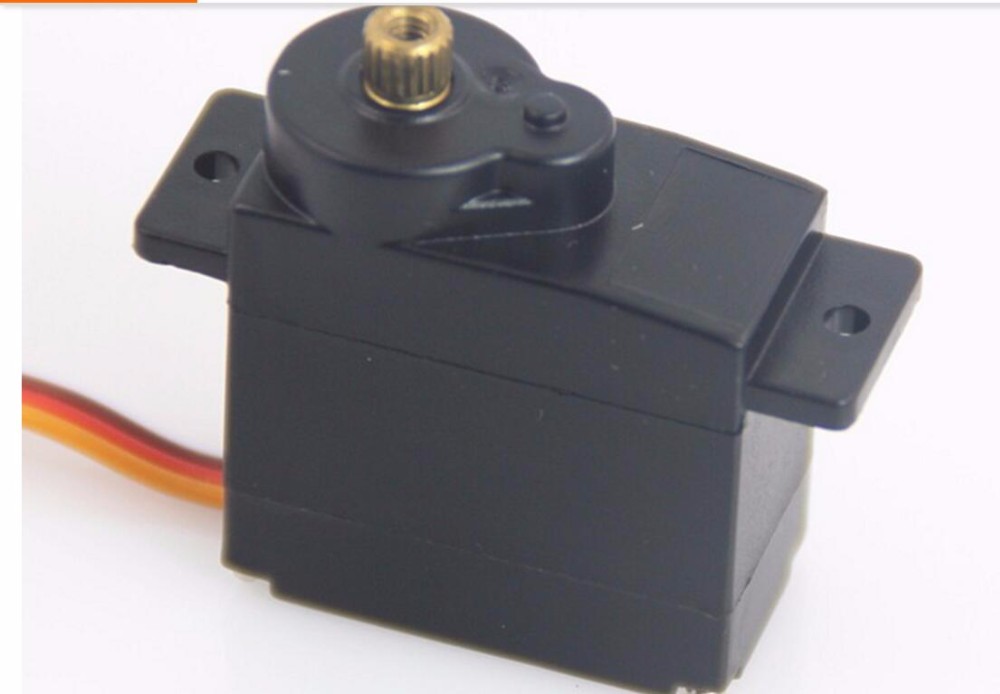

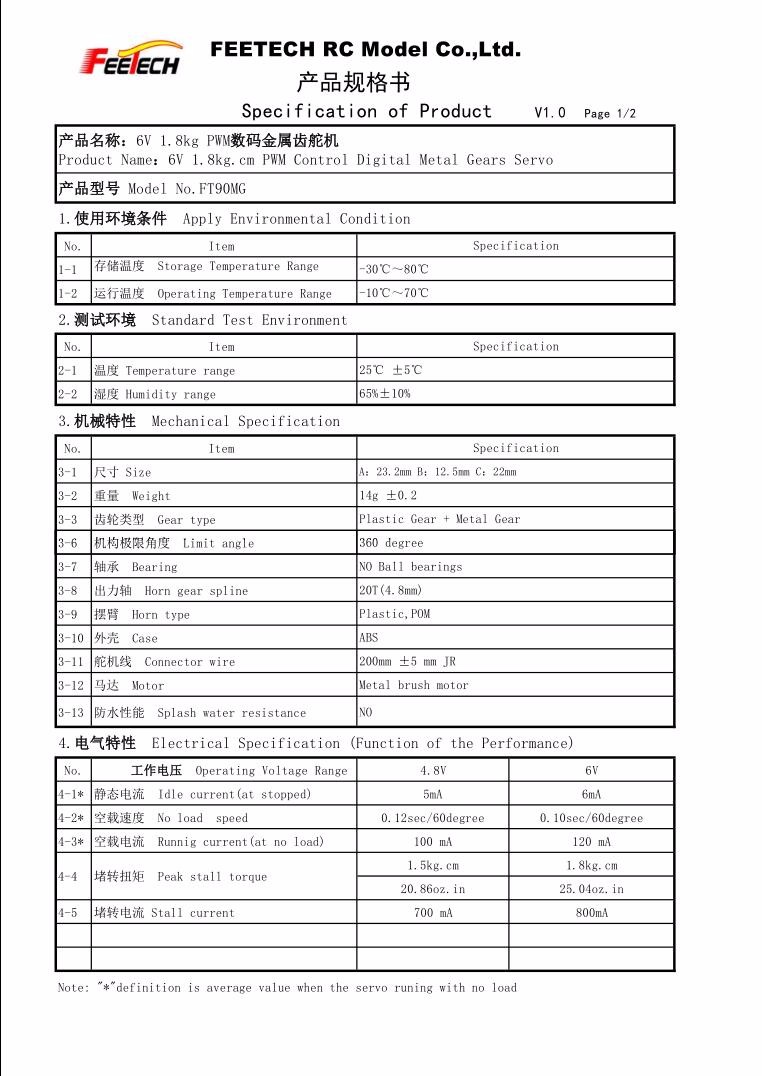

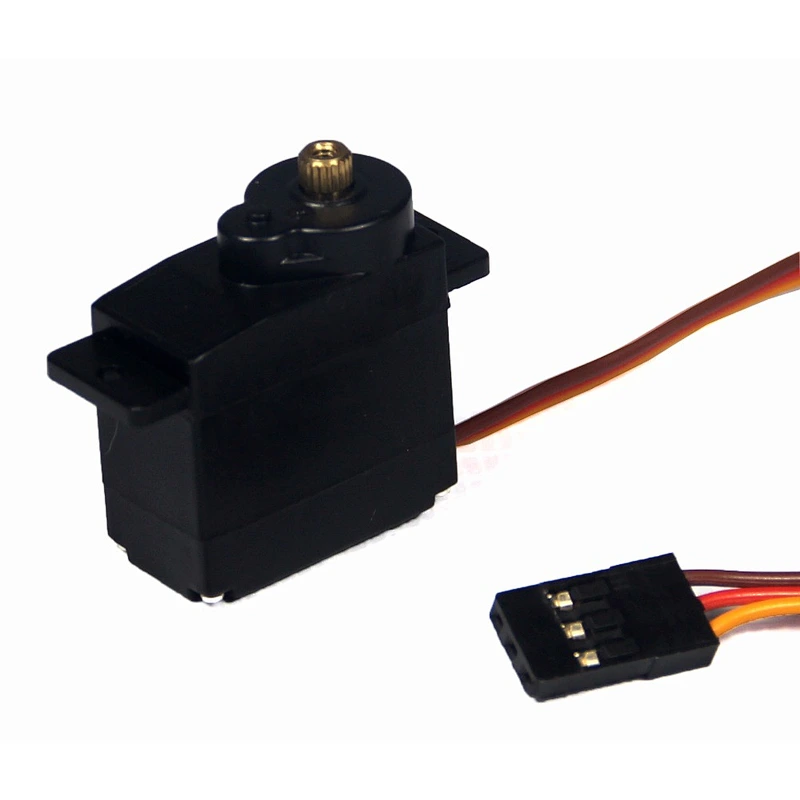

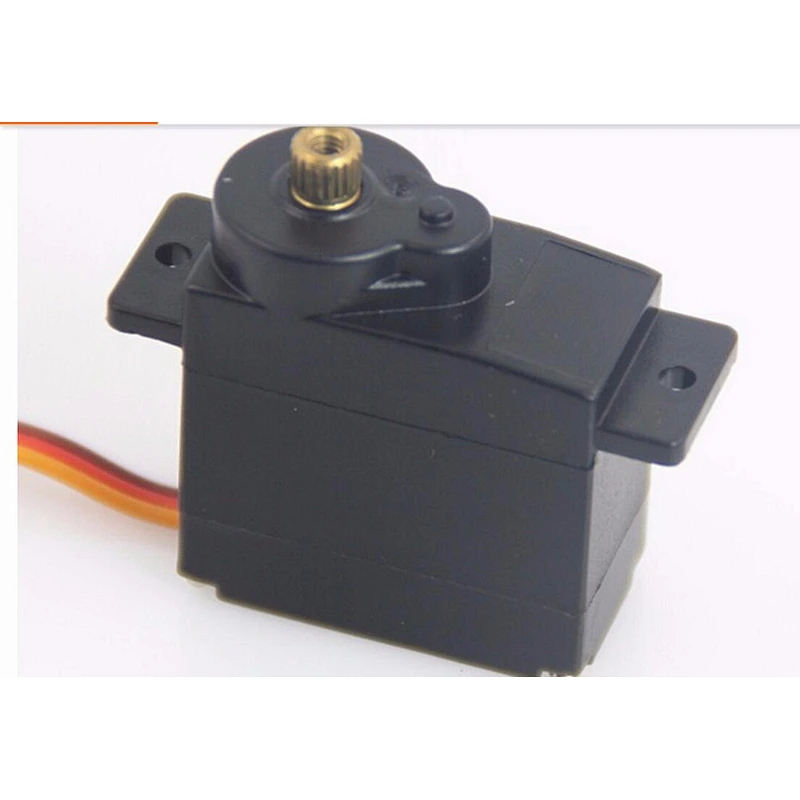

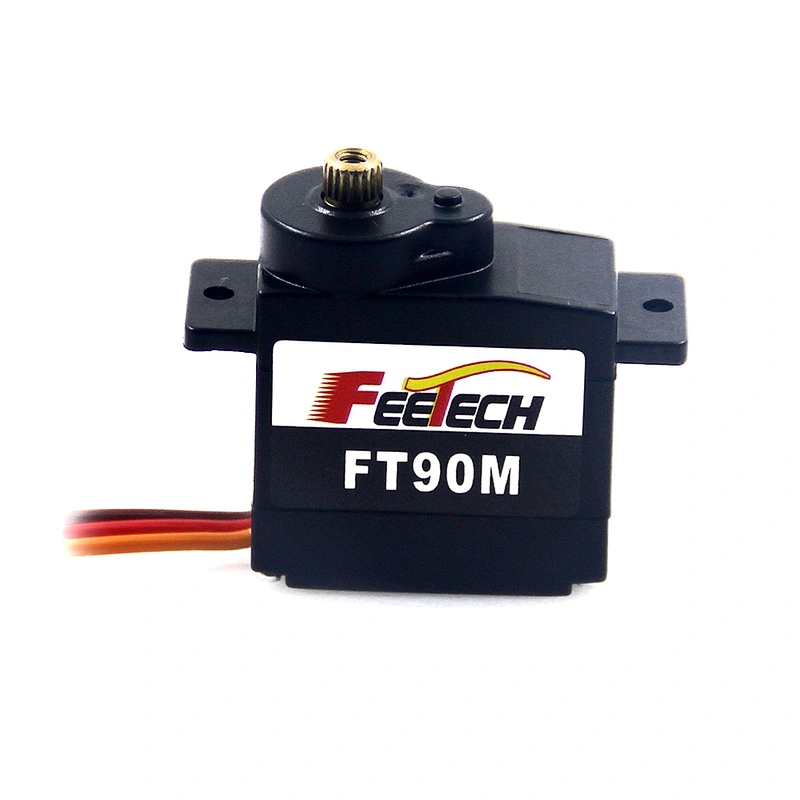

FEETECH FT90M 9G 1.8kg.cm PWM Control Digital Metal Gears Servo

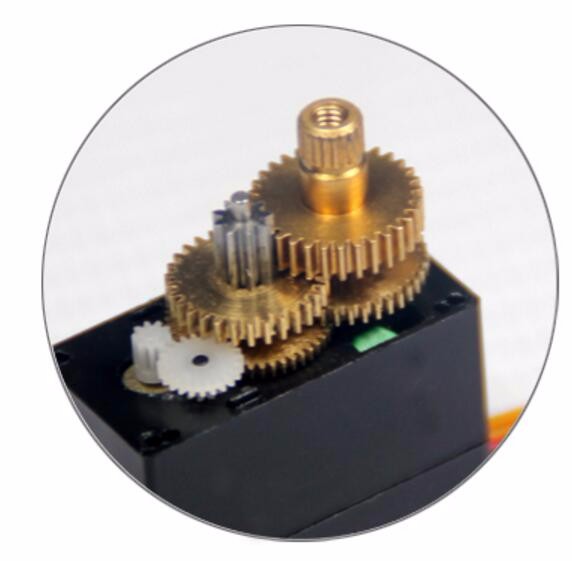

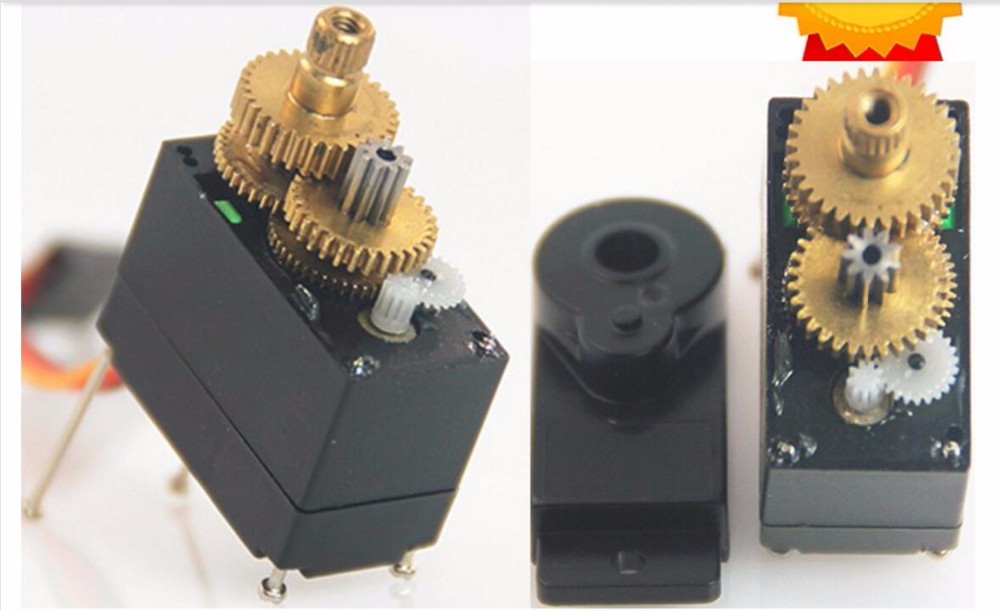

1.metal gear robot servo
2.2BB
3.Operating Voltage:4.8-6Volts
4.Interface: (like JR)
5.Application: robot
-Micro digital metal gears servo
-Operating Voltage:4.8-6Volts
-Interface: (like JR)
-Wire length: 20cm
Power | 4.8V | 6V |
| Speed | 0.12sec/60° | 0.10sec/60° |
| Torque | 1.5kg.cm/20.87oz.in | 1.8kg.cm/25.04oz.in |
| Weight | 14g(0.49oz) |
| Size | 23.2*12.5*22.0mm |
| Application | Air plane, mini robot |

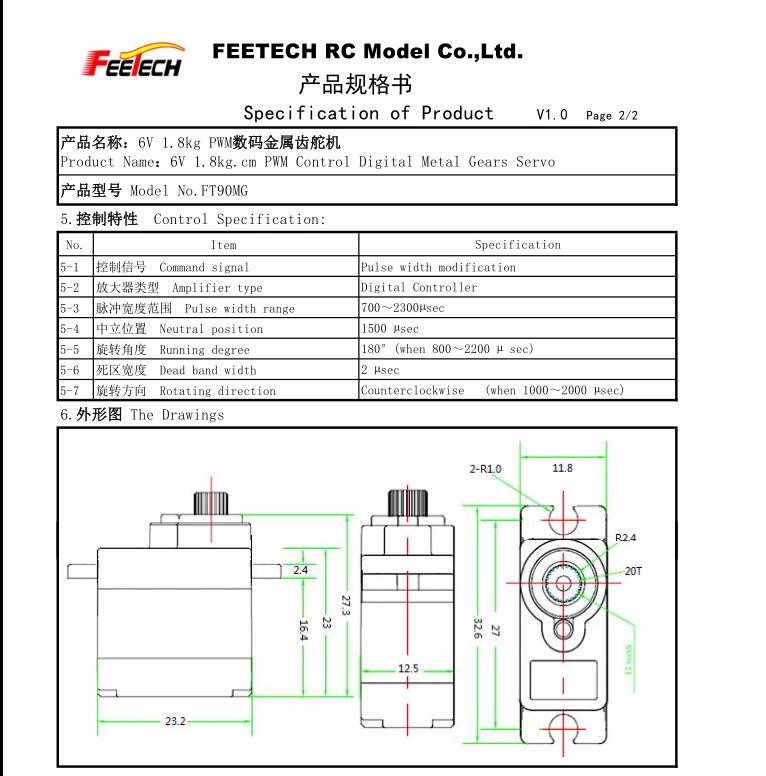

Abmessungen:
A: 30,5mm
B: 23,2mm
C: 27,5mm
D: 12,5mm
E: 32,7mm
F: 16,2mm
Full Packaged
-Servo×1PCS

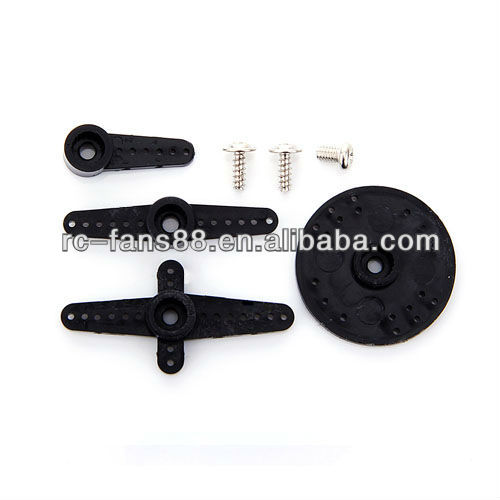

-Servo arm×1 bag
-GW:18g
