- Type:1 / 10th full waterproof sense brushless
- Cont./Peak Current:120A/830A
- Input:2-4S LiPo/6-12 Cells NiMH
- BEC Output:Switch Mode:6V/7.4V,4A
- Brushed/Brushless:BL
- website:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:Hobbywing
- Model Number:MAX10-SCT

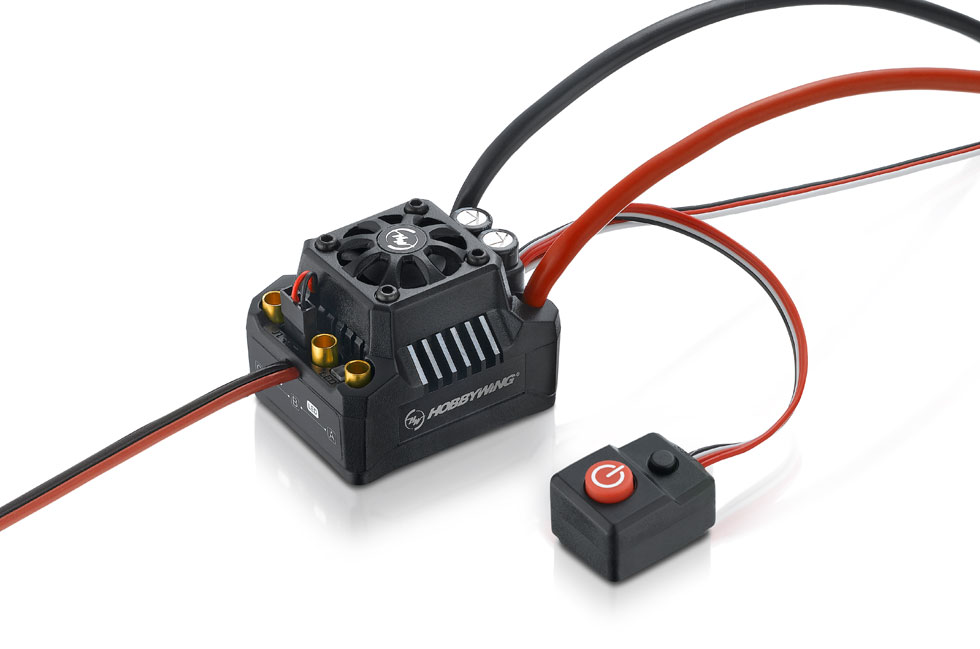

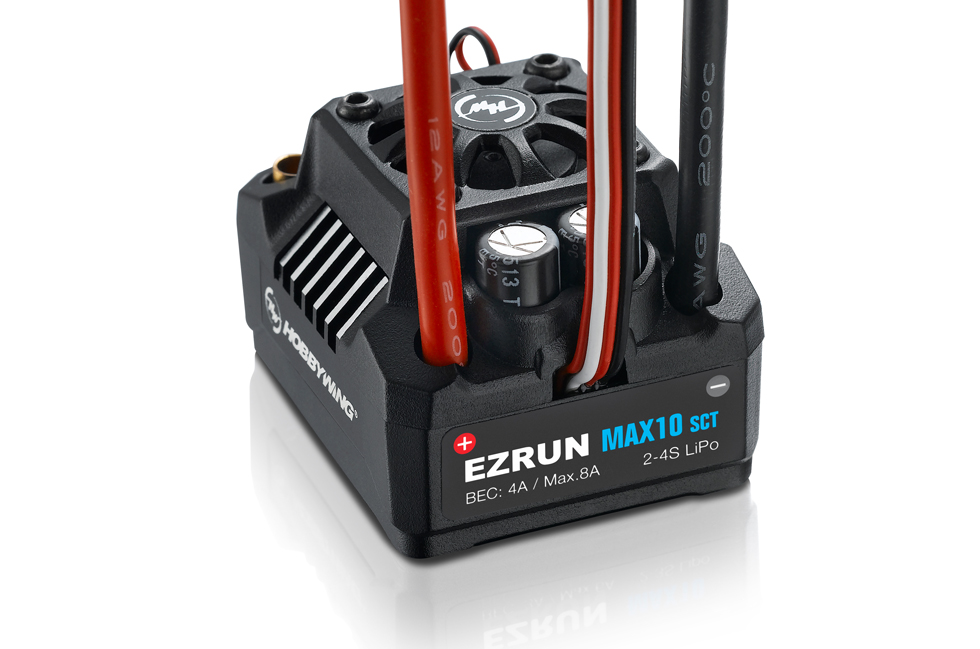

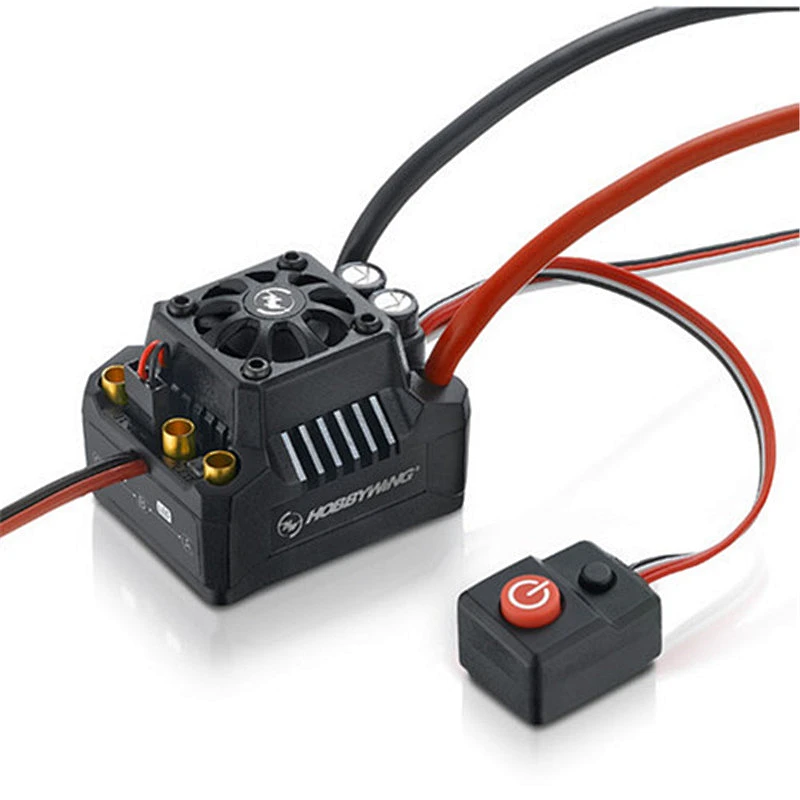

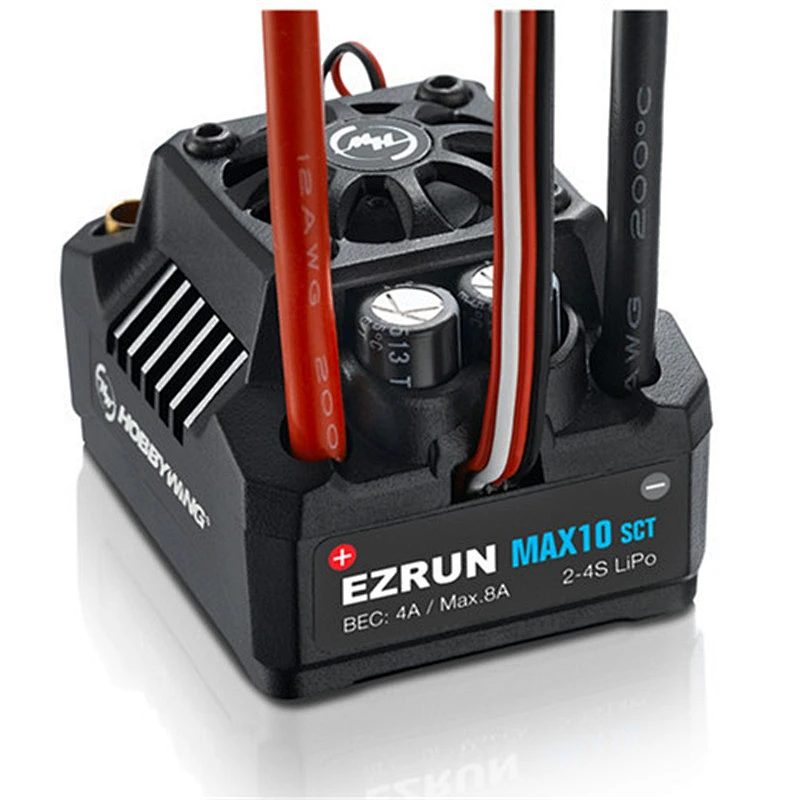

Hobbywing EZRUN MAX10-SCT 120A 2-4S LiPo Full Waterproof Brushless ESC for 1/10 Rc Car Truck
Features

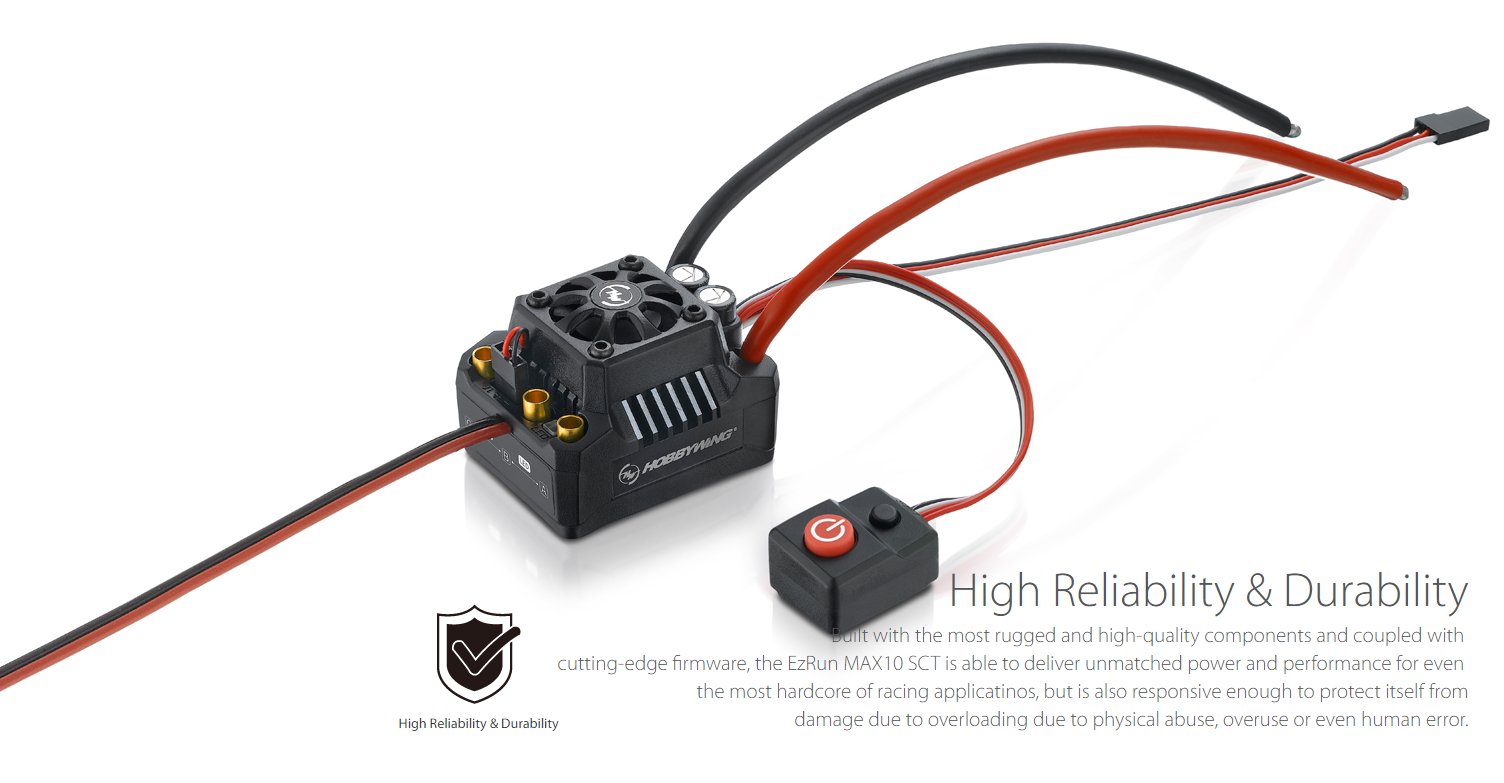

1. Solid hardware foundation combined with more advanced software that allows the ESC to provide extreme violence
While the output power, both real-time multi-overload protection, significantly reduced high
Probability load ESC damage, reliability and durability is greatly improved
2. ESC has a powerful explosive and stable output power for a vehicle to easily complete a variety of actions
Whether the rise of violent start, straight line speed, flying slope, etc., are more than enough power. Simultaneously,
Players can also adjust the power transfer parameters, resulting in smooth and supple effect of the low-speed start.

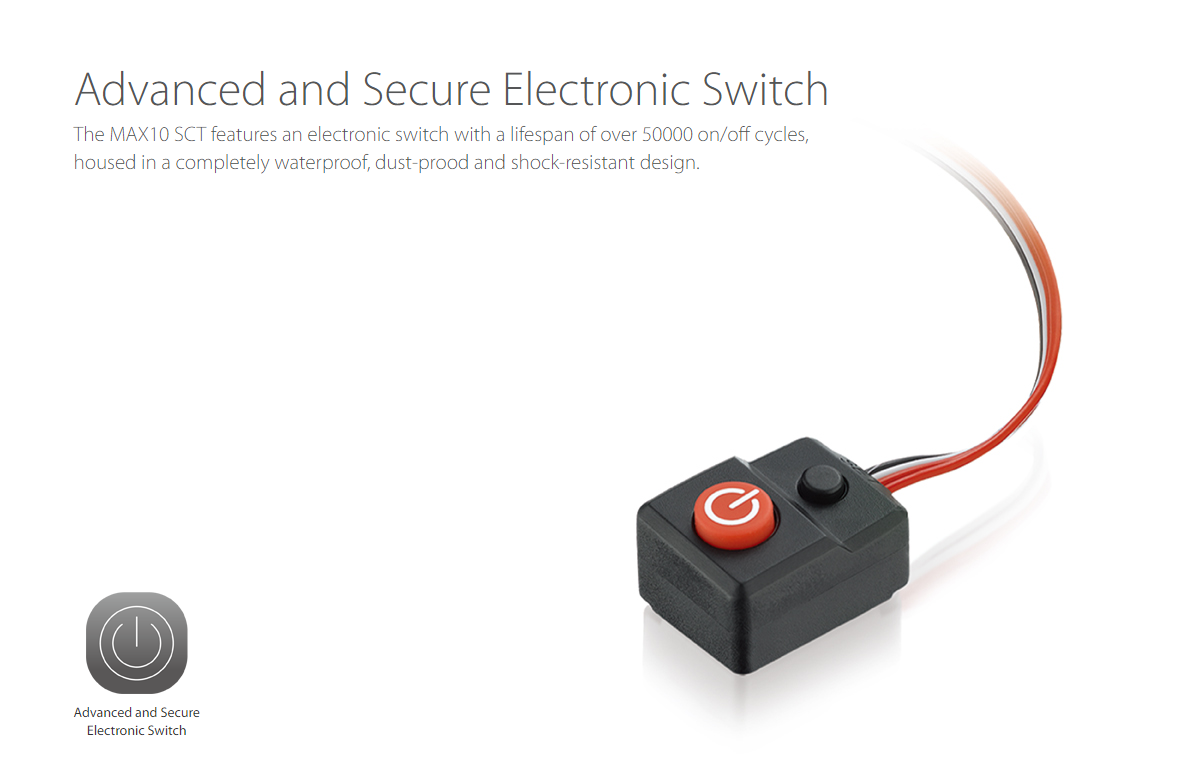

3. Electronic switch life is more than 50,000 times, waterproof, dustproof, shock-resistant, completely solve the traditional
Mechanical switch in dusty, humidity and other harsh environments prone reed stuck, contact corrosion,
As well as due to severe impact (flying landing slope) caused by mechanical switches automatically turn off other issues.

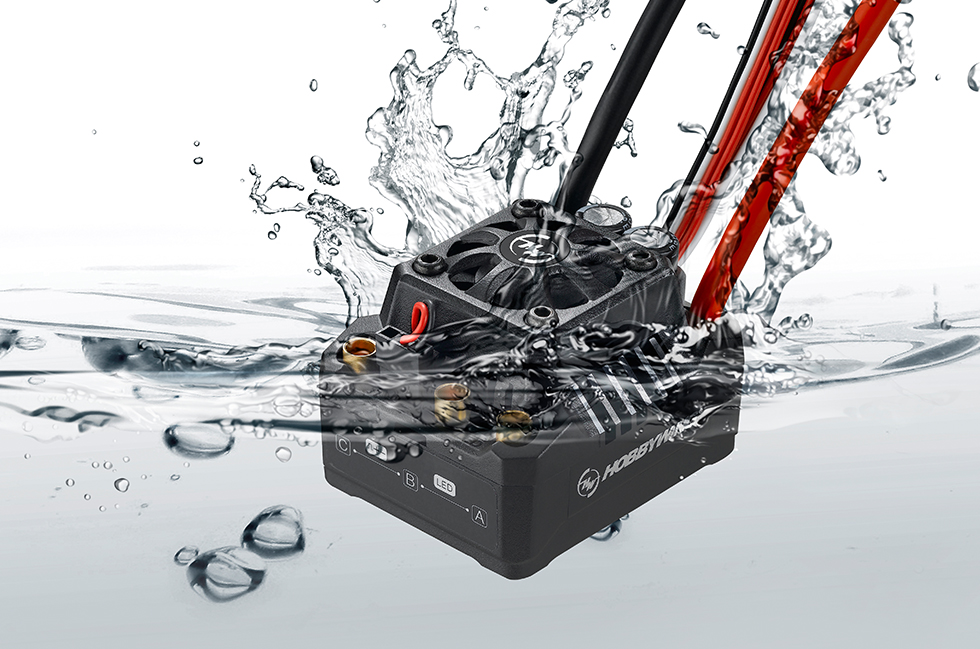

4. Excellent waterproof and dustproof performance in all weather conditions,
Easy to deal with complex road containing sand, snow, hydrocephalus.

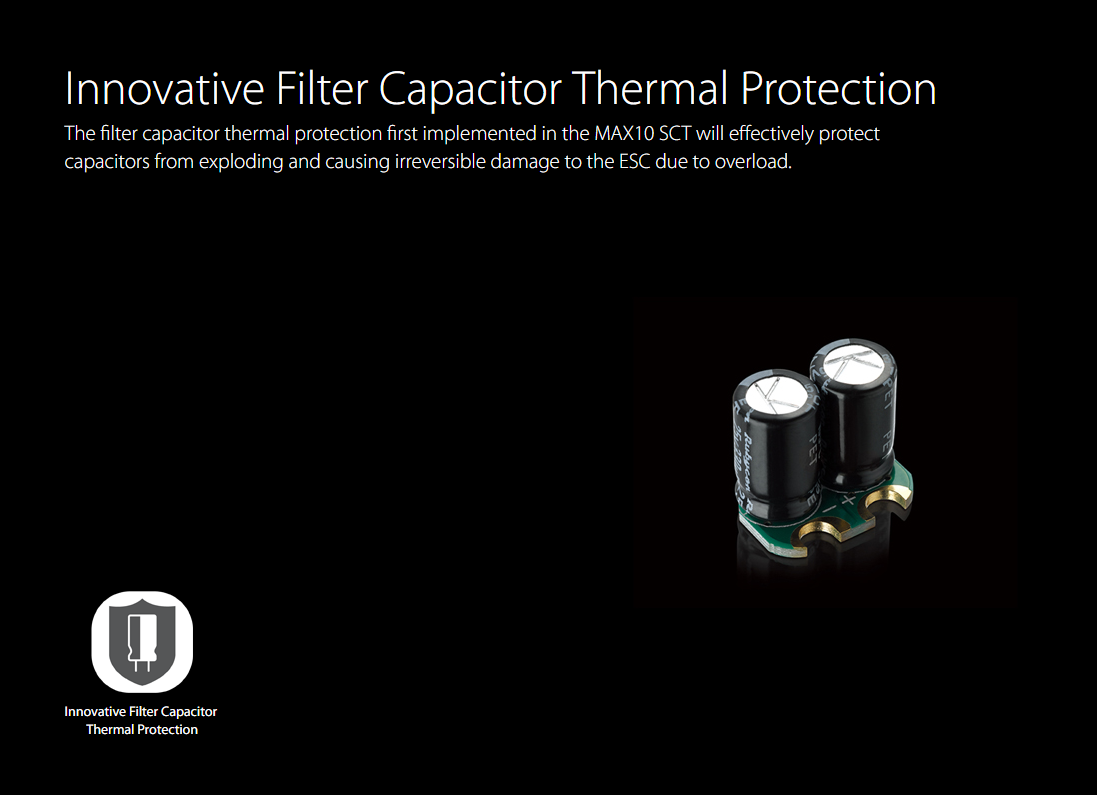

5. Filter capacitor in the RC industry's first thermal protection, this additional protection is effective
Customer avoid overload resulting from the use of explosive capacitance, which resulted in the ESC completely damaged.
6. ESC support firmware upgrade
What is the Details of our Product?

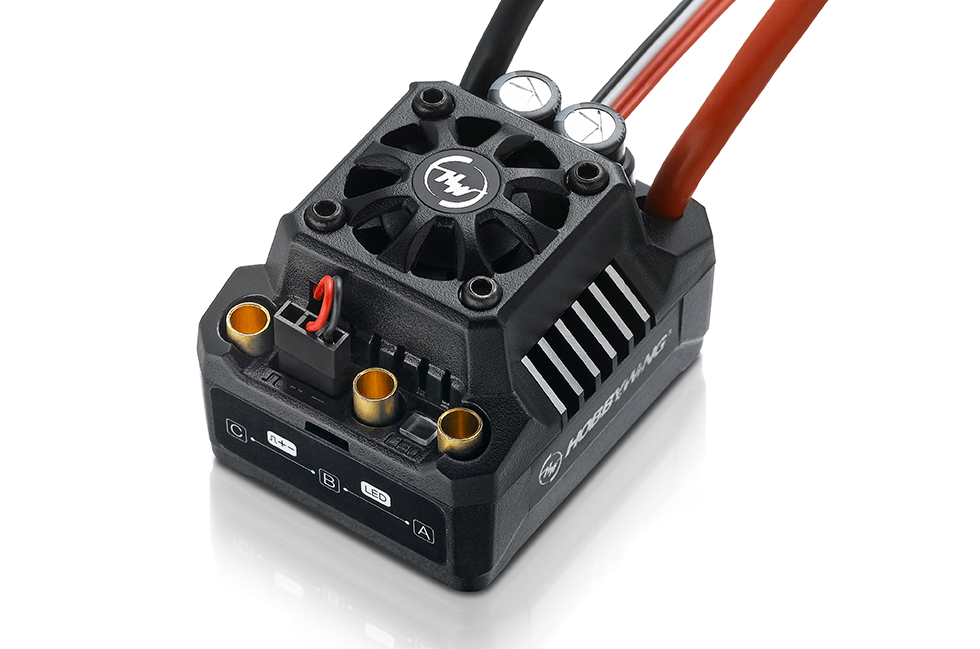

Product Name: EzRun MAX10 SCT
Product Number: 30102601
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SL
Waterproof: Yes
Cont./Peak Current: 120A/830A
Input: 2-4S LiPo/6-12 Cells NiMH
BEC Output: Switch Mode:6V/7.4V,4A
Input Wires: Red-12AWG-200mm*1/Black-12AWG-200mm*1

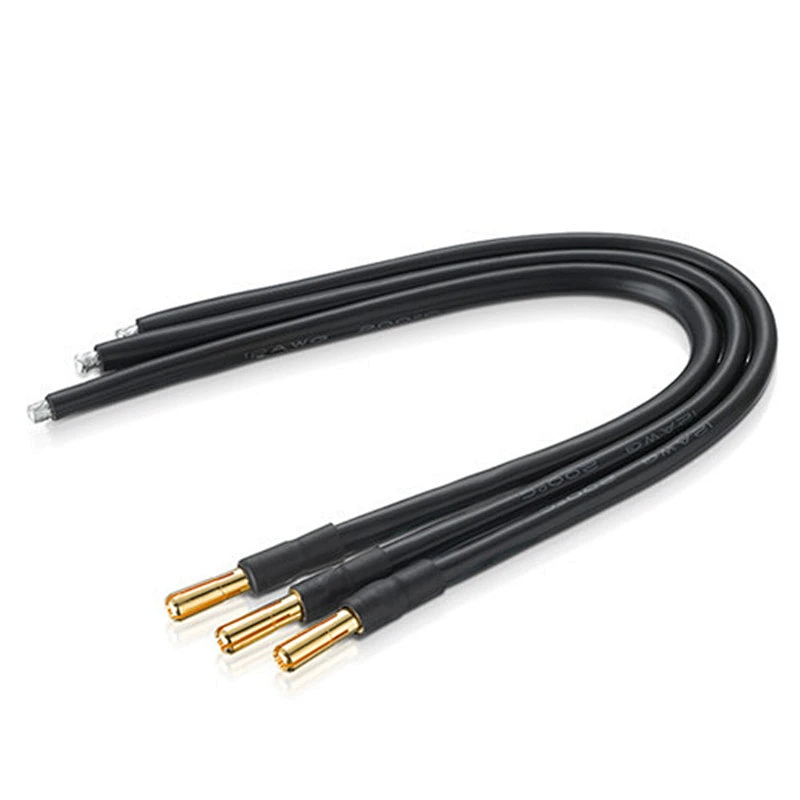

Output Wires: Black-12AWG-200mm*3
Input Connectors: No
Output Connecotors: 4.0 Bullet Connectors (Female)
(Note: All the wire length above is the original length not the length you see from the outside.)
Weight: 105g
Applications
Motors: SL BL Motors/SD BL Motors(only in SL mode)
Vehicles: 1/10thSCTs/Truck/Monster Truck
Fan
Size: 25.0x25.0x10.0mm
Voltage Range: 5-7.4V
Powered by: Powered by BEC
Detailed Images
Item Packing
EZRUN MAX10 SCT Brushless ESC X 1
