- Model:25kg B&BC-CAI Dual-axis Servo
- Control System:PWM
- Operating temperature range:-20℃ to +60℃
- Operating voltage range:6V-7V
- Test voltage:6.0V 7.0V
- Torque:22KG 25KG
- Dead zone width:2
- Working angle:120°±5°
- Website:Www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:feixiang
- Model Number:XP659
Tilt steering robot vertical take-off and landing drone VTOL pipe clamp 20mm Servo Motor Mount with 120degree dual axis Servo
Features
- Item name: Servo Mount
- Specs: for round tube 20mm
Note:
This product is suitable for the installation and fixation of dual axis servos with a market width of 40mm. If you have any questions, please contact customer service.
What is the Details of our Product?
Specifications
| - Model: | 25kg B&BC-CAI Dual-axis Servo |
| - Control System: | PWM |
| - Operating temperature range: | -20℃ to +60℃ |
| Operating voltage range: | 6V-7V |
| - Test voltage: | 6.0V 7.0V |
| - Torque: | 22KG 25KG |
| - Dead zone width: | 2 |
| - Working angle: | 120°±5° |
| - Direction: | Counterclockwise pulse 1000-1500-2000usec |
| - Drive method: | Field effect transistor drive |
| - Potentiometer: | Indirect transmission |
| - Amplifier type: | Numbers |
| - Product Size: | 40*40.5*20mm |
| - product weight: | 65g (without accessories) |
| - Ball bearing: | Double ball bearing |
| - Gear material: | Steel+copper |
| - Shell material: | Plastic+aluminum |
| - Cable length: | approx. 300mm |
| - Cable specifications: | 22AVG,FP JR Universal |
| - Brown/Black: | Negative - |

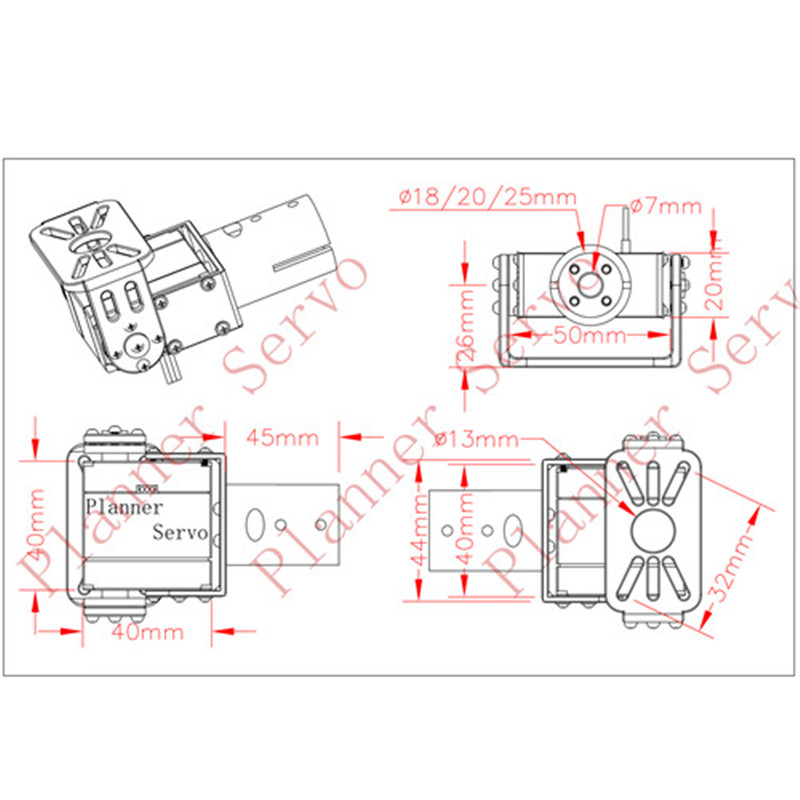

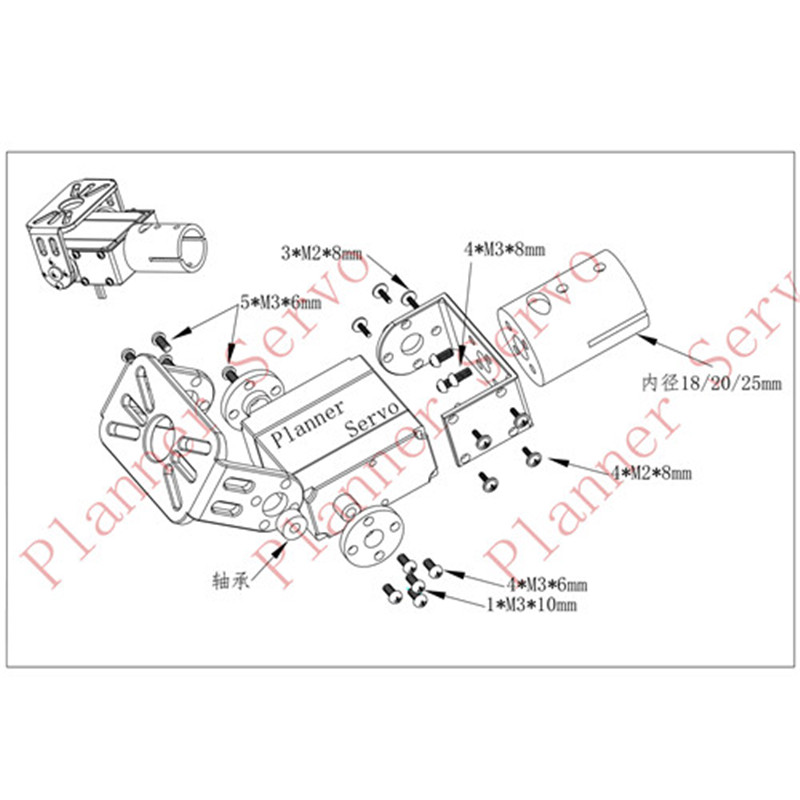

Detailed Images

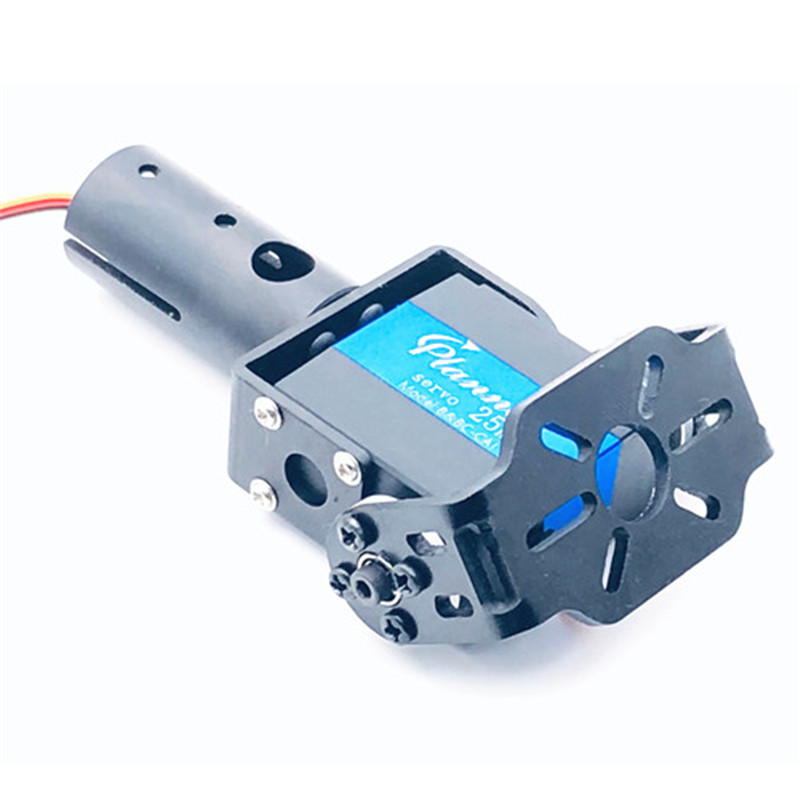

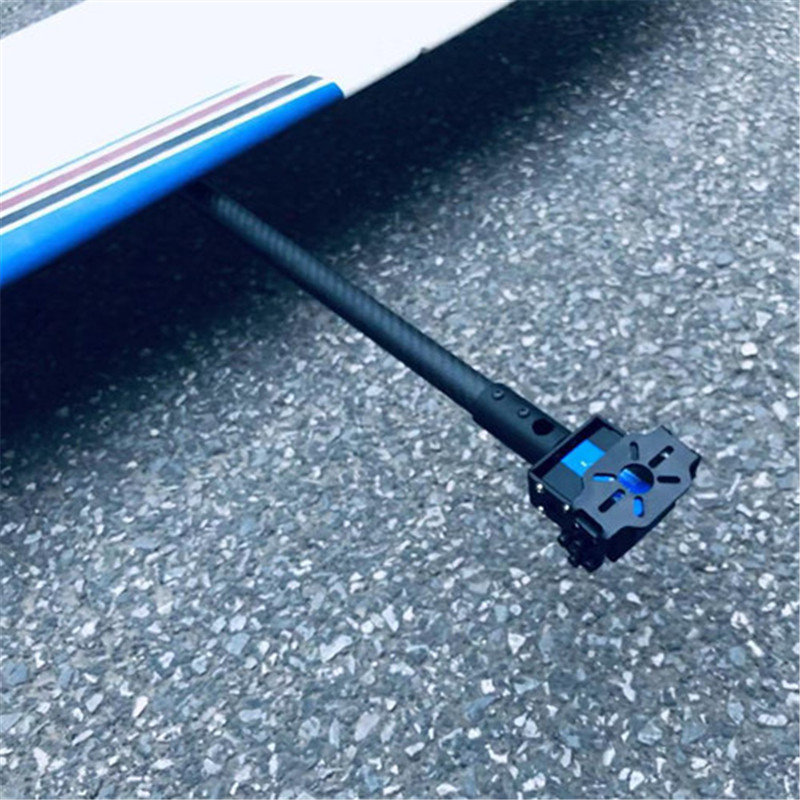

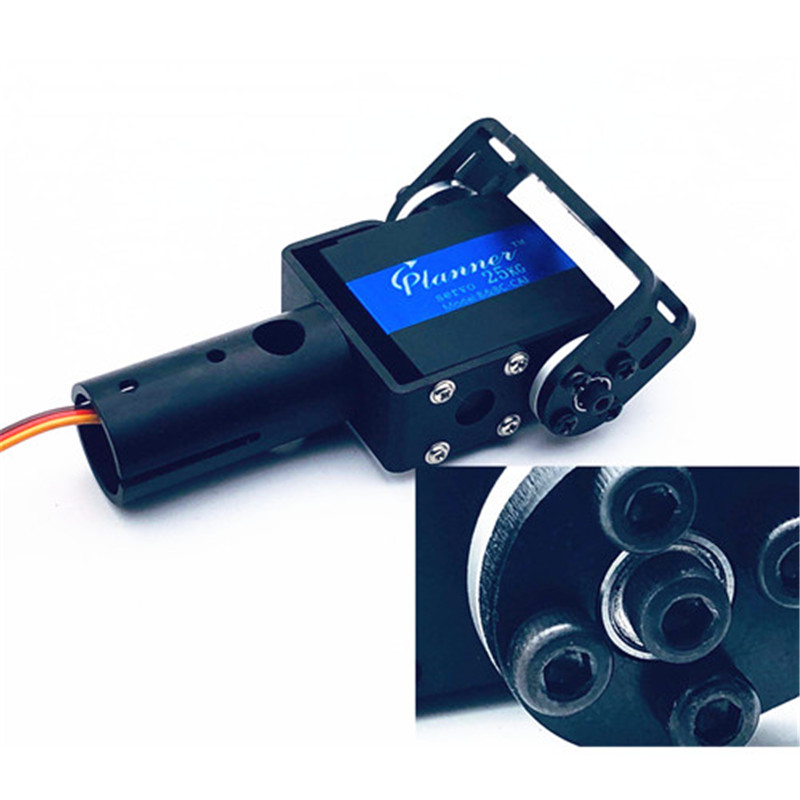

Product Picture
Item Packing
20mm mount w/ servo x 1
