- Style:Radio Control Toy
- Arduino:for ROBOT
- apply:educational kit
- Control System:analog
- degree:360

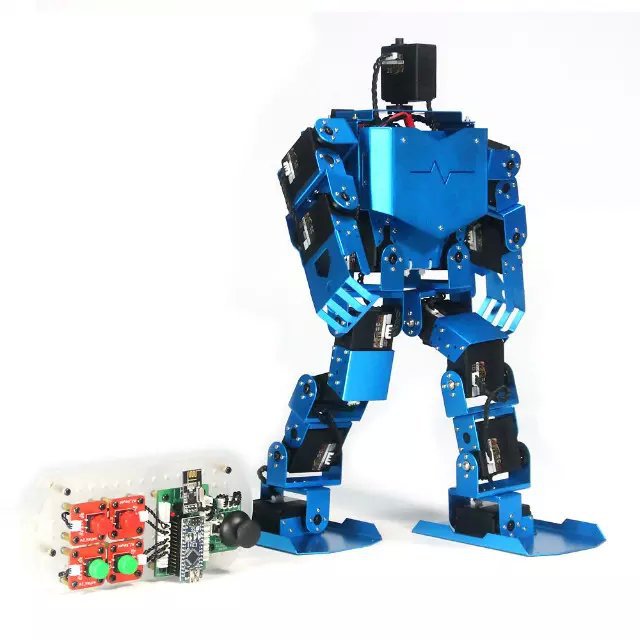

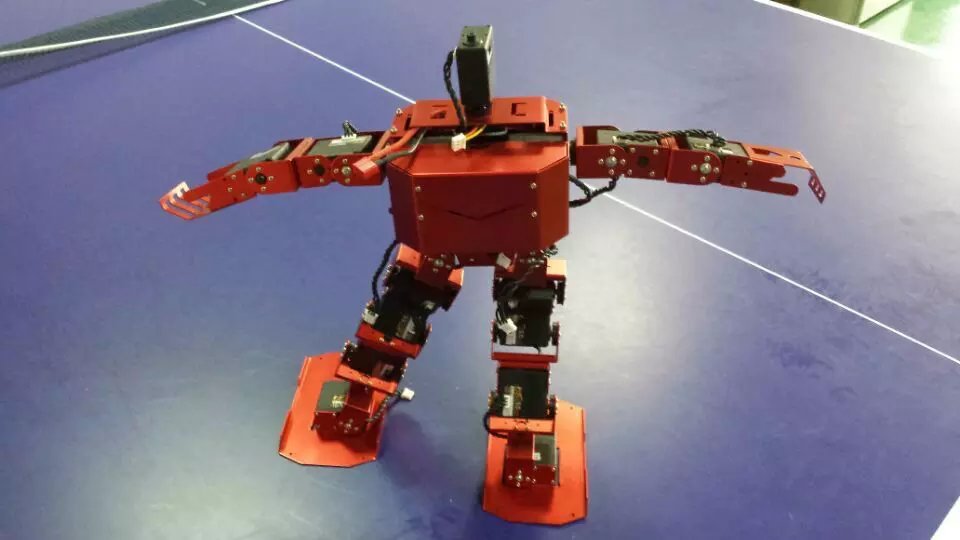

- item:6 DOF Humanoid Robot
- Power:Battery
- Radio Control Style:RC Model
- Type:ROBOT
- Material:METAL
- Scale:1:10
- Brand Name:fitec/FEETECH

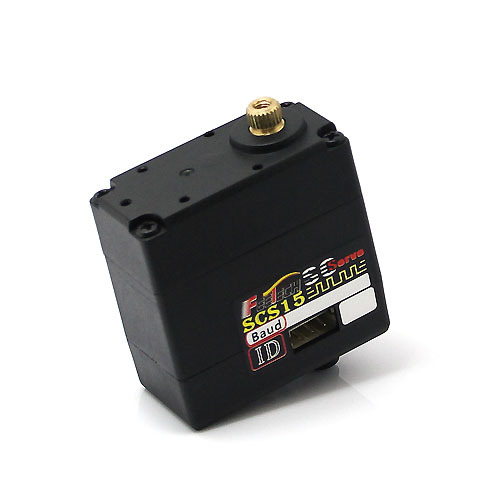

- Model Number:SCS15
- Place of Origin:CN;GUA

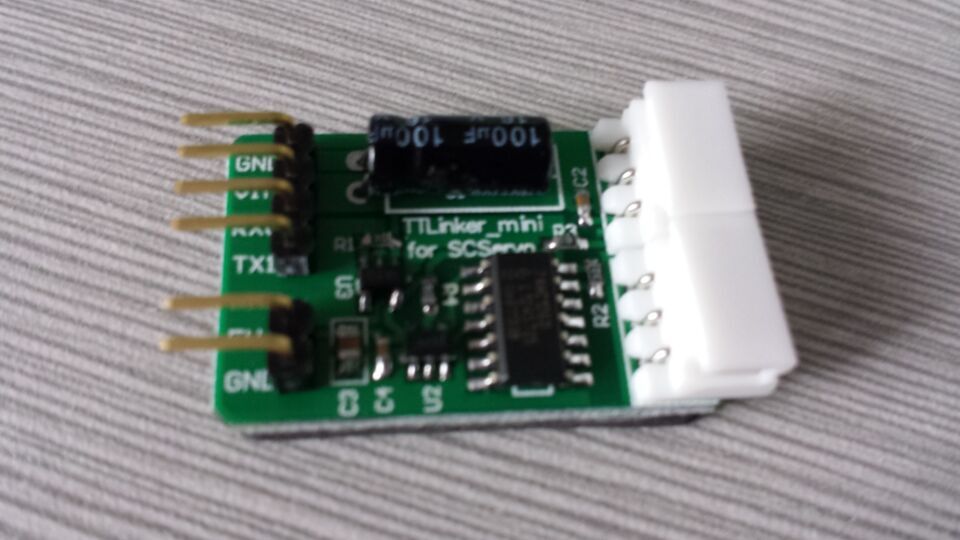

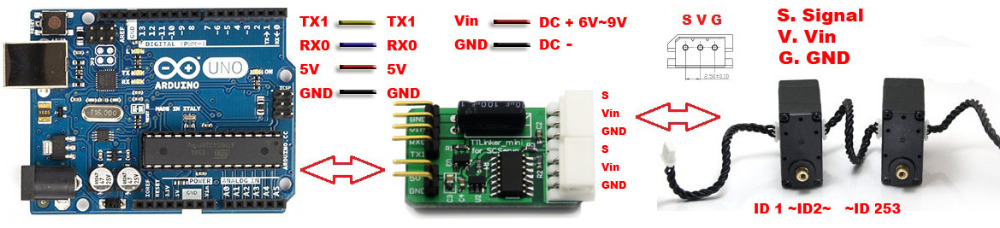

To connect to Arduino The TTLinker control board is required (available separately as 37-1333). The TTLinker is a signal conversion board. Arduino needs to convert its UART signals to the half duplex type and through TTLinker connect to SCServo. The TTLinker also has more interfaces to make provision for more sensors.
When an Arduino is being used to control the SCServo an Arduino library is required, which can be downloaded here.

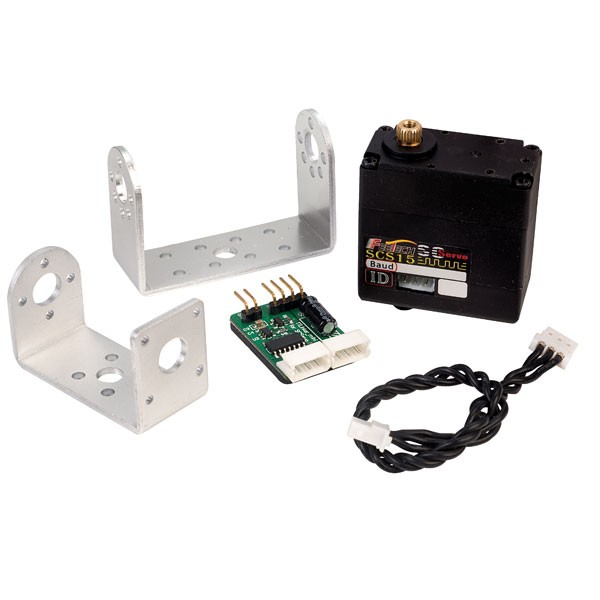

- Supplied with metal gears and brackets
- A 70mm wheel with tyre is also available (37-1334)
- SCServo is easily controlled by Arduino

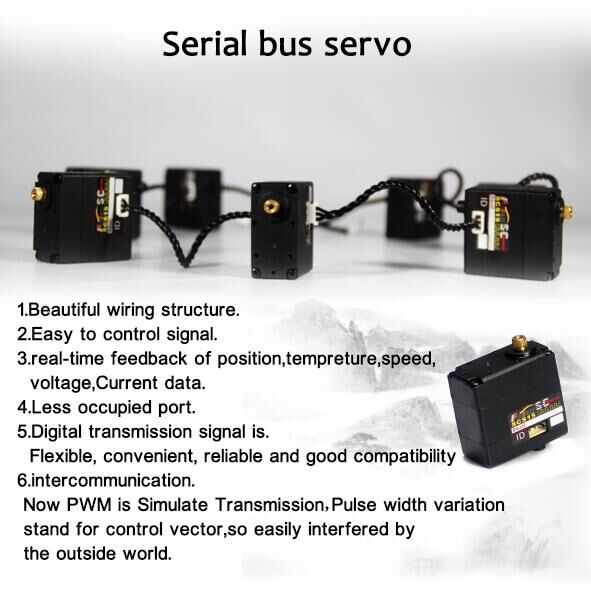

- The SCServo has a unique ID number to identify on BUS network
- Operating voltage range 6 to 8.4V
- 73 rpm Max. operating speed at 8.4V

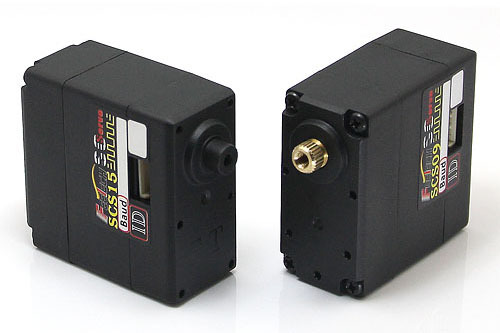

Dimensions 40 x 20 x 40.5mm Weight 56g Gear type Metal 275:1 Bus interface TTL Level Multi Drop Position sensor and resolution Potentiometer(215°/1024) Operating angle 200° (Servo Mode) Control system Bus Packet Communication ID 254 ID (0 to 253) Communication speed 38400bps 1 Mbps Motor type Carbon Bearing type 2BB Operating voltage 6 to 8.4V Stall torque(kg.cm) 15 @ 6V, 16.5 @ 7.4V, 17 @ 8.4V Stall current 1.5A @ 7.4V Operating speed (rpm) 55 @ 6V, 65 @ 7.4V, 73 @ 8.4V Connector (wire length) 3P&5264 (15cm)
Full Packaged
-Servo×1PCS
-Servo arm×1 bag
Shipping
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight Collect can also be acceptable.
We also specialized in ODM and OEM
Payment
We adopt T/T,west union,paypal payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
