- Tilt:230°(with limitation)
- Roll:360° (Unlimited)
- Pan:360° (Unlimited)
- Usage Time In Theory:12 Hours
- Materials In Main Body:Aluminum Alloys
- Water-Proof Grade:Not Water-proof
- Webstie:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Model Number:AK4500
- Brand Name:FeiyuTech
- Place of Origin:CN;GUA

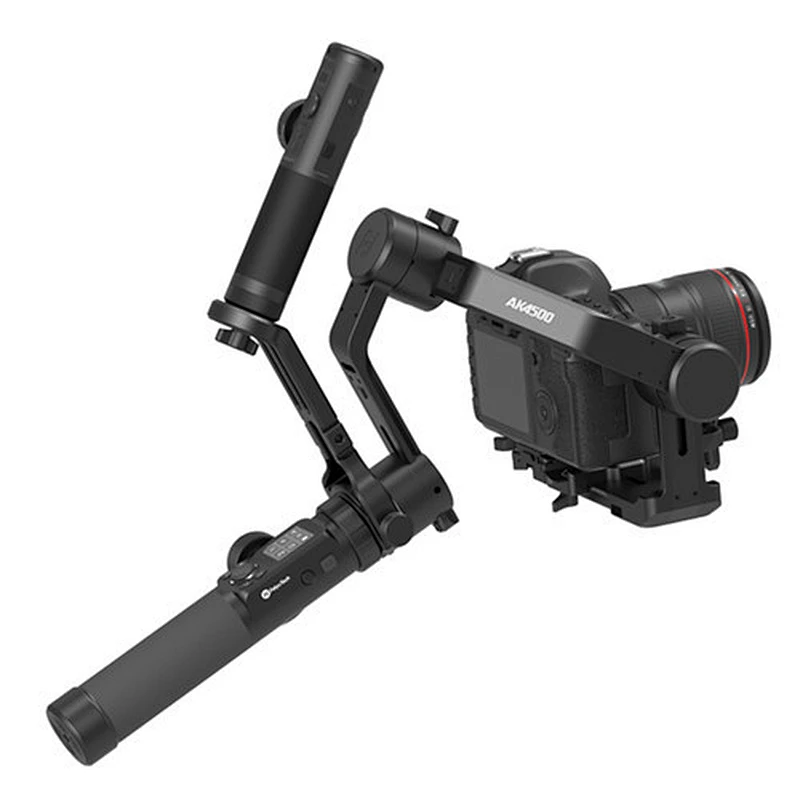

FeiyuTech AK4500 3-Axis Gimbal Handheld Stabilizer Payload 4.6 KG for Mirrorless & DSLR Camera for Sony Nikon D850 Canon 5D 6D
Detailed Images
Please check the product specifications
Main Features
1. Max payload updates to 10.14lb(4.6KG), easily work with popular DSLR and cinema camera.
2. Detachable versatile design, switch between single handle, underslung position and separate hyperlink remote control to use in more different shooting scenes.
3. Quick release plate design for camera to get real quick setup in one second.
4. Bottom mounting plate is compatible with Manfrotto PL501, upper quick release plate is compatible with ARCA quick release system, which can fast switch between two popular quick release systems and AK4500.
5. Three axis motor-locking design to get a convenient balance and storage.
6. Touch panel operation without APP to directly set up parameters and change mode.
7. Full Chinese/English language display to get better interactive experience.
8. Friendly lock and unlock screen feature to prevent mistakenly touching .
9. Just touch one icon and you will directly enter Dutch-Angle shoot/Long exposure timelaspe/ Vlog selfie/ TikTok vertical shoot and got more popular shooting mode.
10. Supply USB Cable control/Wireless control way to take picture/recording/timelapse.
11. Dual available USB ports for external follow focus/Zoom in&out set.
12. Customize trigger button, follow speed/dead zone, motor power, etc. to fit for different usage.
13. Auto-adapt motor power and customize motor power to be chose to work with more cameras and lenses.
14. Detachable main body from single handle , assemble single handle together with dual handle grip, directly control the gimbal and camera without any remote control.
15. Basic version comes with Underslung arm and anti-slip Tripod, Standard version comes with Brushless follow-focus gear, underslung arm, Hyperlink remote , carbon fiber and anti-slip Tripod, customer can choose each version according to their need.
(Note:blod fonts are new features for AK4500, normal fonts are old features with AK series gimbal)
Specifications
| Cameras Supported | Payload:150g/0.33lb--4600g/10.14lb(lens and other accessories are included, and center of gravity of gimbal is balanced ). Part of cameras & lenses tested: 1 Canon 5D Mark III/ Mark IV/ 6D / 80D and other cameras with similar dimensions and weight Lenses: Canon EF 24-105mm f/4L IS USM, Canon EF 24-70mm f/2.8L USM, Canon EF 16-35mm f/2.8L II USM, Canon EF 17-40mm f/4L USM, Canon EF 35mm f/1.4L II USM, Canon EF 100mm f/2.8L IS USM Macro Lens + lens hood, Canon EF 85mm f/1.2 L II USM + lens hood, Canon EF 50mm f/1.2L USM (focus ring is stuck on lens support frame, only works in AF) Canon 1D X Mark II Lenses: Canon EF 35mm f/2 IS USM + lens hood, Canon EF 85mm f/1.2 L II USM+ lens hood, Canon EF 135mm f/2L USM+ lens hood, Canon EF 100mm f/2.8L IS USM Macro Lens + lens hood 2 Sony α7/ α9 series Lenses: Sony FE 16-35mm f/4, Sony FE 24-105mm f/4 G OSS, Sony FE 12-24mm f/4 G, Sony E 50mm f/1.8 Mid-Range Lens, Sony E PZ 18-105mm f/4 OSS, Sony FE85mm f /1.8, Sony FE 35mm f/1.4 3 Panasonic, Nikon and other cameras, like GH5/GH5S, Nikon D850/Z6/Z7, Fuji XT3,etc. 4 Cinema Camcorder like Canon C100/C300 with lens EF-S 10-18mm f/4.5-5.6 IS STM Sony FS5 Bmpcc 4K with cage accessory |
| Battery | 18650 rechargeable battery*4, 2200mAh, 3.7V (please pay attention to installation of batteries) Battery charging via USB port on gimbal is not supported. Please use the charger provided for charging batteries. |
| Usage Time In Theory | 12 Hours (When camera is balanced with gimbal) |
| Charging Time | ≥5 hours by the charger provided and the adapter 5V/3A (quick charger is banned). When the indicator on charger give a solid red light, that means batteries are charging. With a solid blue light, batteries are fully charged. |
| Materials In Main Body | Aluminum Alloys |
| Weight | 1656g (not included the battery, shutter release cable, camera, lens and so forth) |
| Water-Proof Grade | Not Water-proof |
| Dimensions | 429*240*175.3mm(Not included Detachable support frame) |
| Rotatable Range | Tilt: 230°(with limitation) Roll: 360° (Unlimited) Pan: 360° (Unlimited) |
| Controllable Range | Tilt: +175° to -55° Roll: 360° (when parallel to the ground, and works in Dutch-Angle shoot mode, it could be automatically rotated 360°in one circle or several circles) Pan: 360° (unlimited) |
Item Packing
Feiyu Tech AK4500 Gimbal x 1
Extension Handle x 1
Focuser Kit x 1
Follower x 1
