- Webstie:www.lxrcmodel.com
- Use:Vehicles & Remote Control Toys
- Model Number:DJI-ROBOS1
- Brand Name:DJ I
- Place of Origin:CN;GUA

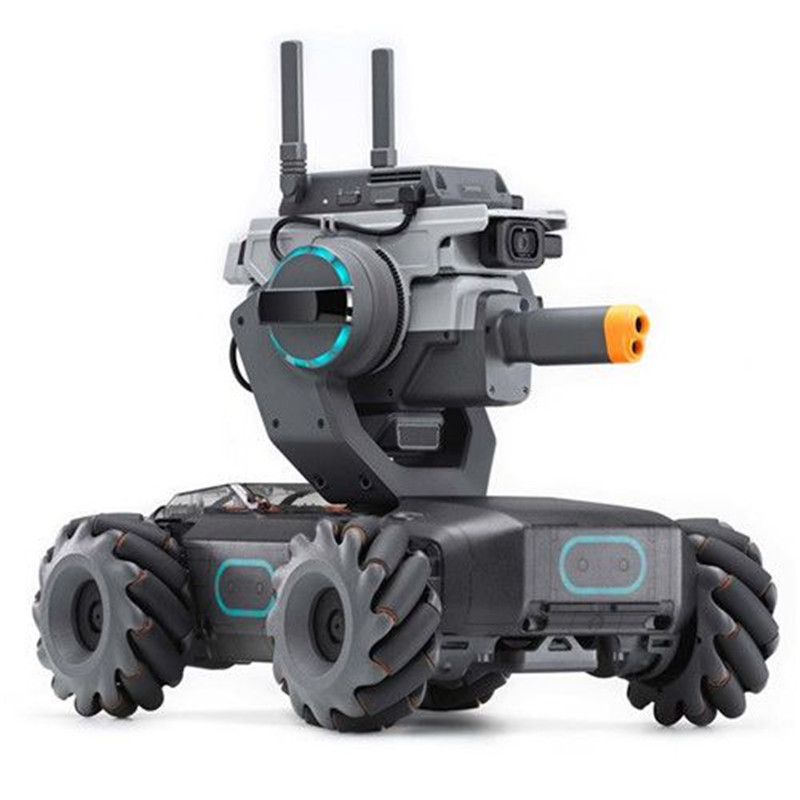

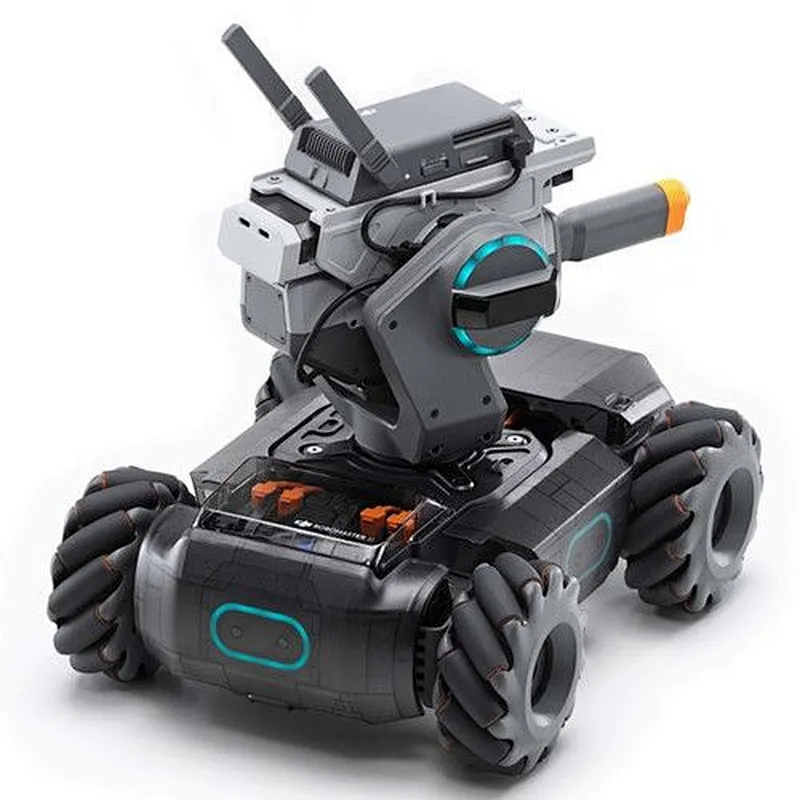

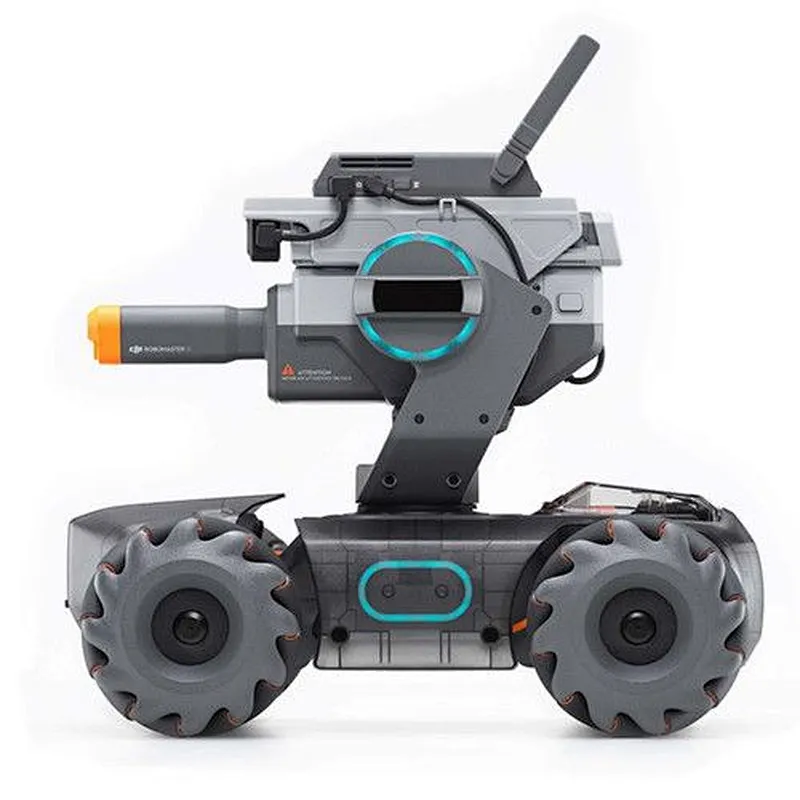

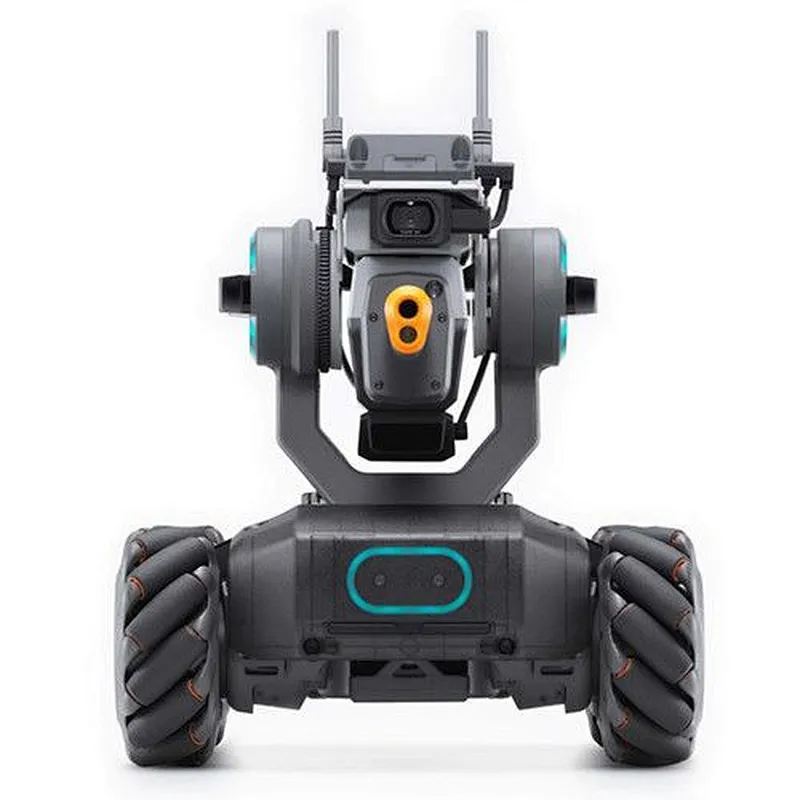

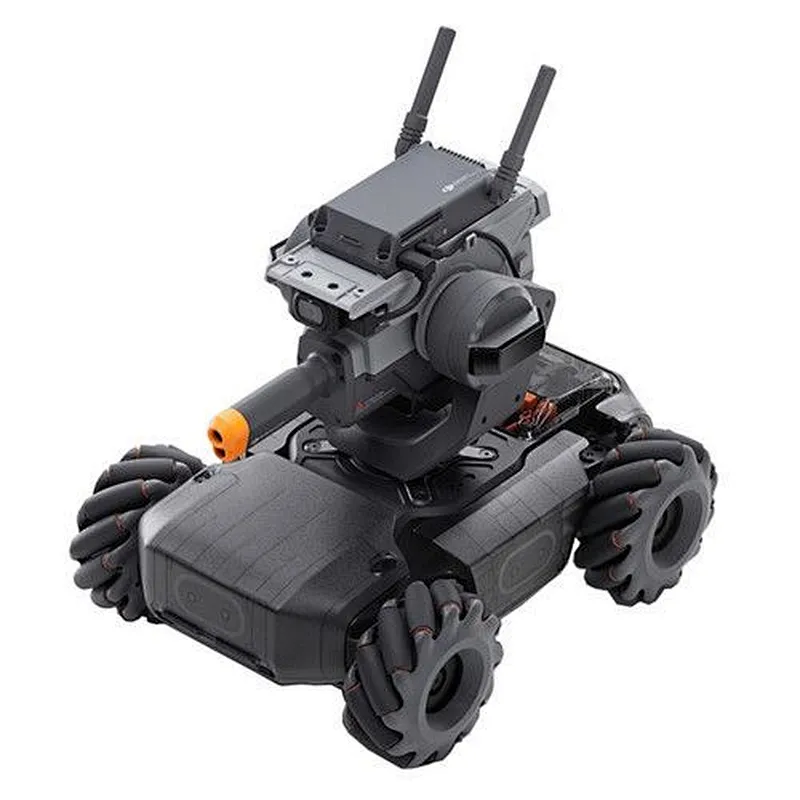

DJI Robomaster S1 STEAM DIY 4WD Brushless HD FPV APP Control Intelligent Educational Robot With AI Modules
Detailed Images
Please check the product specifications
Features
Educational Products
DJI has invested in robotics education since 2013 with the introduction of the RoboMaster competition. The launch of the RoboMaster S1 marks DJI’s first step into the robotics education field, supported with courses, educational materials, events, and hardware. DJI will continue to partner with schools, robotics clubs, organizations, and others to expand its presence in the field. In August of 2019, DJI will also host the first RoboMaster S1 Challenge during the RoboMaster finals in Shenzhen, China.
Advanced, Safe and, Intuitively Designed

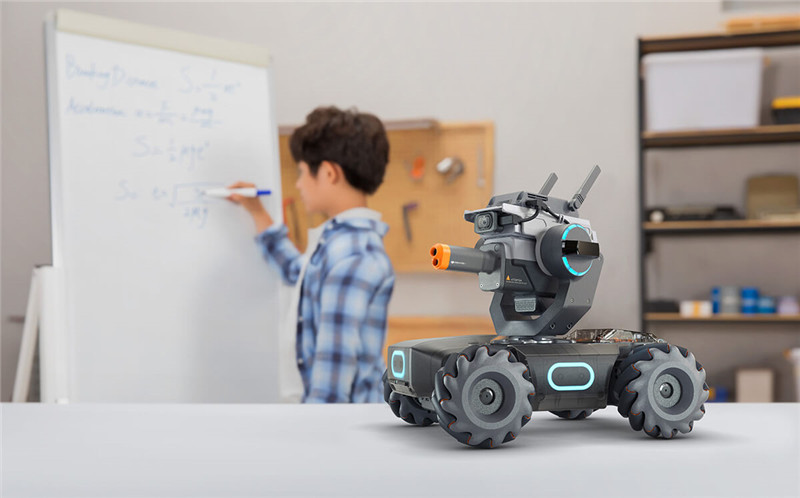

The S1, short for “Step 1,” is a highly advanced rover designed to give new users an easy introduction to AI, engineering, and robotics. With simple controls, a dedicated RoboMaster app, easily navigable menus, and a wealth of tutorials, the S1 is approachable to newcomers while offering advanced features to users already experienced in AI, engineering, and robotics.

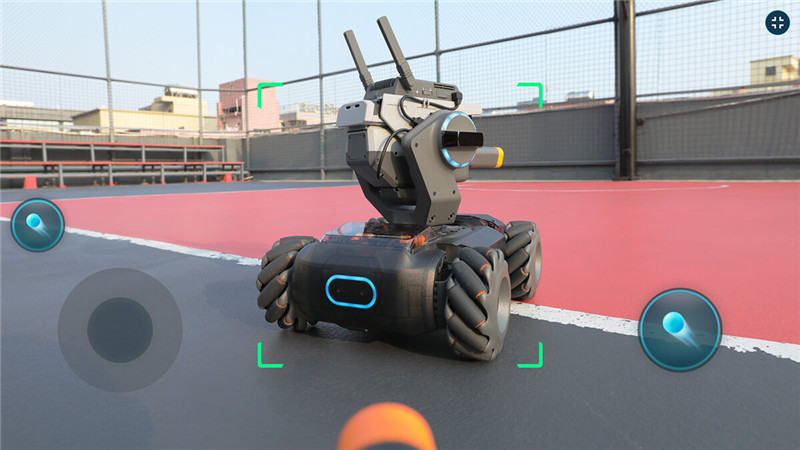

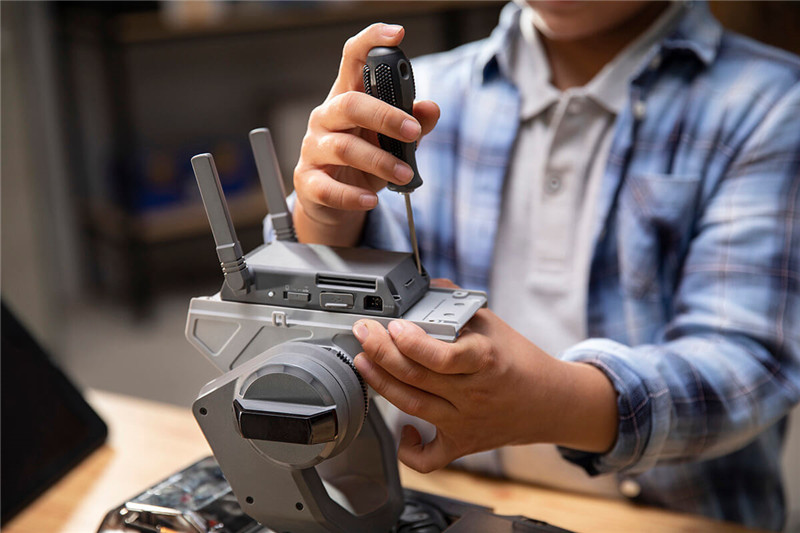

The S1 is equipped with 31 sensors to help map the world around it, including six on its intelligent body armor, which are used to detect hits. Atop the durable S1 frame is a first-person view (FPV) camera that sends a stabilized live feed from the S1 to the RoboMaster app. It also features a specialized mechanical gimbal with an infrared and nontoxic gel bead Blaster, which automatically limits launching rate and angle to help ensure safety. The S1 is modular with DJI parts and also includes six Pulse Width Modulation (PWM) control ports so advanced users can take advantage of third-party hardware.
sing the FPV camera and machine vision technology, the S1 can identify different objects automatically, recognize and respond to sounds, and receive signals from other S1 units. The powerful central processing unit and industrial-grade CAN-bus cable enable it to process large amounts of data, maintaining a stable transmission signal even while performing multiple tasks. Along with its custom brushless motor, the S1 has four Mecanum wheels, most commonly found on competitive robots, each with 12 rollers that allow omnidirectional movement and precision control while operating.
Product DetailsExperience and Explore Advanced Technology
The S1 is equipped with leading machine vision technology, enabling users to get hands-on experience with real-world applications. The S1 can perform six intelligent recognition functions, including:
1. Line Follow: Create a fun and interactive course and map out the path desired for the S1. Program Line Follow through the RoboMaster app and the S1 will automatically follow the line.
2. Vision Marker Recognition: The S1 can recognize up to 44 Vision Markers, including numbers, letters, and special characters, which opens more potential for coding, combat, and training.
3. Follow Mode: Built into the RoboMaster app, the S1 can identify and follow a person selected in the S1’s field of vision.
4. Clap Recognition: A built-in clap recognition module on the S1 can be programmed for unique responses based upon clap quantity.
5. Gesture Recognition: The S1 can be programmed to recognize an array of physical hand gestures similar to some DJI drones.
6. S1 Recognition: The S1 can recognize other S1 units and perform unique movements based on how it is programmed.
Specifications
| Camera | FOV: 120° Max Still Photo Resolution: 2560×1440 Max Video Resolution: FHD: 1080/30fps HD: 720/30fps Max Video Bitrate: 16 Mbps Photo Format: JPEG Video Format: MP4 Sensor: CMOS 1/4″; Effective pixels: 5 MP Operating Temperature Range: -10 to 40 °C (14 to 104 °F) |
| Narrow Infrared Units | Effective Range [1]: 6 m (in indoor lighting conditions) Effective Area: Varies from 10° to 40° Effective area decreases as distance from the target increases. |
| Wide Infrared Units | Effective Range [1]: 3 m (in indoor lighting conditions) Effective Width: 360° (in indoor lighting conditions) |
| S1 | Weight: Approx. 3.3 kg Dimensions: 320×240×270 mm (length × width × height) Chassis Speed Range: 0-3.5 m/s (forward) 0-2.5 m/s (backward) 0-2.8 m/s (sideways) Max Chassis Rotational Speed: 600°/s |
| M3508I Brushless Motor | Max Rotational Speed: 1000 rpm Max Torque: 0.25N·m Max Output Power: 19 W Operating Temperature Range: -10 to 40 °C (14 to 104 °F) Driver: FOC Control Method: Closed-loop speed control |
| Blaster | Controllable Launching Frequency: 1-8/s Max Launching Frequency: 10/s Initial Launching Speed: Approx. 26 m/s Average Load: Approx. 430 |
| Gimbal | Controllable Range: Pitch: -20° to +35° Mechanical Range: Pitch: -24° to +41° Max Rotational Speed: 540°/s |
| Intelligent Controller | |
| Latency [2] | Connection via Wi-Fi: 80-100ms Connection via Router: 100-120ms (unobstructed, free of interference) |
| Live View Quality | 720p/30fps |
| Max Live View Bitrate | 6 Mbps |
| Operating Frequency [3] | 2.4 GHz, 5.1 GHz, 5.8 GHz |
| Operating Mode | Connection via Wi-Fi, Connection via Router |
| Max Transmission Distance [4] | Connection via Wi-Fi:
Connection via Router: |
| Transmission Power (EIRP) | 2.400-2.4835 GHz FCC: ≤30 dBm
5.150-5.250 GHz
5.725-5.850 GHz |
| Intelligent Battery | Capacity: 2400 mAh Nominal Charging Voltage: 10.8 V Maximum Charging Voltage: 12.6 V Battery Type: LiPo 3S Energy: 25.92 Wh Weight: 169 g Operating Temperature Range: -10 to 40 °C (14 to 104 °F) Charging Temperature Range: 5 to 40 °C (41 to 104 °F) Maximum Charging Power: 29 W Battery Life in Use: 35 minutes (measured at a constant speed of 2 m/s on a flat surface) Battery Life on Standby: Approx. 100 minutes |
| Charger | Input: 100-240 V, 50-60Hz, 1A Output: Port: 12.6 V=0.8A or 12.6 V=2.2A Voltage: 12.6 V Rated Voltage: 28 W |
Notes
1. Use of the infrared units will be affected in outdoor or infrared-intensive environment.
2. Measured in an interference-free and unobstructed environment with a distance of approximately one meter between the mobile device, the router, and the S1. The iOS device used was an iPhone X. The results of testing with different Android device may be different.
3. Outdoor use of the 5.1 GHz and 5.8 GHz frequency bands is prohibited in some areas. Always follow all local laws and regulations in your country or region.
4. Measured in an interference-free and unobstructed environment. For Connection via Wi-Fi, the mobile device used for testing was a sixth-generation iPad (released in 2018). For Connection via Router, several router models were used for testing. FCC: TP-Link Archer C9; SRRC: TP-Link WDR8600; CE: TP-Link Archer C7; MIC: WSR-1160DHP3.
5. The gel beads will swell to a usable size after being soaked in water for four hours.
Item Packing

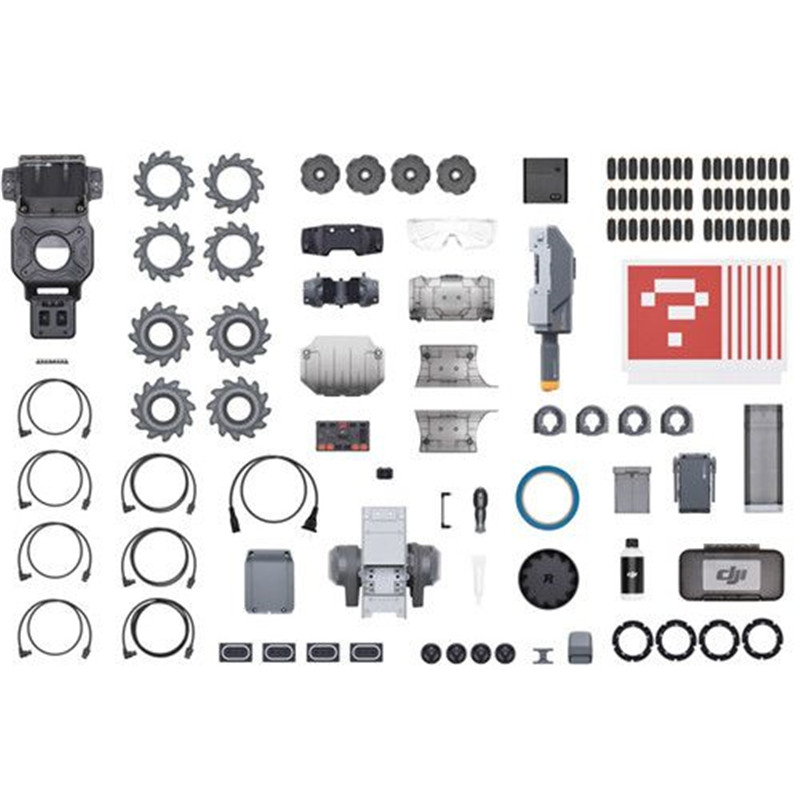

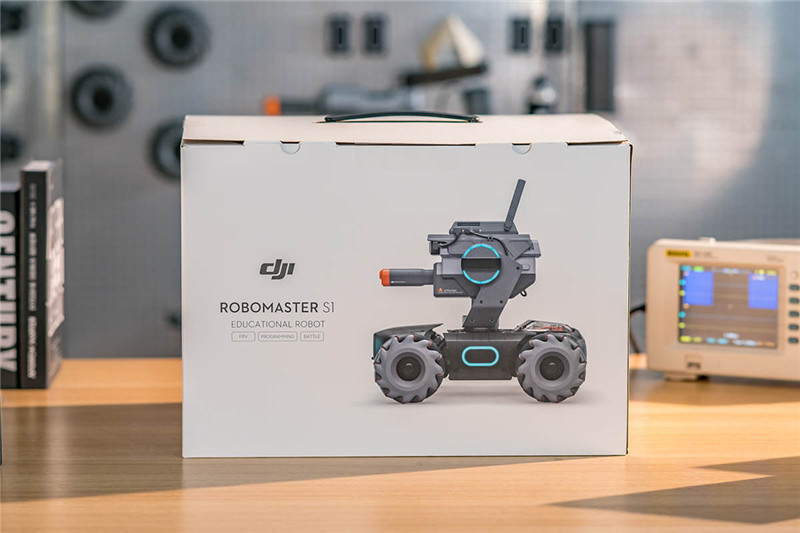

DJI RoboMaster S1 Educational Robot X 1
