- Style:180A OPTO electric speed controller ESC
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:Sunrise
- Model Number:ICE-180AHV
Sunrise ICE NAVY series ICE HV 180A OPTO electric speed controller ESC for RC boat
Features
Compatible with a programming card to change and set parameters easily and conveniently
Super fine and smooth touch of speed controlling, first-rate accurate linearity
Water-cooled, and the whole ESC is waterproof to get a longer life.
High capability of anti-interference
Low-voltage cut-off protection for per cell battery
Programmable Soft Star-up
Programmable “Forward/Reverse mode” or “Forward mode”
Active free-wheel (Automatic rotation)
Timing: Automatic or 6 steps adjustable
PWM frequency:8-16KHZ
Max. RPM:240,000rpm(for 2 Poles Brushless Motor)
Blocked rotation protection
Over-temperature protection and Overload alarm
Throttle signal lose protection
Safe power-on. The motor won’t start no matter which position the throttle stick is when battery connected.
Anti Sparking Circuit: reduces connection sparkles(only HV ESC)
Product Details
| Model | Boat-HV-180A OPTO |
| Constant Current | 180A |
| Max Current | 200A for 10 seconds |
| Input Voltage | 4-14S Li-XX battery |
| BEC | None |
| PWM | 8-16 KH |
| Max RPM | 240,000rpm for 2 Poles Brushless Motor |
| Size | 107mm*53mm |
| Weight | 30g |
Item Packing
Sunrise ICE NAVY series ICE HV 180A OPTO electric speed controller ESC x1

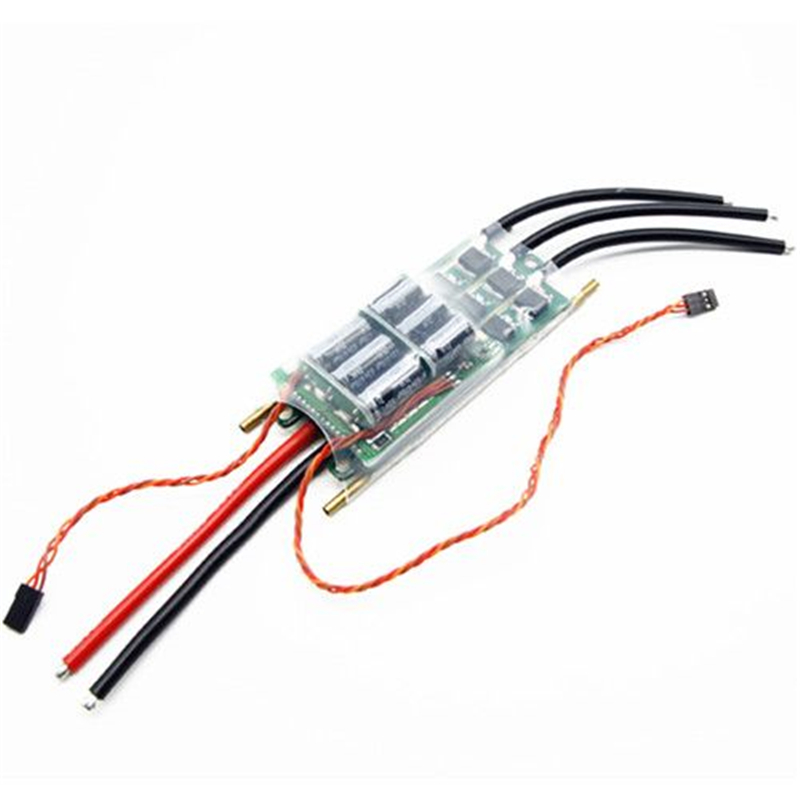

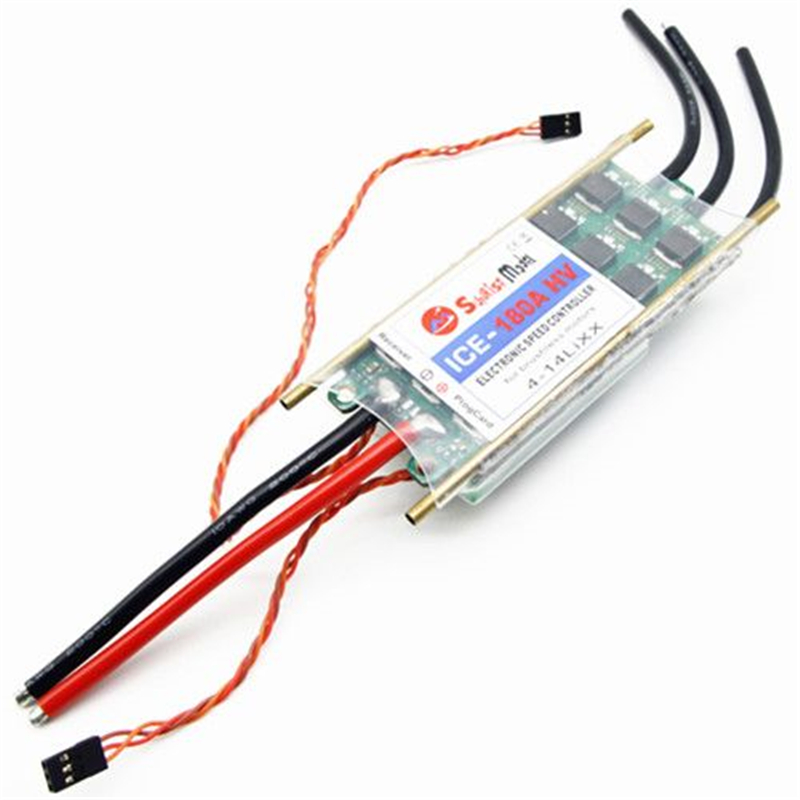

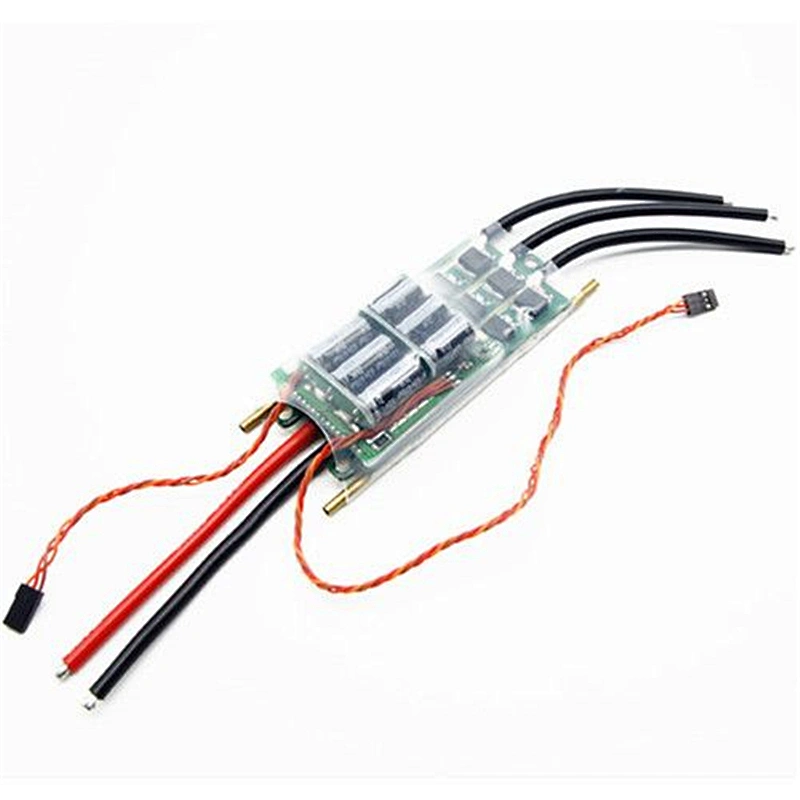

Detailed Images
