- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Brand Name:HEX
- Model Number:XP660
Features
Built-in IMU Heating system, allowing flights at extreme temperature (below freezing)
Robust DF17 Interface connectors give enhanced drop and shock resistance
Airframes: VTOL, Plane, Multicopter, Traditional Heli, Rover, Boat, Sub, General Robotics

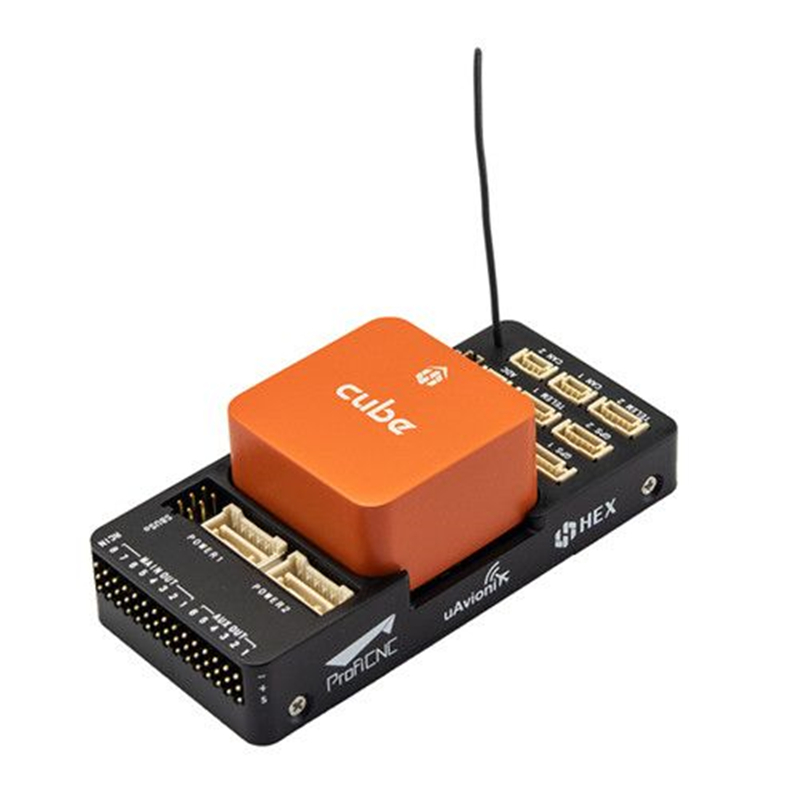

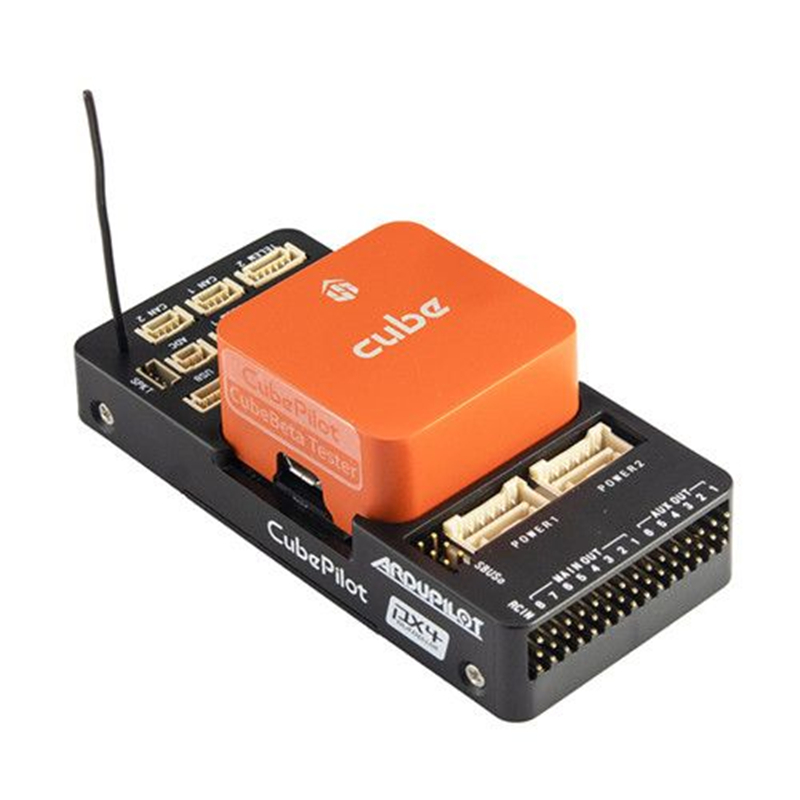

The Cube Orange
Cube Orange targets education, amateur drones lovers, and professionals with cost-effective flight control hardware.
Includes new generation of more powerful H7 processor, with stronger performance, faster processing, increased security with
built-in
triple-redundant sensors, temperature control shock absorption IMU.
With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter
or multi-rotor vehicle and turn it into a more professional UAV platform.
ADS-B Carrier Board
A standard carrier board with an integrated 1090MHz ADS-B receiver allowing the software to receive information about the location
of manned aircraft in the area.
Receives information such as position, altitude, speed, etc, which can all be viewed in Mission Planner.
Through settings, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that are within an
exclusion zone set by you
Robust DF17 Interface connectors give enhanced drop and shock resistance
Airframes: VTOL, Plane, Multicopter, Traditional Heli, Rover, Boat, Sub, General Robotics
The Cube Orange
Cube Orange targets education, amateur drones lovers, and professionals with cost-effective flight control hardware.
Includes new generation of more powerful H7 processor, with stronger performance, faster processing, increased security with
built-in
triple-redundant sensors, temperature control shock absorption IMU.
With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter
or multi-rotor vehicle and turn it into a more professional UAV platform.
ADS-B Carrier Board
A standard carrier board with an integrated 1090MHz ADS-B receiver allowing the software to receive information about the location
of manned aircraft in the area.
Receives information such as position, altitude, speed, etc, which can all be viewed in Mission Planner.
Through settings, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that are within an
exclusion zone set by you
Product Details

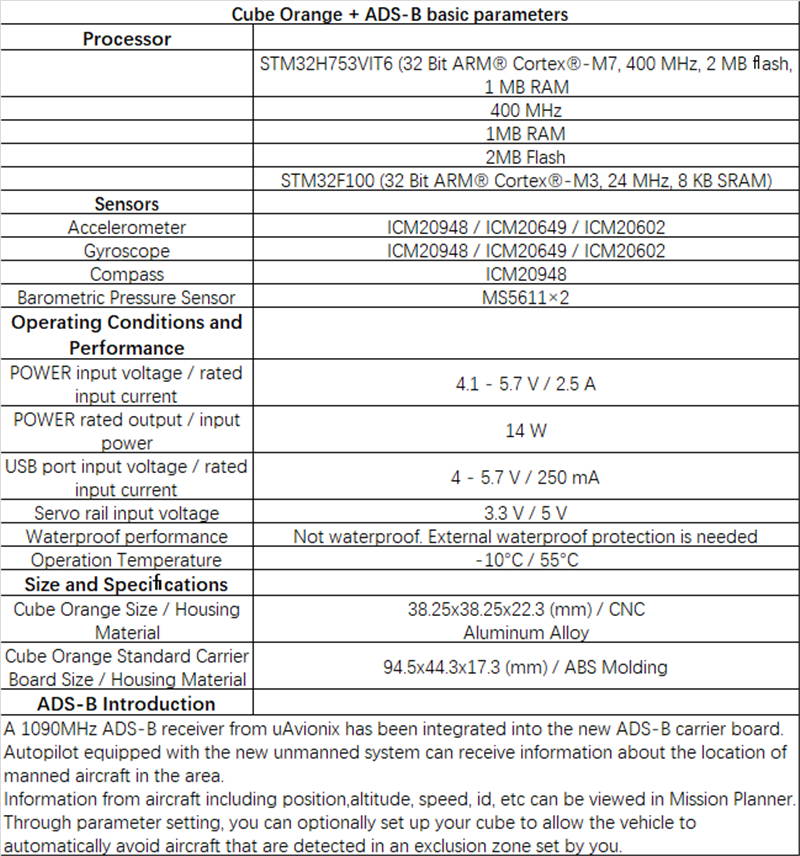

Specifications
Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
Power input voltage/rated input current: 4.1-5.7 V / 2.5 A
Power rated output/input power: 14 W
USB port input voltage/rated input current: 4-5.7 V / 250 mA
Servo rail input voltage: 3.3 V / 5 V
Not waterproof. External waterproof protection is needed
Operation Temperature: -10 °C / 55 °C
Cube Orange Housing Material: CNC Aluminum Alloy
Standard Carrier Board Housing Material: ABS Molding
Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
Power input voltage/rated input current: 4.1-5.7 V / 2.5 A
Power rated output/input power: 14 W
USB port input voltage/rated input current: 4-5.7 V / 250 mA
Servo rail input voltage: 3.3 V / 5 V
Not waterproof. External waterproof protection is needed
Operation Temperature: -10 °C / 55 °C
Cube Orange Housing Material: CNC Aluminum Alloy
Standard Carrier Board Housing Material: ABS Molding
Item Packing

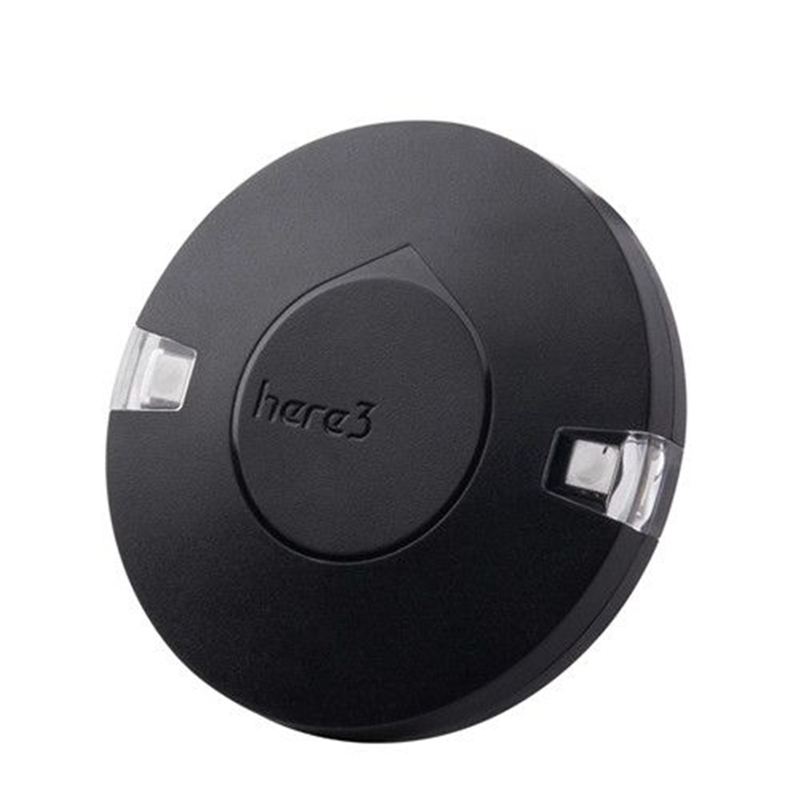

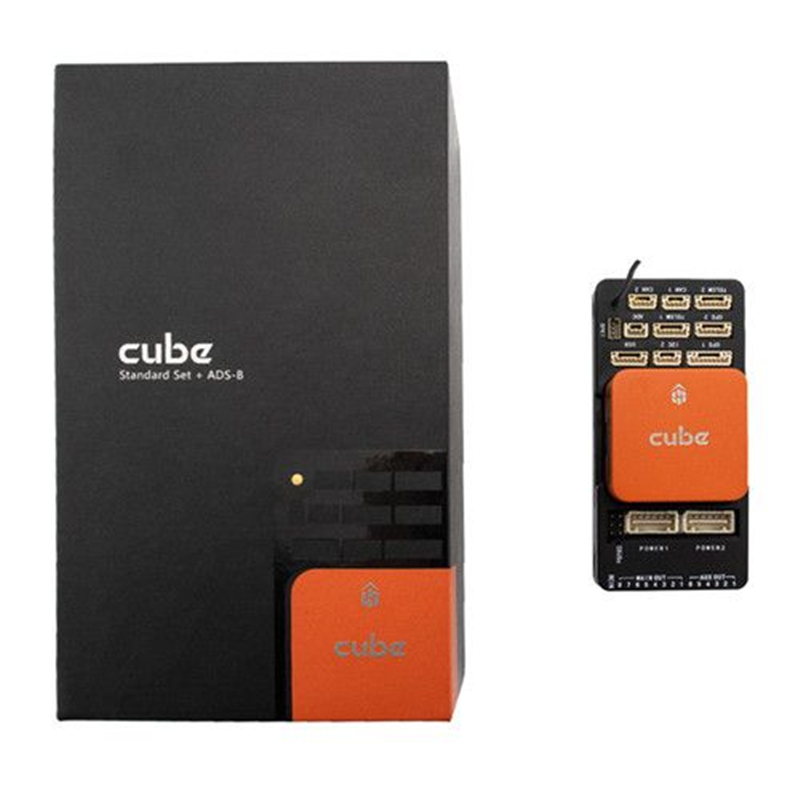

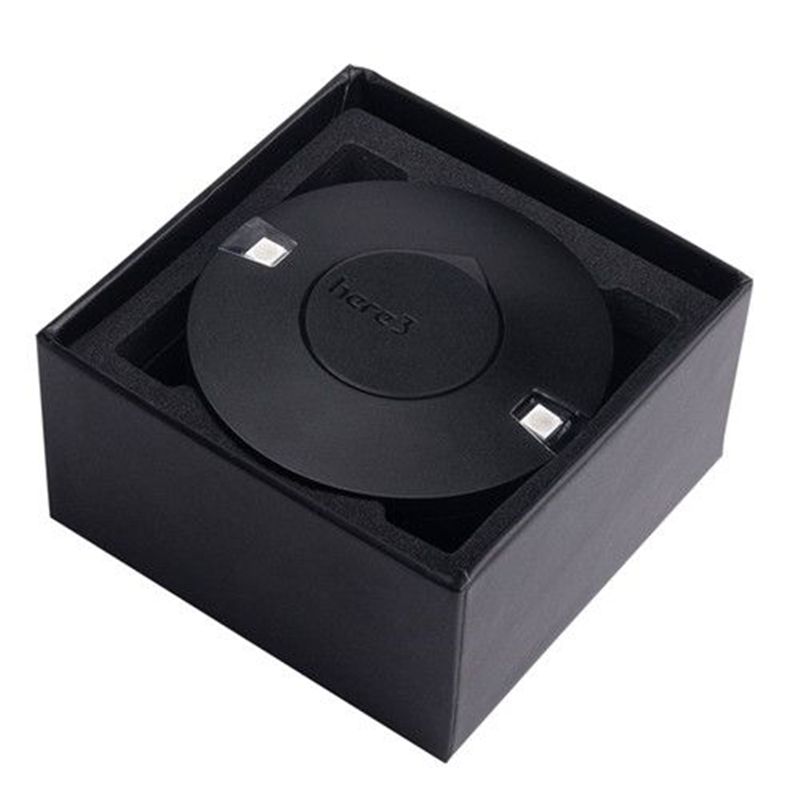

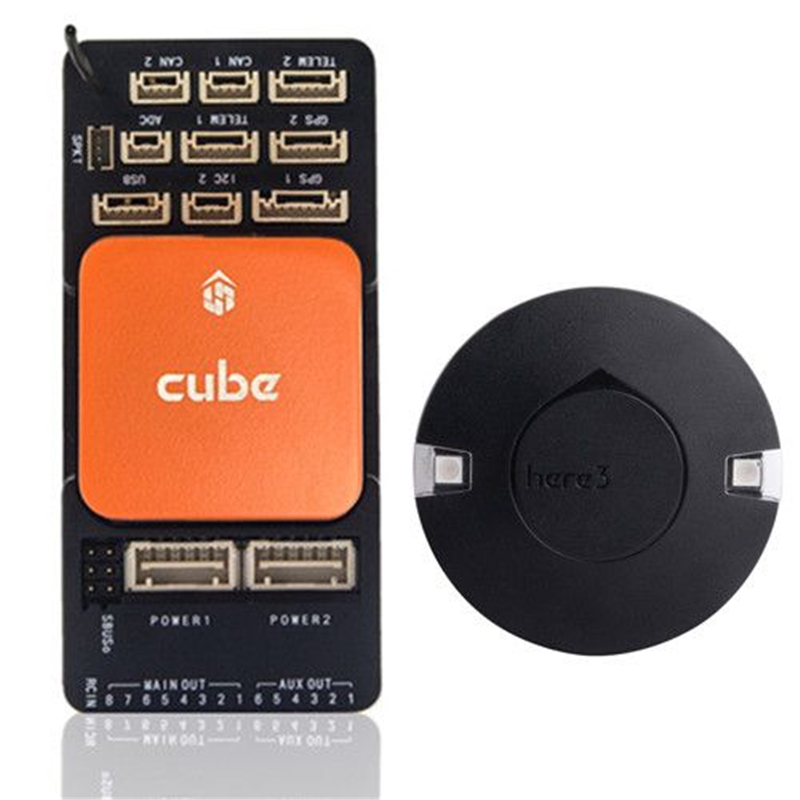

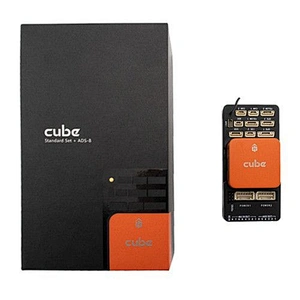

HEX Pixhawk 2.1 Cube Orange Standard Set W/ here 3 GPS & ADS-B x1
Detailed Images
