- Color:Black
- Gear type:Steel Gear (Gear Ratio 353:1 )
- Motor:Brushless motor
- Operating Voltage Range:24V
- Peak stall torque:45kg.cm/24V
- Rated torque:15kg.cm/24V
- Rated Load:15kg. cm≤
- Rated current:900mm≤
- Storage Temperature Range:-30℃~80℃
- Operating Temperature Range:-20℃~70℃
- Type:Car
- Power:Battery
- Material:plastic
- Plastic Type:ABS
- Scale:1:8
- Radio Control Style:RC Hobby
- Place of Origin:CN
- Brand Name:Feetech
- Model Number:SM45BL
Features
If the servo does not match your requirements , please do not hesitate to contact with us, we have hundreds of servos for optional, and we are professional servo manufacturer since 2011, customizing servo as per requirements is our advantage.
Product Details
tem NO.: SM40BL SM45BL
Size: 46.5*28.5*34mm
Weight: 100g
MAX Speed: 65RPM@12V 70RPM@24V
Degree: 0-360°
Torque: 40kg.cm@12V
45kg.cm@24V
Product Description
Big Torque:45Kg. cm
Large Angle:+_30 thousand turns(Arbitrary absolute relative)
DC 24V power supply
0.088 degree Position resolution
Dual output shaft,fit for robot joint
High precision all metal gear set,Double ball bearing
Full Aluminium alloyCNC case,Good cooling effect
Position servo control mode ,rotation range 0-360°and many turns Arbitrary absolute relative angle.
In the speed control mode ,can be continuous rotation,adjust speed
Duplex asynchronous T T L / 4 8 5 Communication level
Daisy chain connection, 254 ID can choose
High reach 1M Baud rate
333Hz servo update rate
Can give feedback on position,temperature,voltage,speed and current load
Use open FT SCS Serial asynchronous communication protocol
Application Field
SM45BL It has the advantages of large angle absolute angle and controllable relative angle,According to the application of the
robot, the structure is optimized.
Its ideal application field is:
Small humanoid robot
Small joint robot
Small Bionic robot
Robot wheel,Track drive
Industrial automation requiring simple position control
Size: 46.5*28.5*34mm
Weight: 100g
MAX Speed: 65RPM@12V 70RPM@24V
Degree: 0-360°
Torque: 40kg.cm@12V
45kg.cm@24V
Product Description
Big Torque:45Kg. cm
Large Angle:+_30 thousand turns(Arbitrary absolute relative)
DC 24V power supply
0.088 degree Position resolution
Dual output shaft,fit for robot joint
High precision all metal gear set,Double ball bearing
Full Aluminium alloyCNC case,Good cooling effect
Position servo control mode ,rotation range 0-360°and many turns Arbitrary absolute relative angle.
In the speed control mode ,can be continuous rotation,adjust speed
Duplex asynchronous T T L / 4 8 5 Communication level
Daisy chain connection, 254 ID can choose
High reach 1M Baud rate
333Hz servo update rate
Can give feedback on position,temperature,voltage,speed and current load
Use open FT SCS Serial asynchronous communication protocol
Application Field
SM45BL It has the advantages of large angle absolute angle and controllable relative angle,According to the application of the
robot, the structure is optimized.
Its ideal application field is:
Small humanoid robot
Small joint robot
Small Bionic robot
Robot wheel,Track drive
Industrial automation requiring simple position control
Item Packing
GiftBox (A servo + accessory) x1

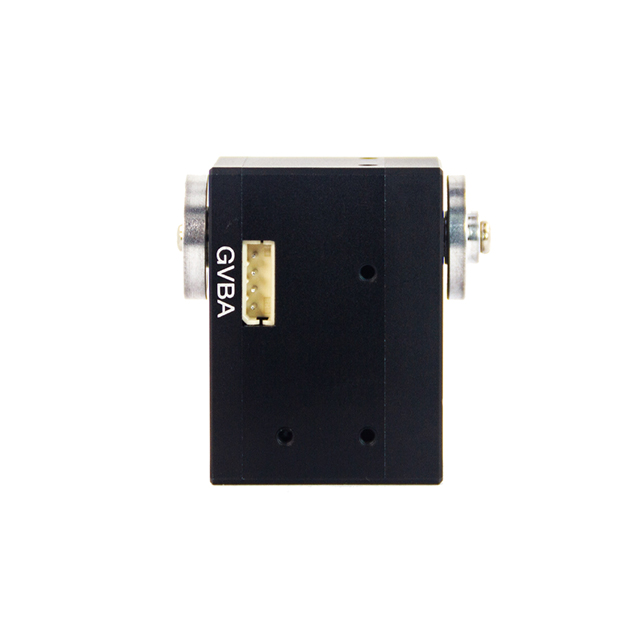

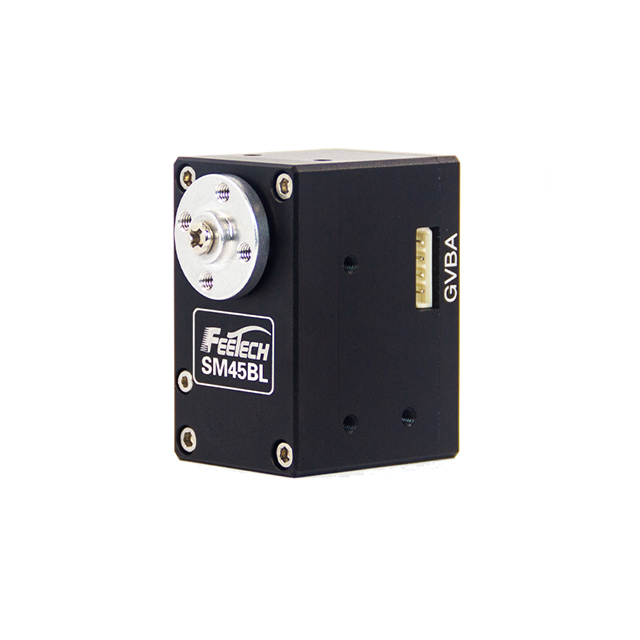

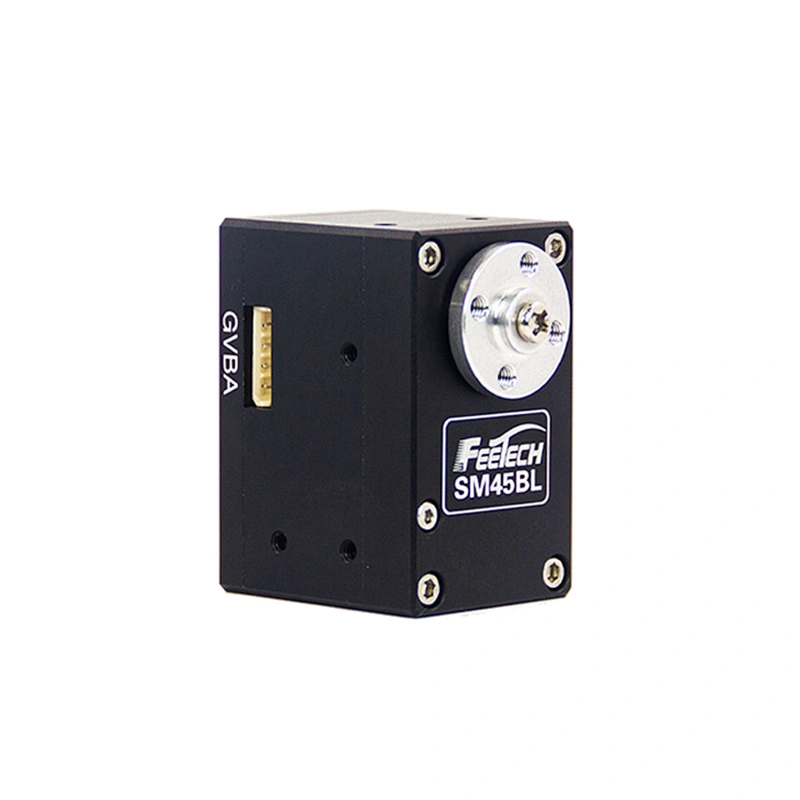

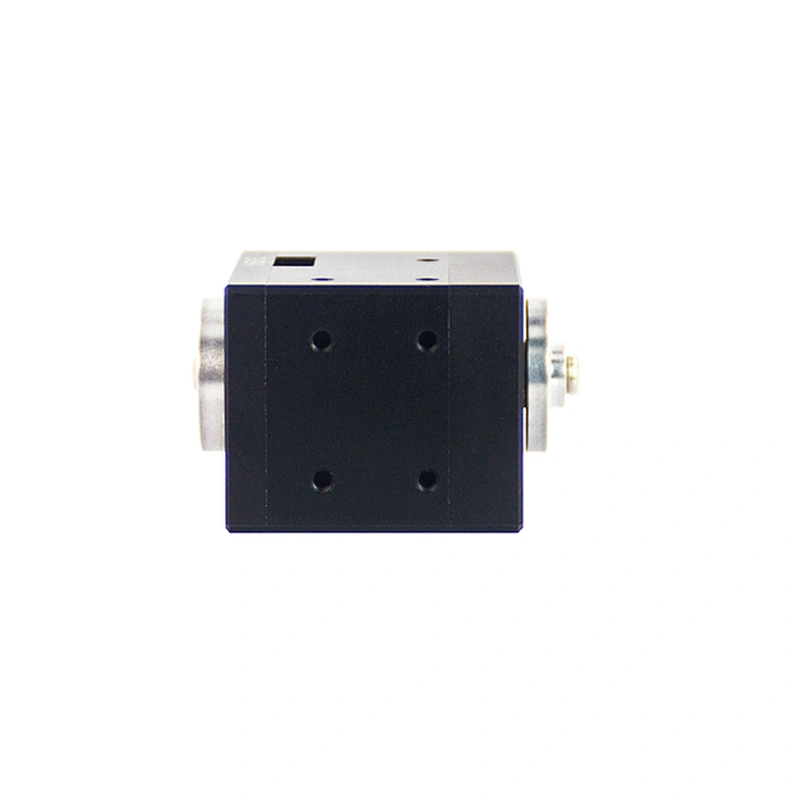

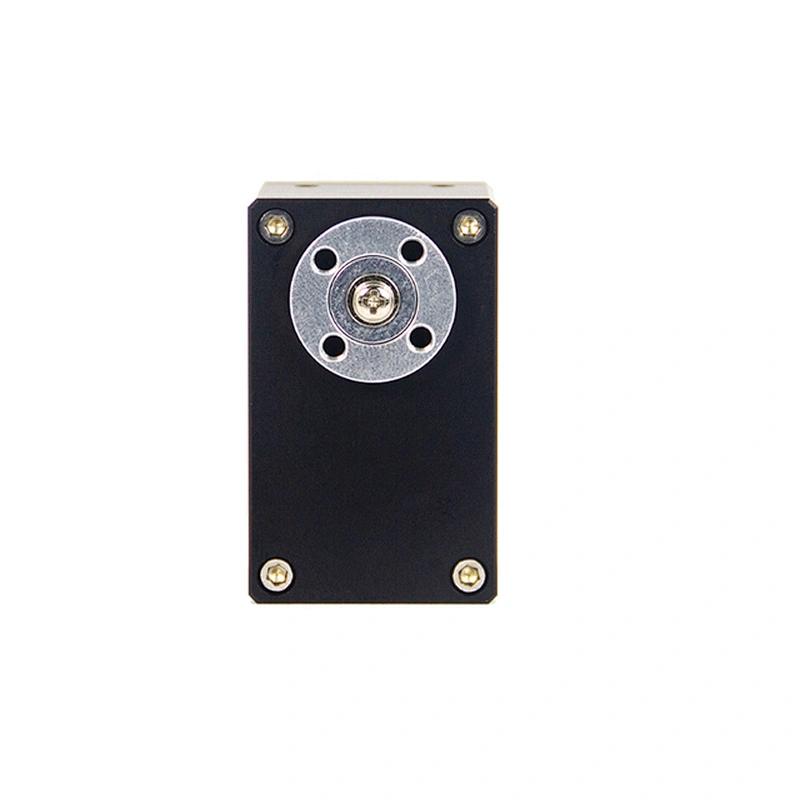

Detailed Images
