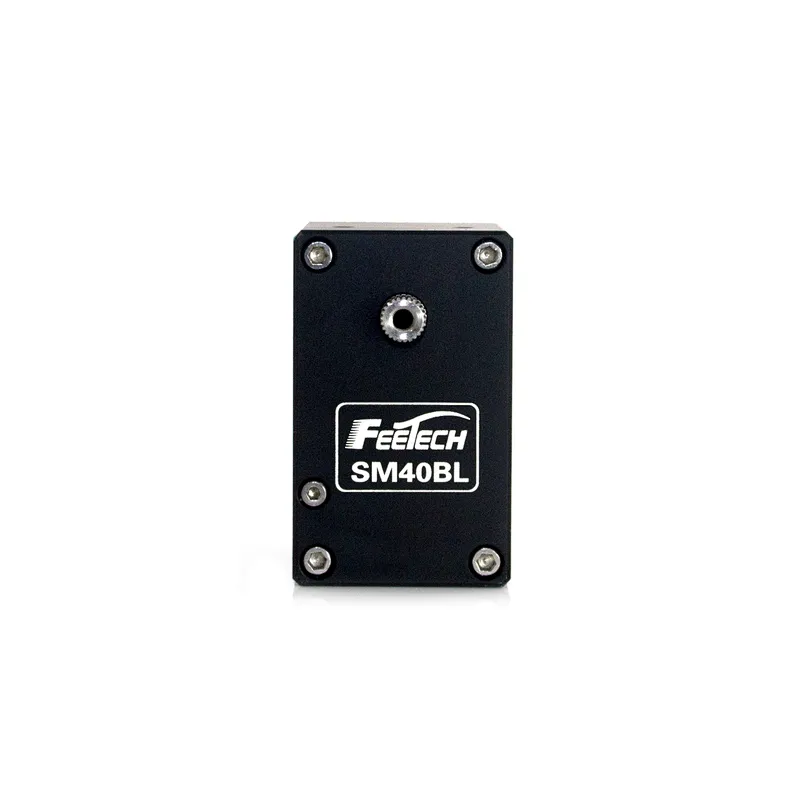

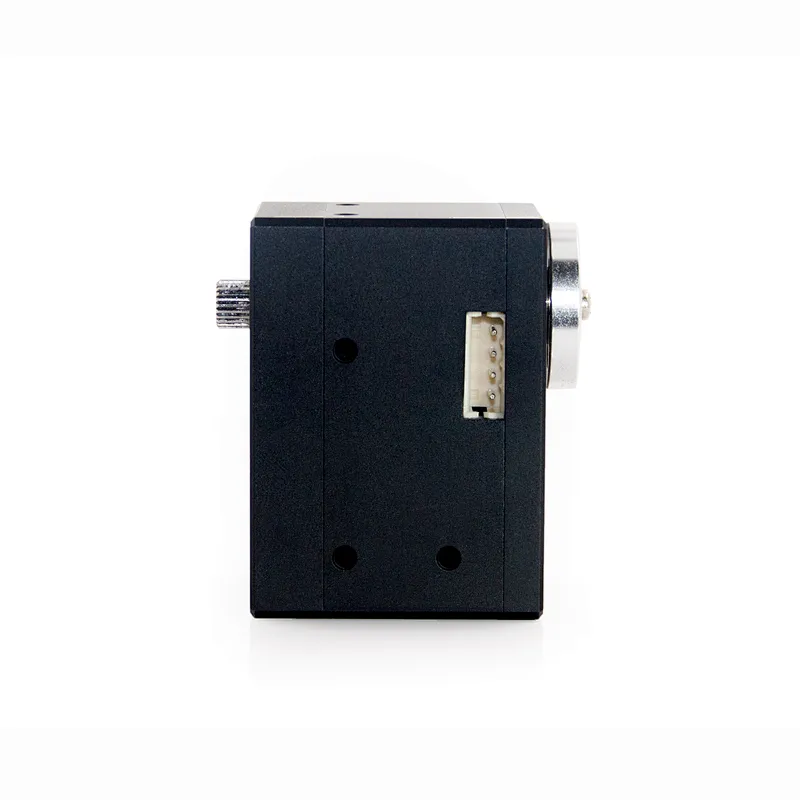

Feetech 40kg All Metal Humanoid Robot Servo Drive by Ardui through Modbus RTU 40kg servo robot from China Manufacturer

Application:Robot
Product name:Robot servo
Brand:Feetech
Material:All Metal
Function:Rotation
Torque:40kg
Motor Type:Brushless
Certificate:CE ROHS
Color:Black
Large Angle:+_30 thousand turns(Arbitrary absolute relative)
Brand Name:Feetech

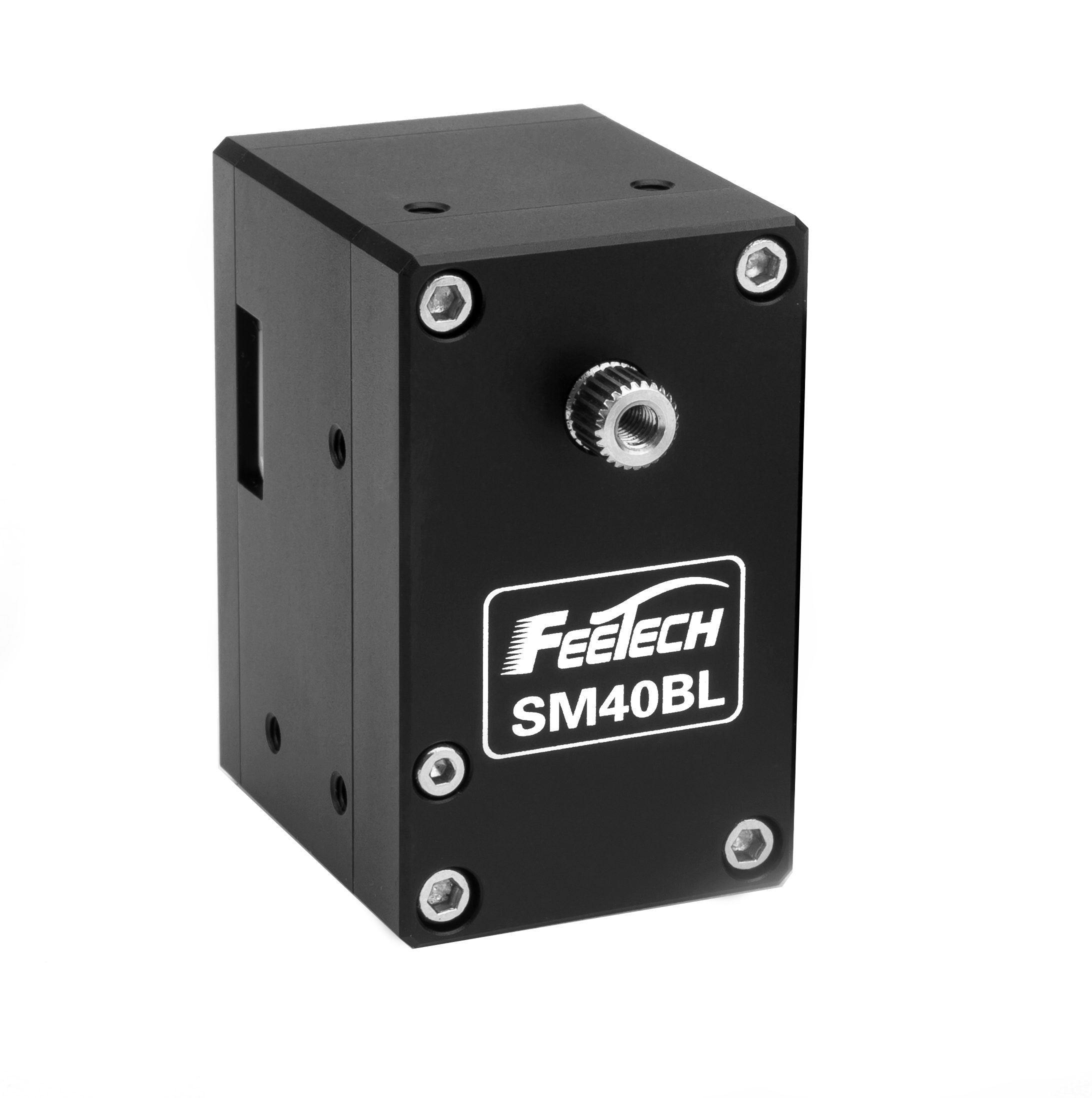

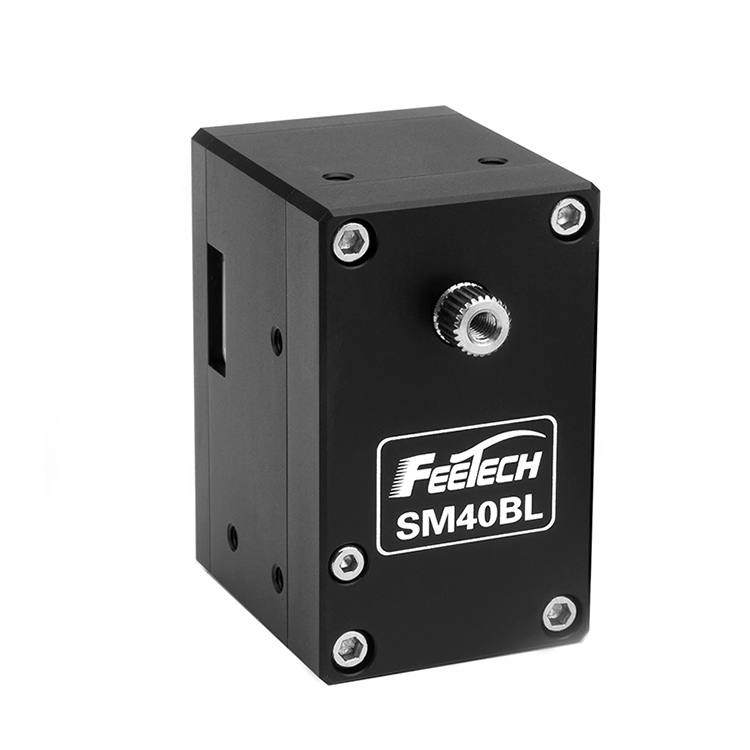

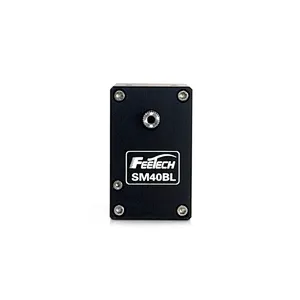

Model Number:SM40BL

Product Description

Product Name	Feetech 40kg All Metal Humanoid Robot Servo Drive by Ardui through Modbus RTU
Material	Metal
Application	Robot
Package	Gif pack

Big Torque:40Kg. cm
Large Angle:+_30 thousand turns(Arbitrary absolute relative)
DC 6.5V~13V power supply
0.088 degree Position resolution

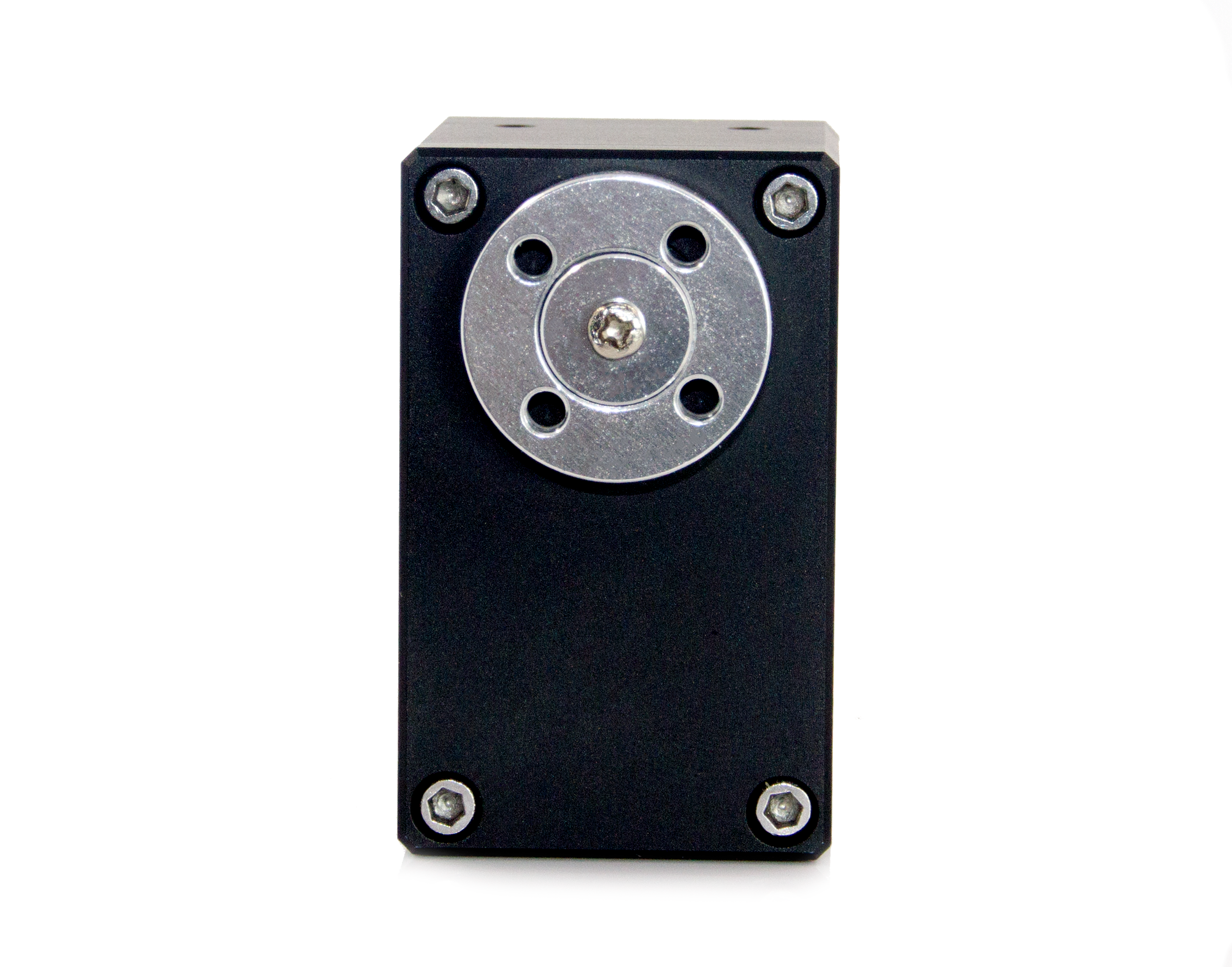

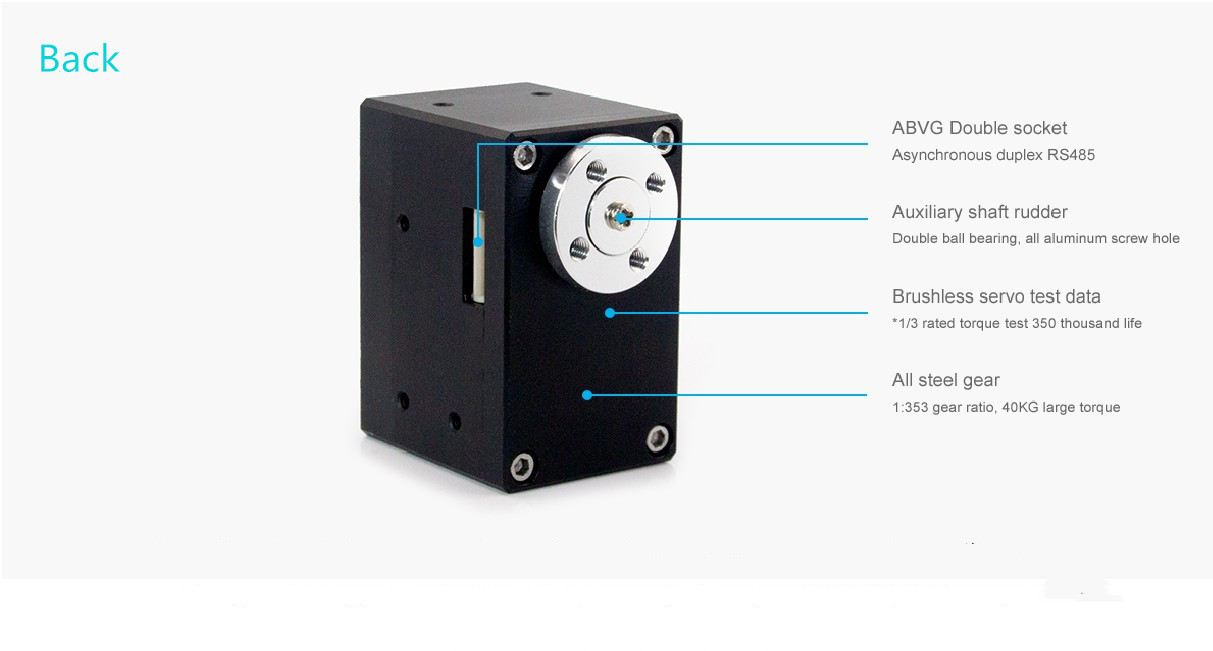

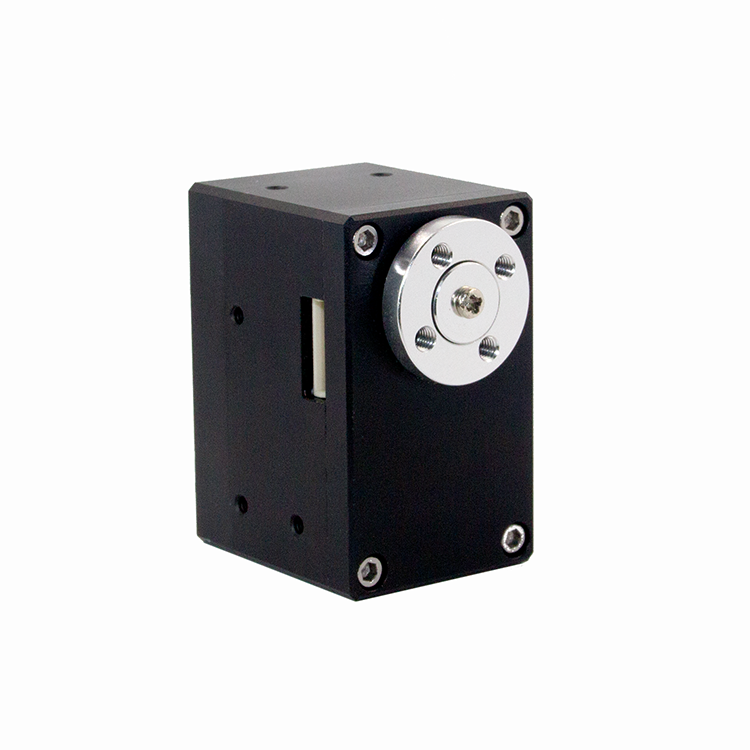

Dual output shaft,fit for robot joint

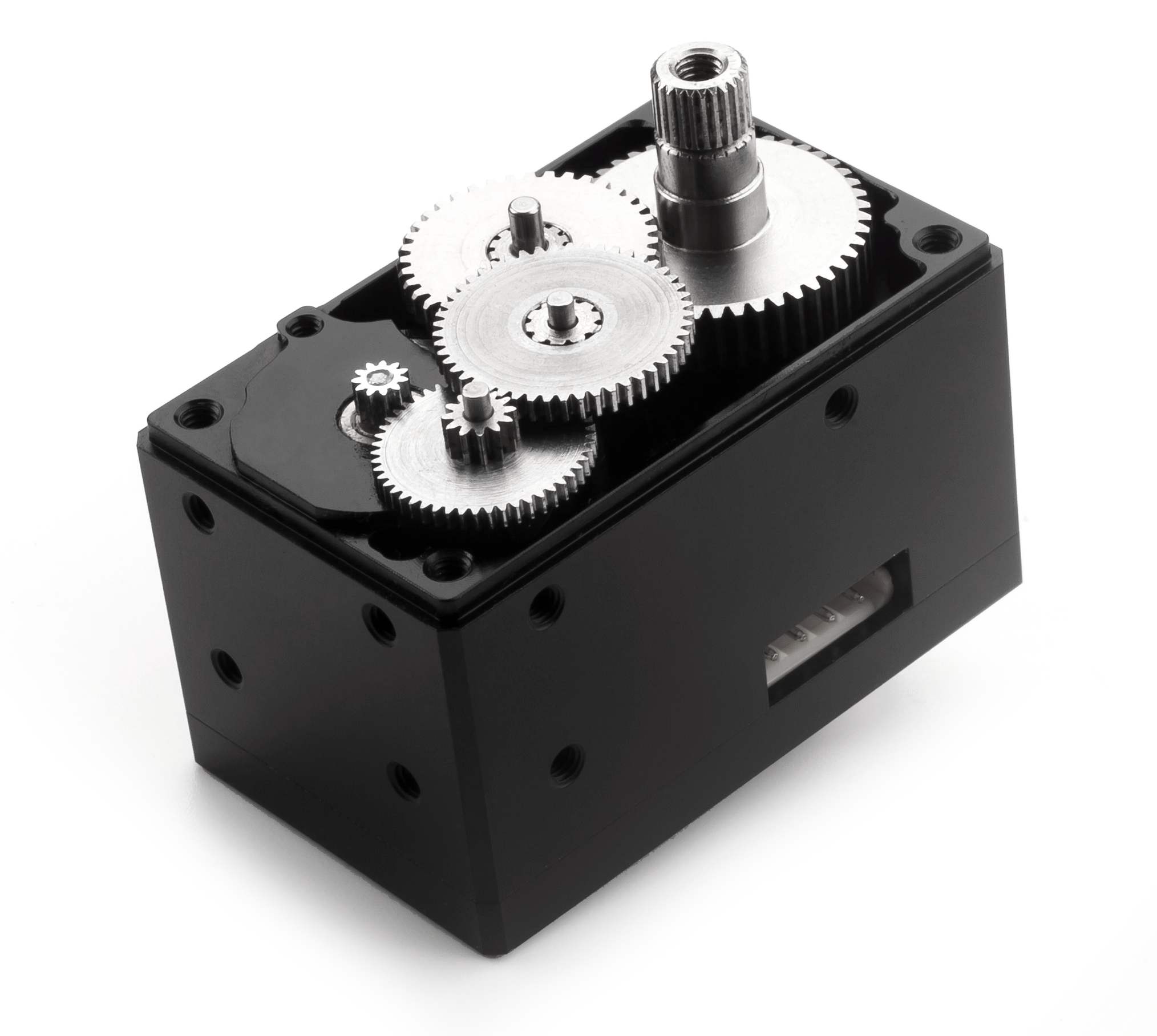

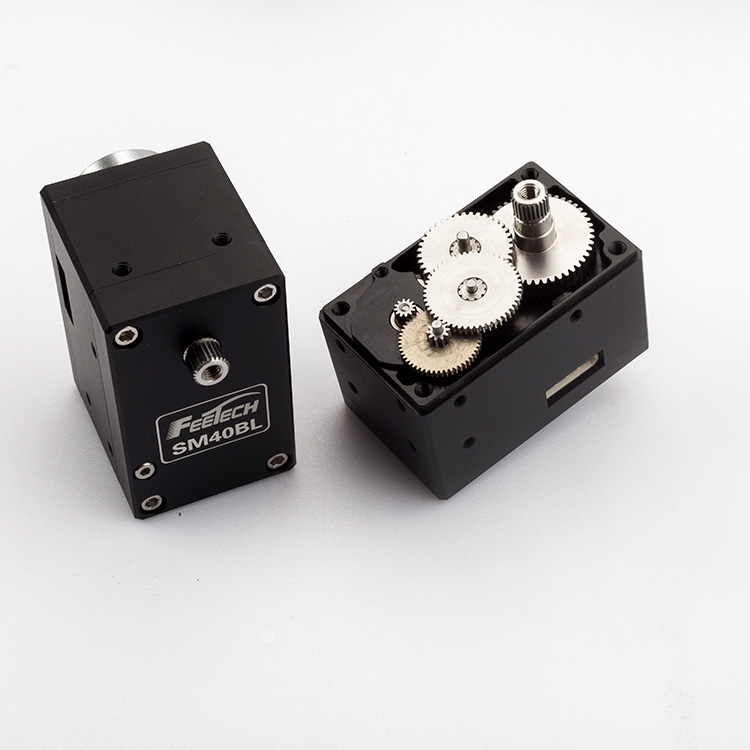

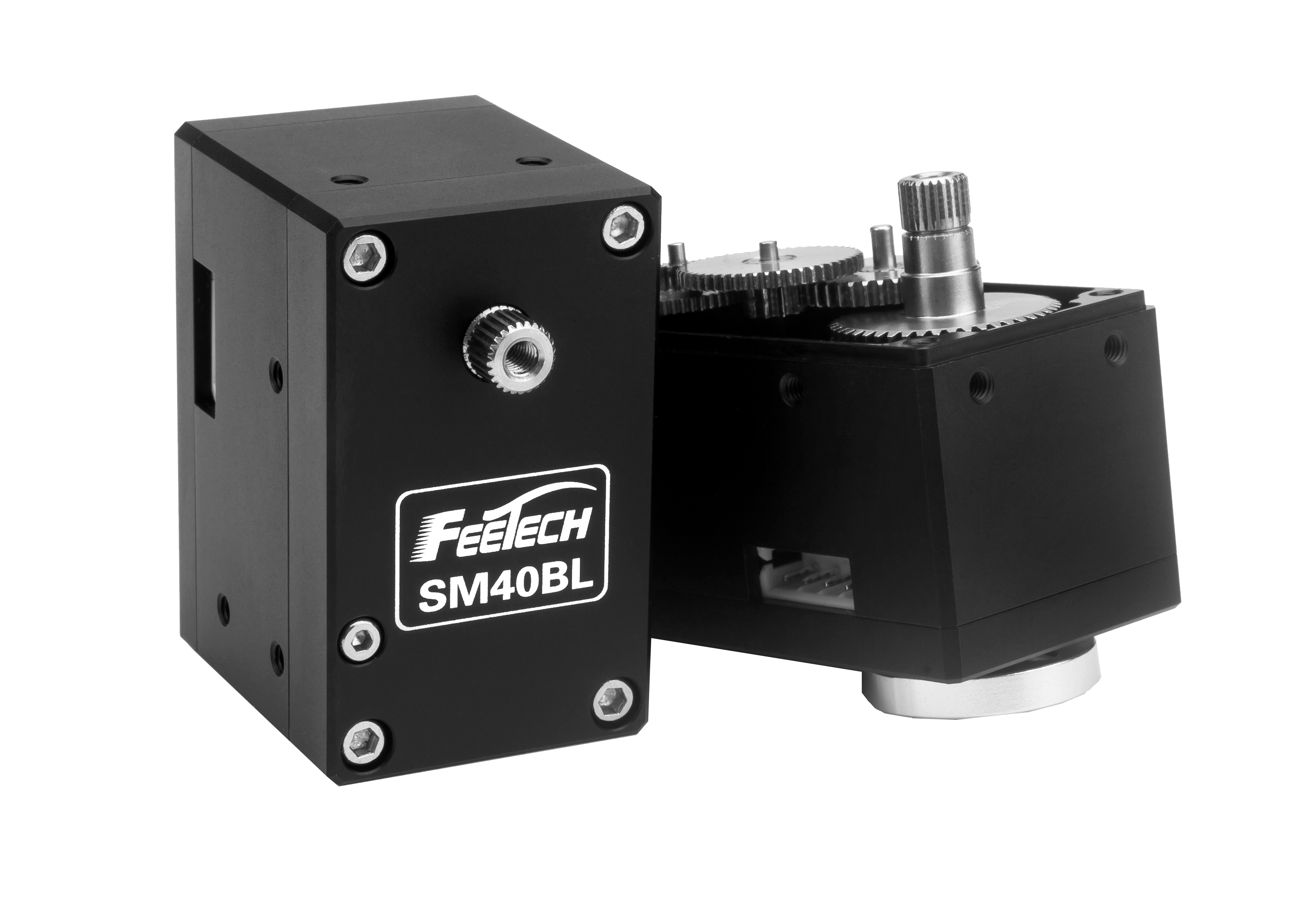

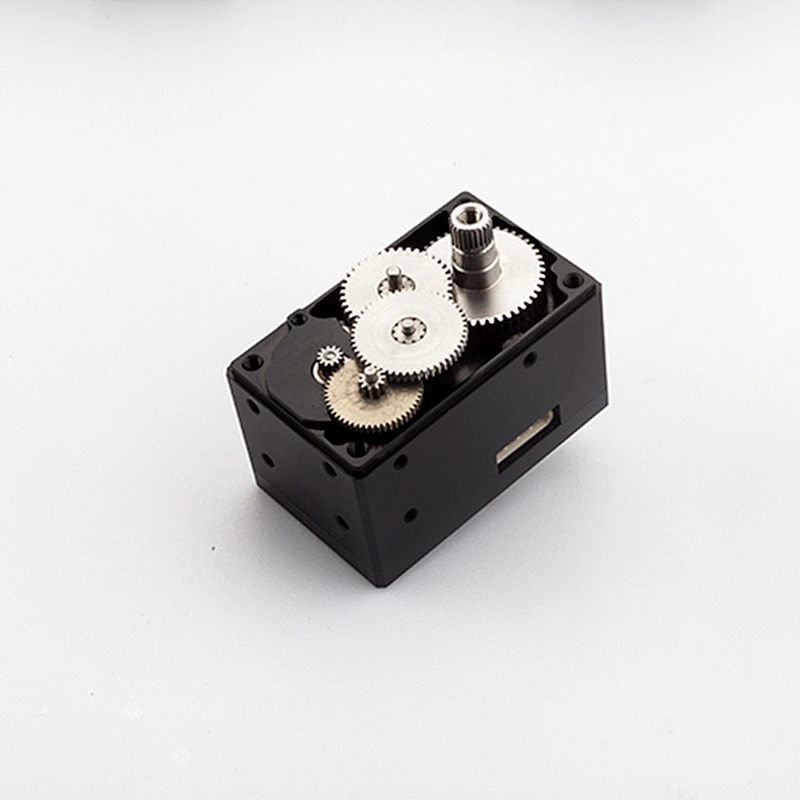

High precision all metal gear set,Double ball bearing
Full Aluminium alloyCNC case,Good cooling effect
Position servo control mode ,rotation range 0-360°and many turns Arbitrary absolute relative angle.
In the speed control mode ,can be continuous rotation,adjust speed
Duplex asynchronous T T L / 4 8 5 Communication level
Daisy chain connection, 254 ID can choose
High reach 1M Baud rate
333Hz servo update rate
Can give feedback on position,temperature,voltage,speed and current load
Use open FT SCS Serial asynchronous communication protocol

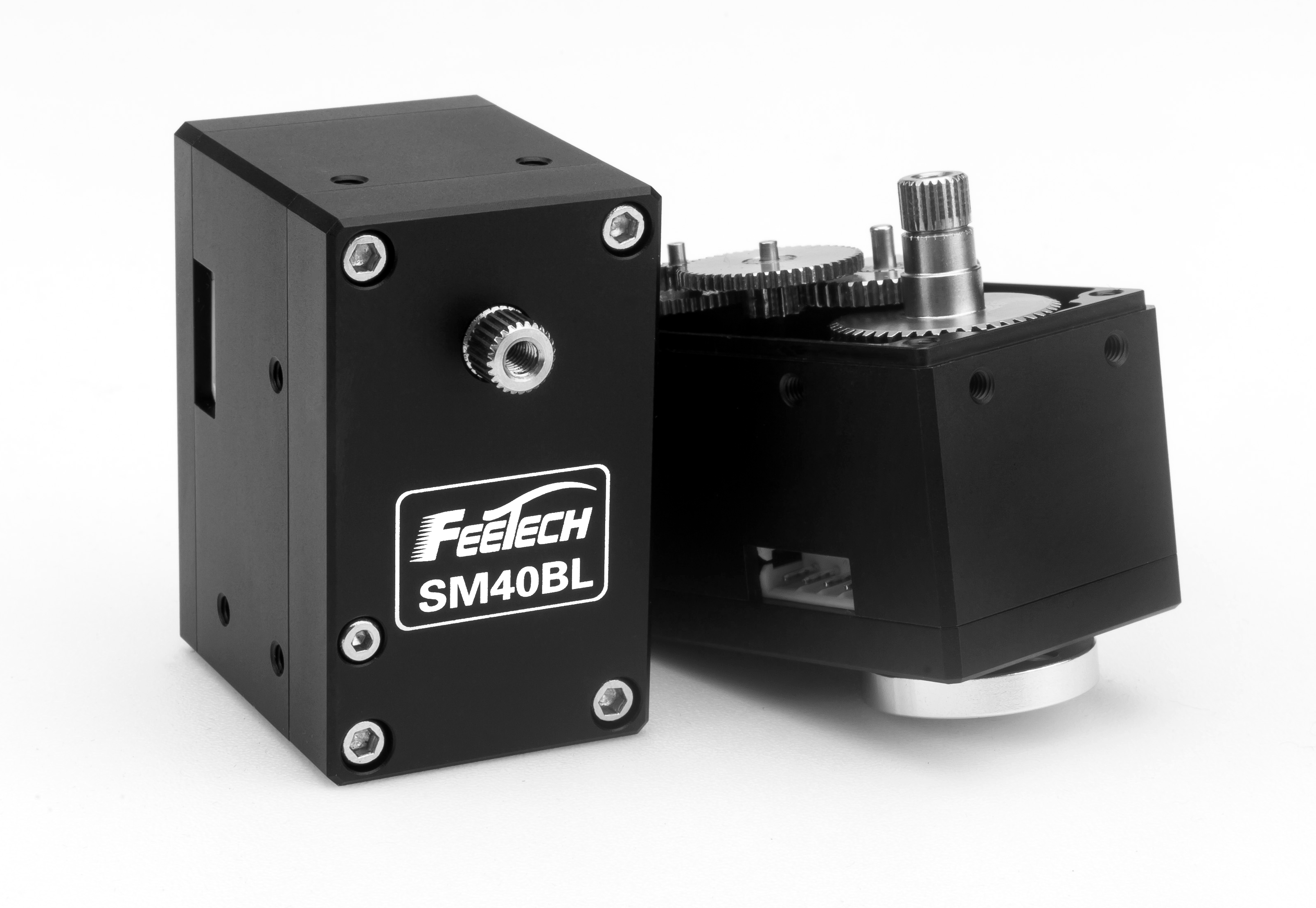

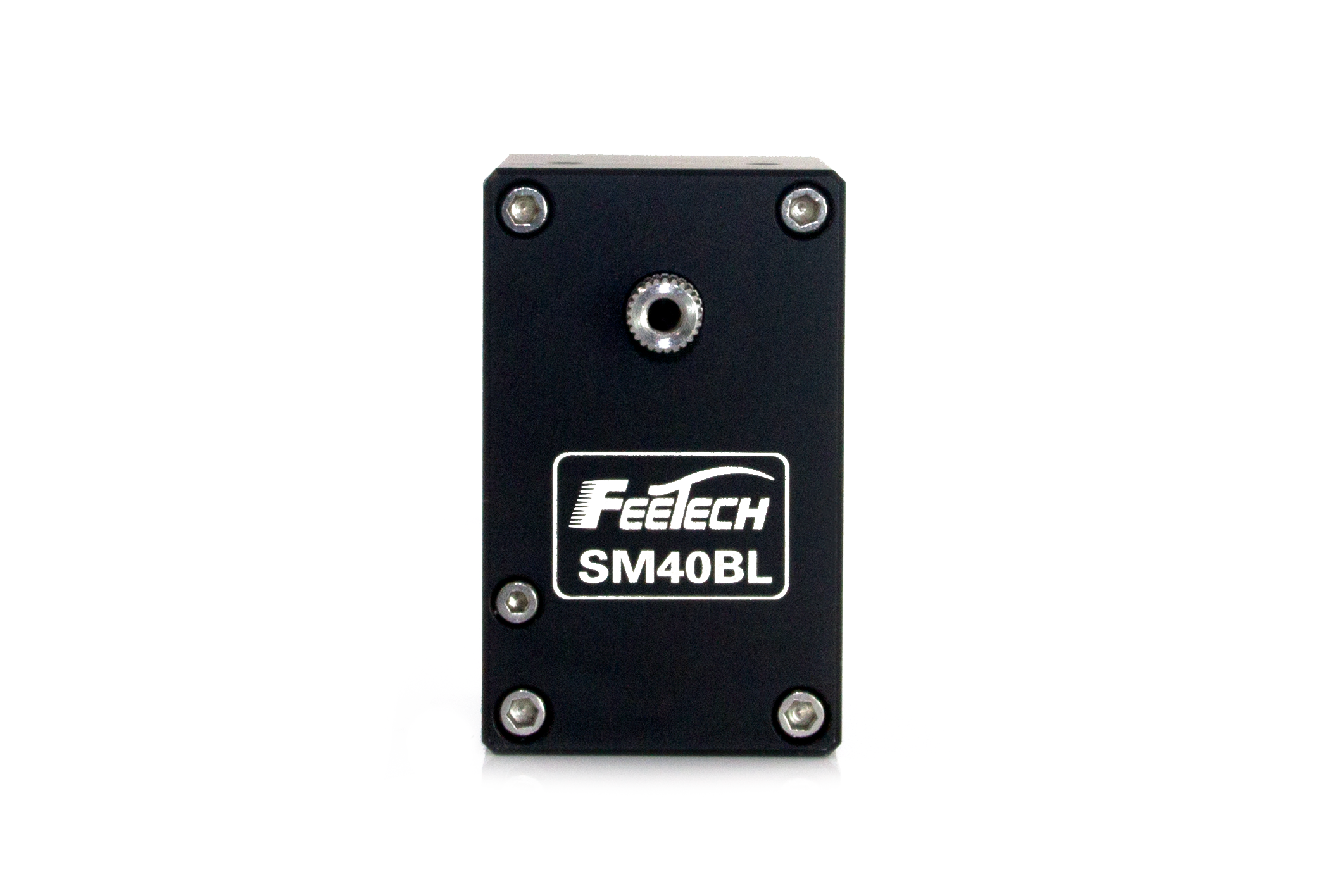

Details Images

Product Usage

Related Products

Packing&Shipping

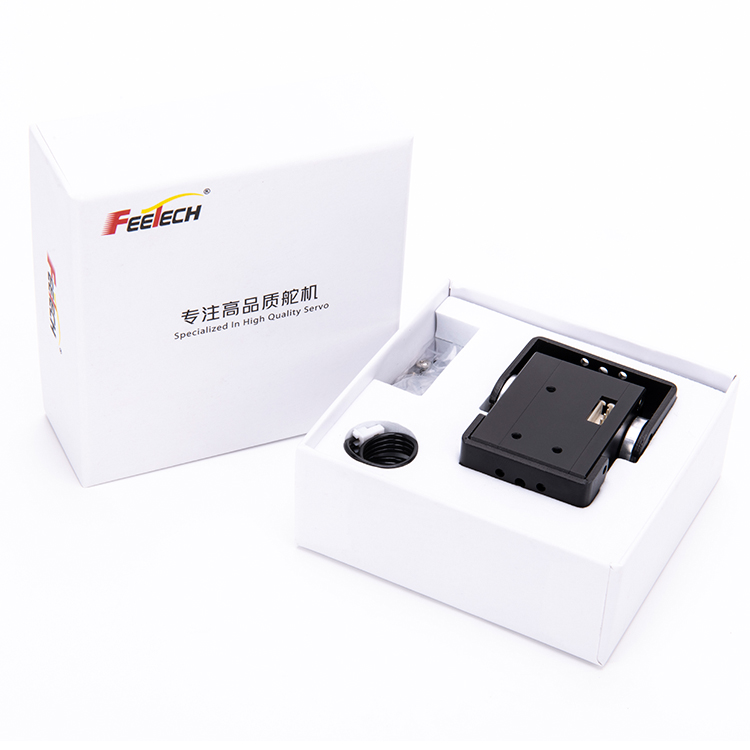

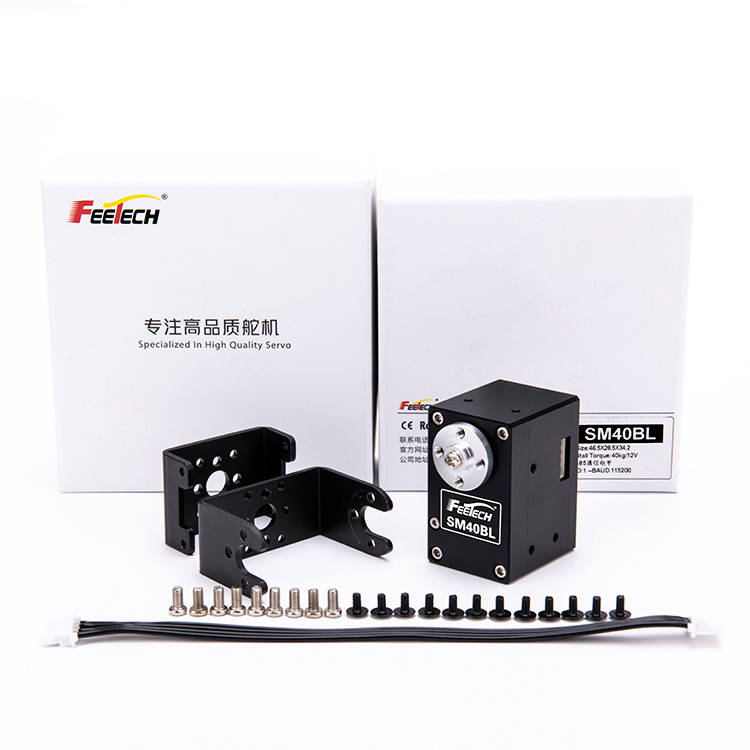

Packing:
-Servo×1PCS
-Servo arm with Screw setX1bag
-1pcs Servo Cable
-1 Pair U Shape Metal Brackets

Company Introduction

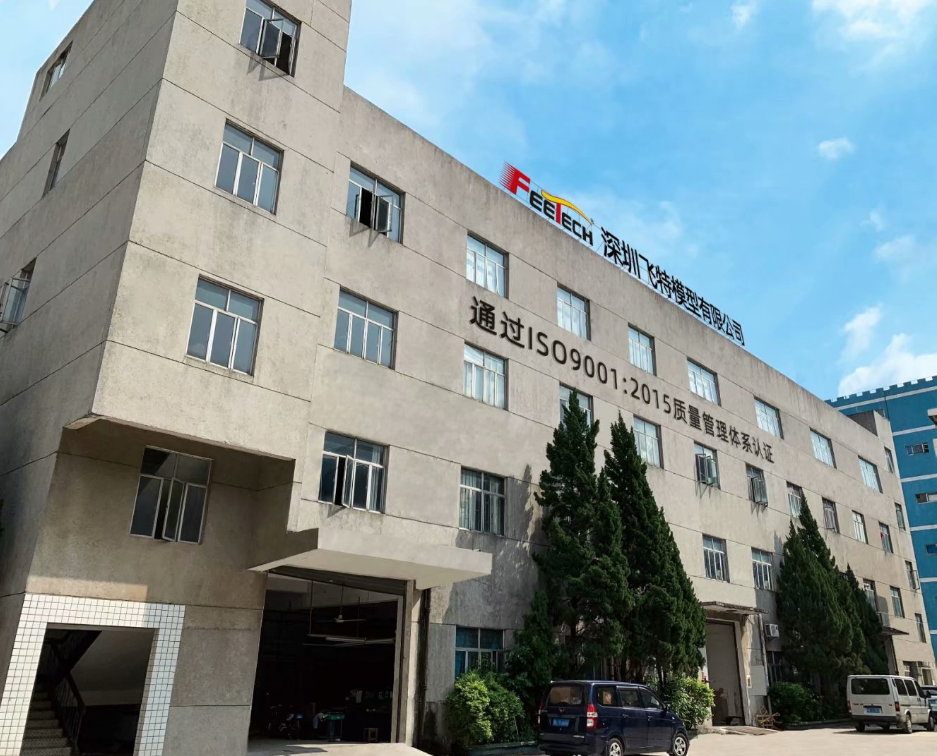

Shenzhen FEETECH RC Model Co., Ltd was established in 2011, We are a research and development, customization, production and sale
of high-quality servos for artificial intelligence products company, Based on the realization of the servo transition curve
constant acceleration technology and precision manufacturing technology, take hold in intelligent modular products which are more
suitable for position control, The products are related to logistics, urban security, medical, military, education, AR industry,
commercial robot and so on. It is committed to providing customized servo and industry solutions for enterprise users, and has
been highly recognized and widely adopted by the partners. Since its development, Feetech has established a deep cooperative
relationship with famous universities, Chinese Academy of Sciences, University of Hong Kong , and major emerging
enterprises.Feetech make arduous efforts to promote the artificial intelligence industry development . The brand of “FEETECH” is
based on the concepts of Flying, Excellent, Efficient and Technology. We look forward to working with you to build a better future
together!

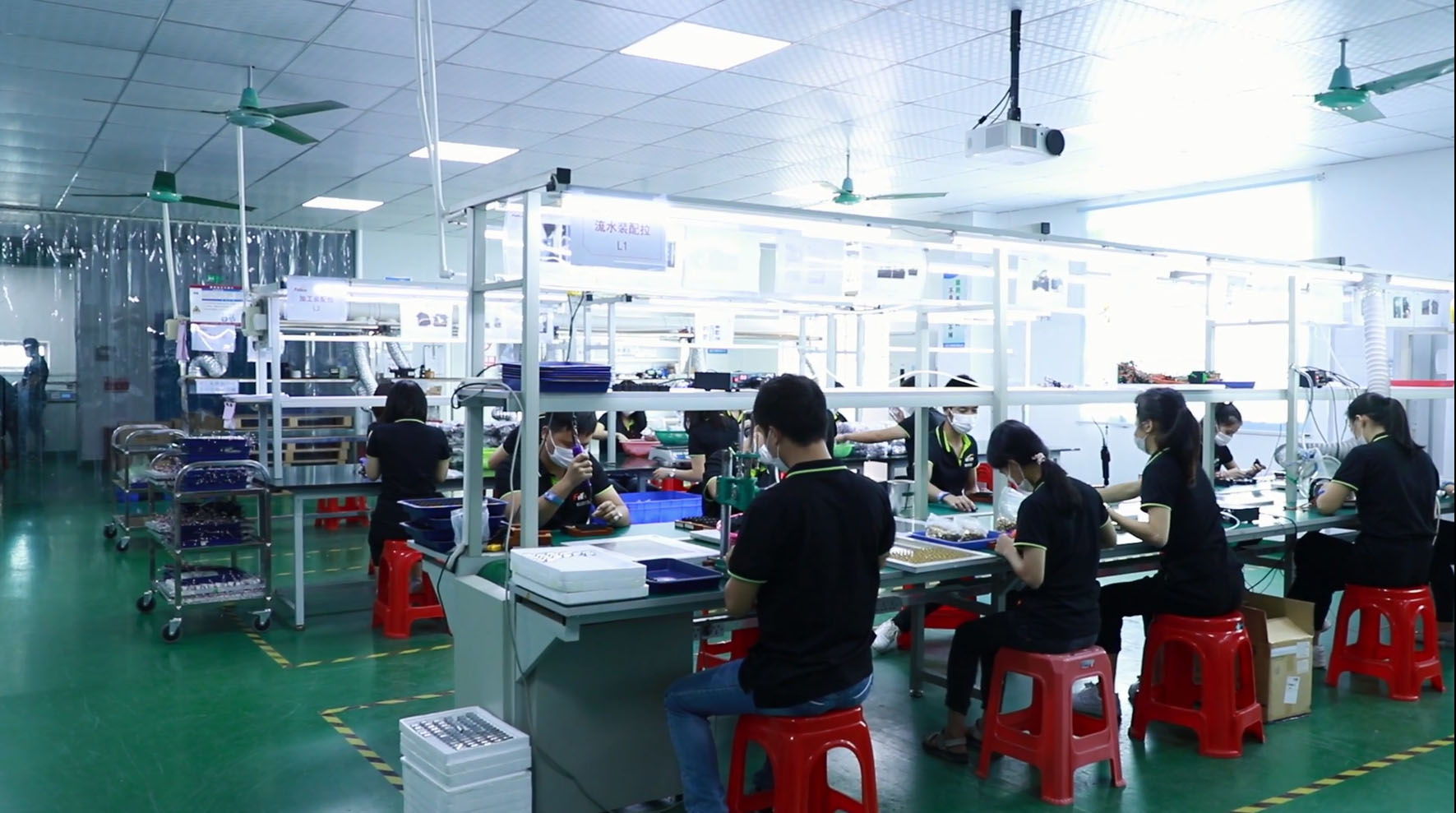

Our Services & Strength

Our Services & Strength
Specialized in ODM and OEM and Custom Made
Shipping
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most
favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight
Collect can also be acceptable.
Payment
We adopt T/T payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are
charged to purchasers.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request
Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible
service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we
will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the
date of purchase.

FAQ

Q:How about your quality?

A:Our quality will be good,and the goods have been checked and tested one by one before shipping.

Q:How long for the delivery once we place order?

A:The lead time is declded the item you ordered and the quantity.

For normal order,the lead time is about in 5-7 days,

If big quantity or OEM,the lead time will be some days more.

Q:The price you are offering is with shipping costs included?

A:The price does not include the shipping cost.We offer several

shipping solutions,make sure customers choose the most economical one.

Q:Do you have After-Sales Service?

A:Of course,We have special department to do it,and if you have any technology

problem,our eingeer will give your answer.
