- MCU:STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
- IMU:MPU6000 (SPI1) & ICM20602 (SPI4)
- Baro:Infineon DPS310 (I2C2)
- OSD:AT7456E (SPI2)
- Blackbox:MicroSD card slot (SDIO)
- website:www.lxrcmodel.com
- Certification:ce
- Gender:Unisex
- Age Range:14 Years & up
- Use:Vehicles & Remote Control Toys
- Place of Origin:CN;GUA
- Type:Flight Controller
- Brand Name:Matek
- Model Number:H743-WING
Matek Mateksys H743-WING STM32H743VIT6 MPU6000 Built-in Barometer OSD Blackbox 3-8S Flight Controller forRC Airplane Fixed Wing
What is the Details of our Product?
FC Specifications
MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
IMU: MPU6000 (SPI1) & ICM20602 (SPI4)
Baro: Infineon DPS310 (I2C2)
OSD: AT7456E (SPI2)
Blackbox: MicroSD card slot (SDIO)
7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
13x PWM outputs(including “LED” pad)
2x I2C
1x CAN
6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
1x SPI3 breakout
USB/Beep Extender with Type-C(USB2.0)
Dual Camera Inputs switch
5V/9V(12V) for Camera/VTX power switch
High-precision Current Sense
ADC VB2 voltage divider: 1K:10K
ADC AirSpeed voltage divider: 10K:10K
INAV TR/SA VTX control: Yes
Beeper : Yes
RSSI: Yes
Analog Airspeed sensor: Yes
Digital Airspeed sensor: Yes
Static power 160mA@5V
FC Firmware
ArduPilot(ChiBiOS): MATEKH743
INAV: MATEKH743 (To be supported soon)
BetaFlight: MATEKH743

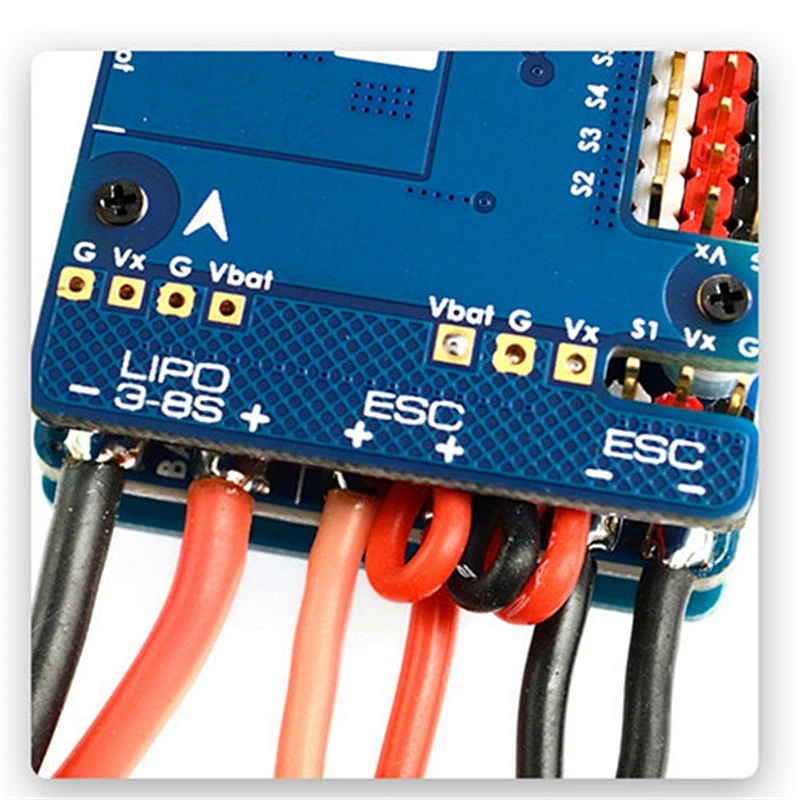

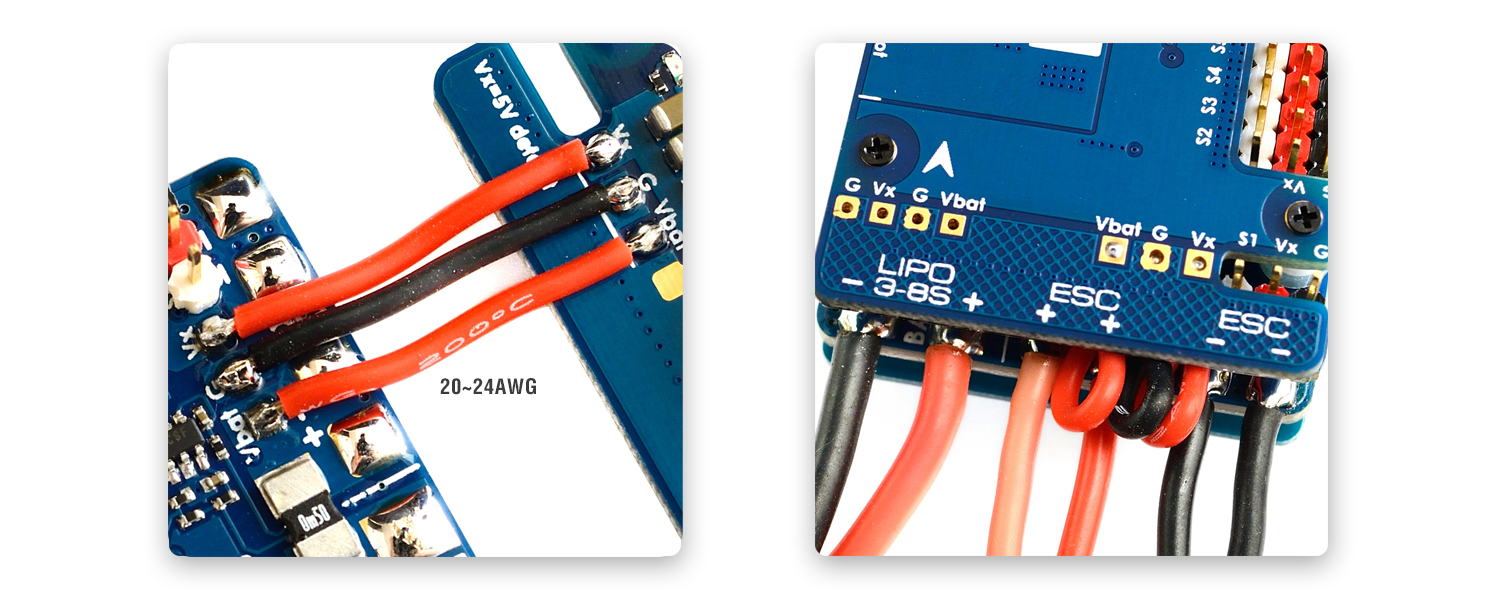

PDB
Input voltage range: 9~36V (3~8S LiPo) w/TVS protection
2x ESC power pads
Battery Voltage Sensor: 1:10 (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
Current Senor: 132A, 3.3V ADC (Scale 250 in INAV, 40 A/V in ArduPilot)
Sense resistor: 60A continuous, 132A burst.
BEC 5V output
Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
Continuous current: 2 Amps, Max.3A
BEC 9V /12V output
Designed for Video Transmitter, Camera, Gimbal ect.
Continuous current: 2 Amps, Max.3A
12V option with Jumper pad
BEC Vx output
Designed for Servos

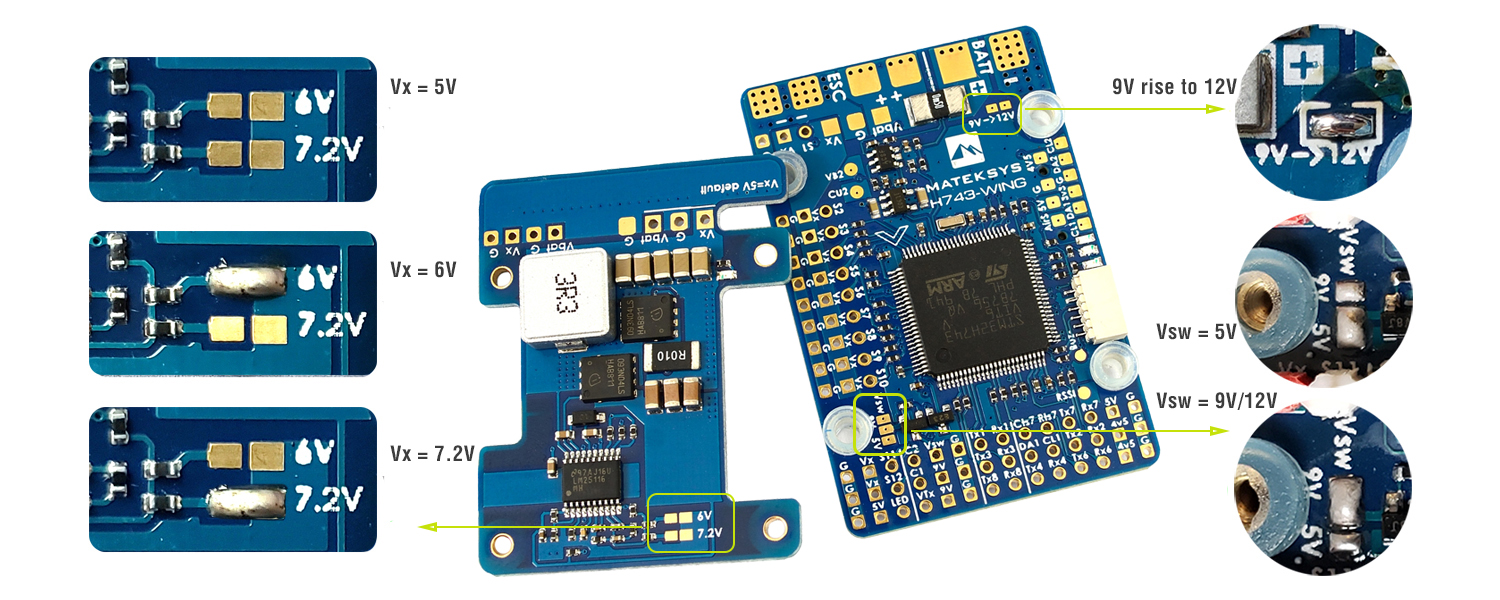

Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current: 8 Amps, Max.10A
BEC 3.3V output
Linear Regulator
Continuous current: 200mA
Physical
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

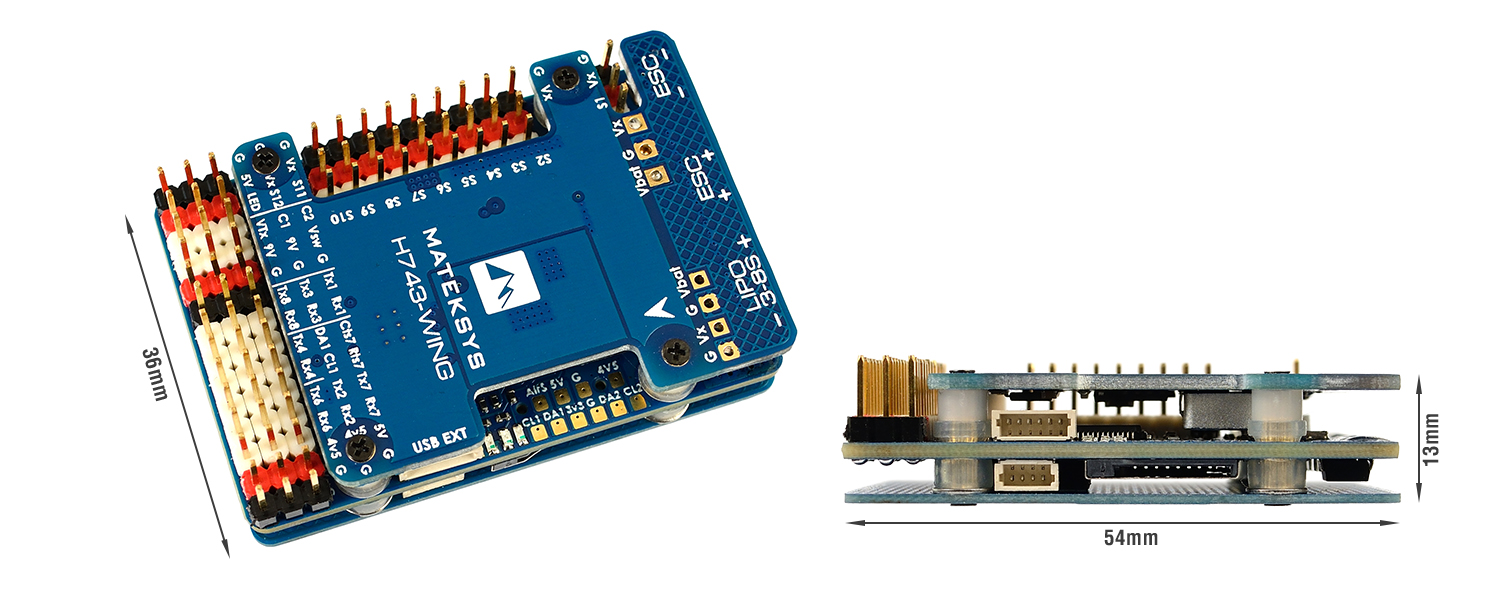

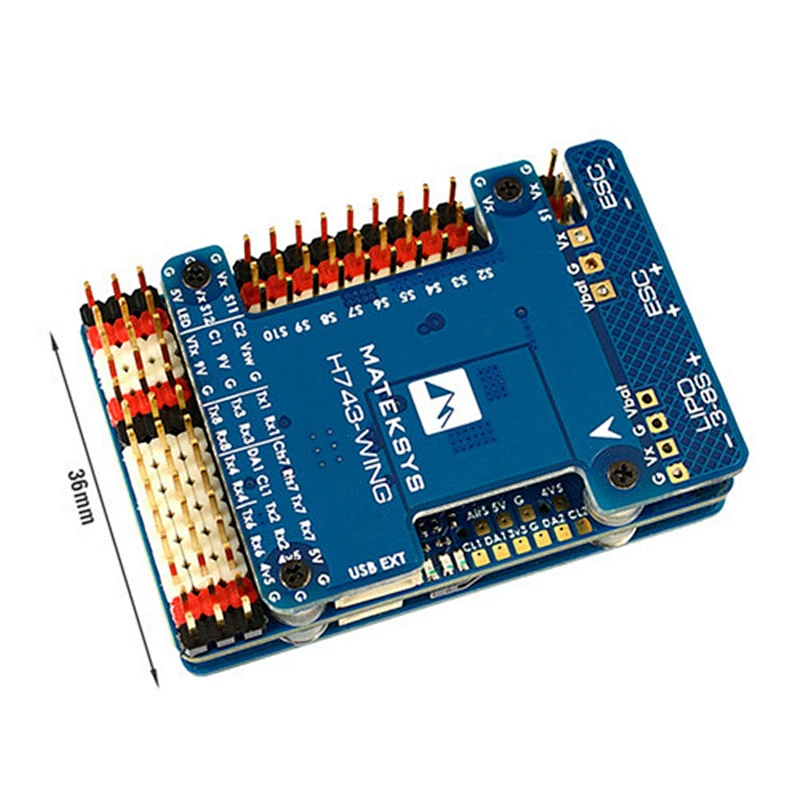

Dimensions: 54 x 36 x 13 mm
Weight: 30g with USB extender

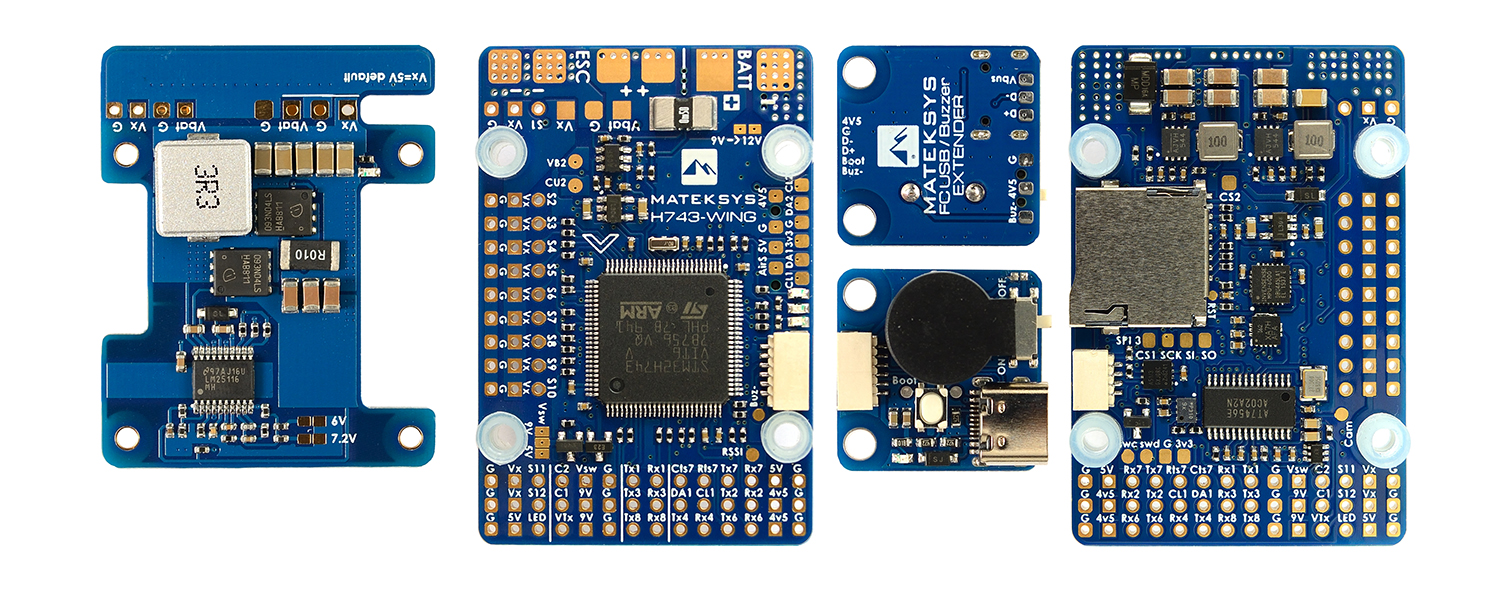

Product Pictures
PACKING AND SHIPPING
H743-WING x 1

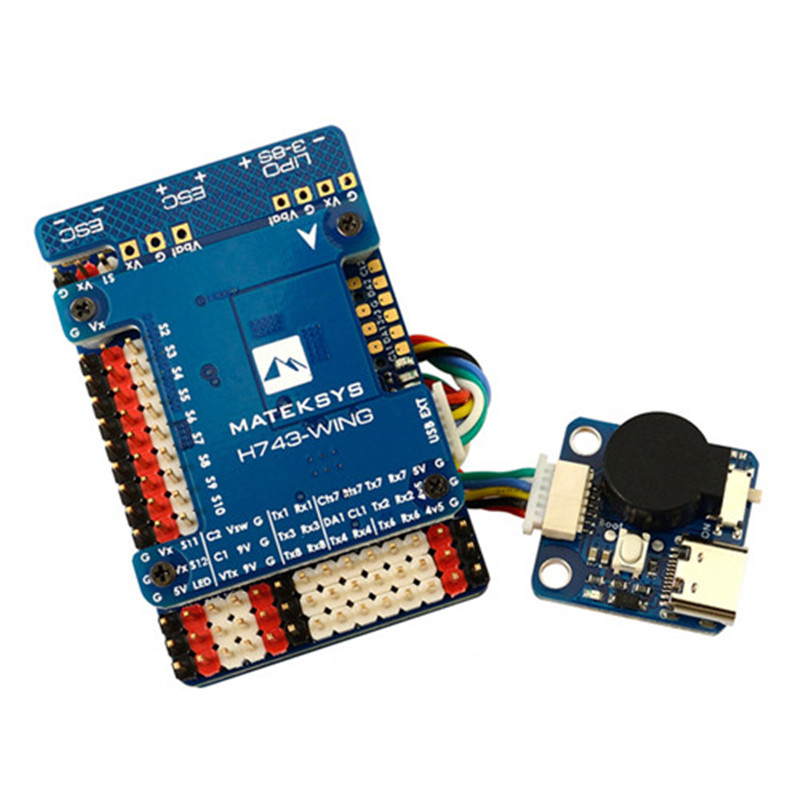

USB/Beep Extender x 1
