- Servo type:Standard digital servo
- Gear materials:metal gears
- Motor type:Cored motor
- Dead band width:2usc
- Color:Blue
- Product name:Rc car servo
- Function:Forward
- Certificate:ROHS
- Product size:40*20.*40.4mm
- Feature:Remote Control Model
- Type:Car
- Power:Battery
- Material:METAL
- Scale:1:10
- Radio Control Style:RC Model
- Place of Origin:CN;GUA
- Brand Name:fitec
- Model Number:FT5325

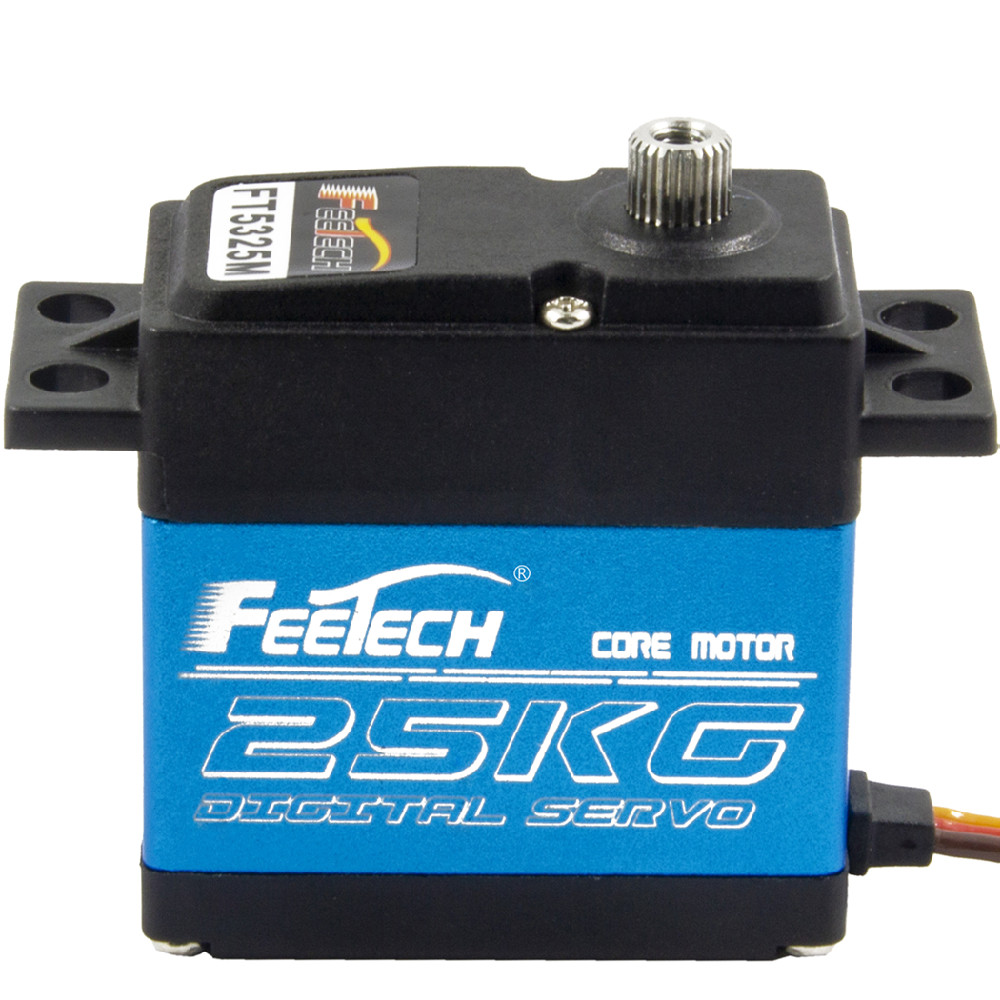

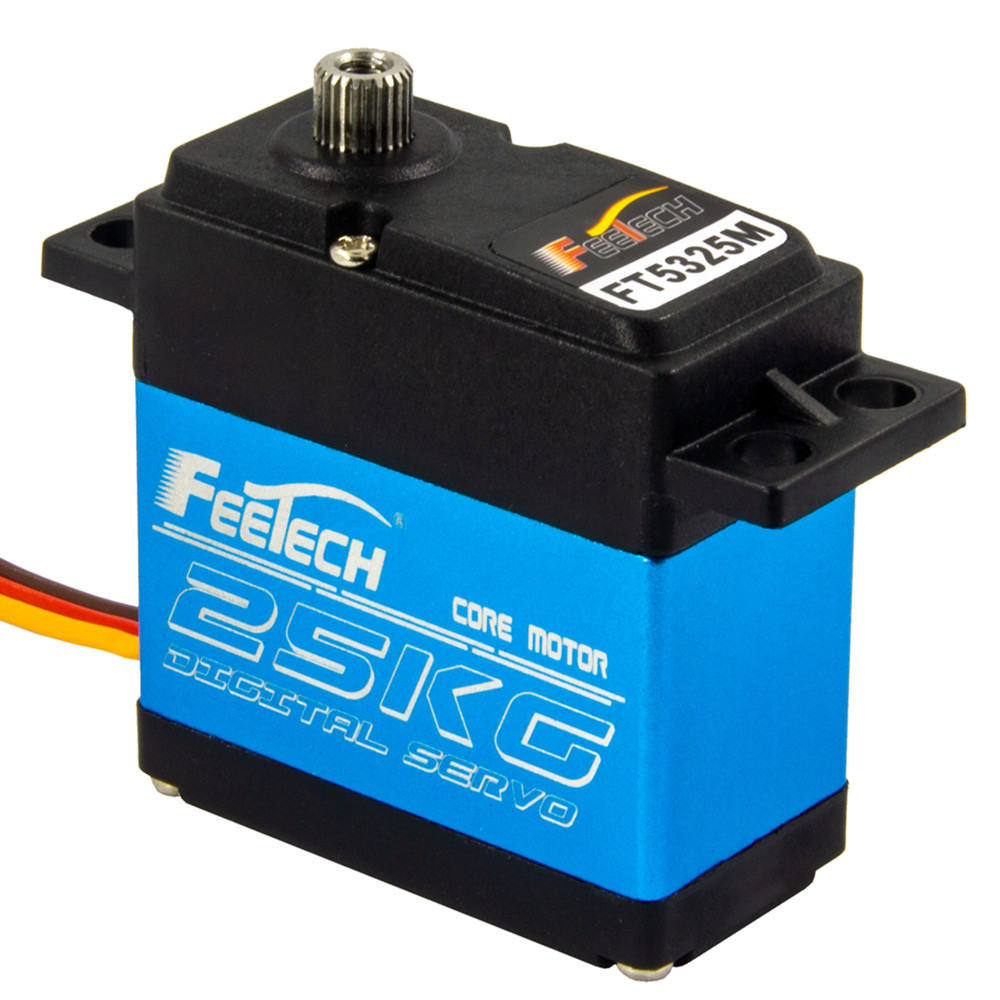

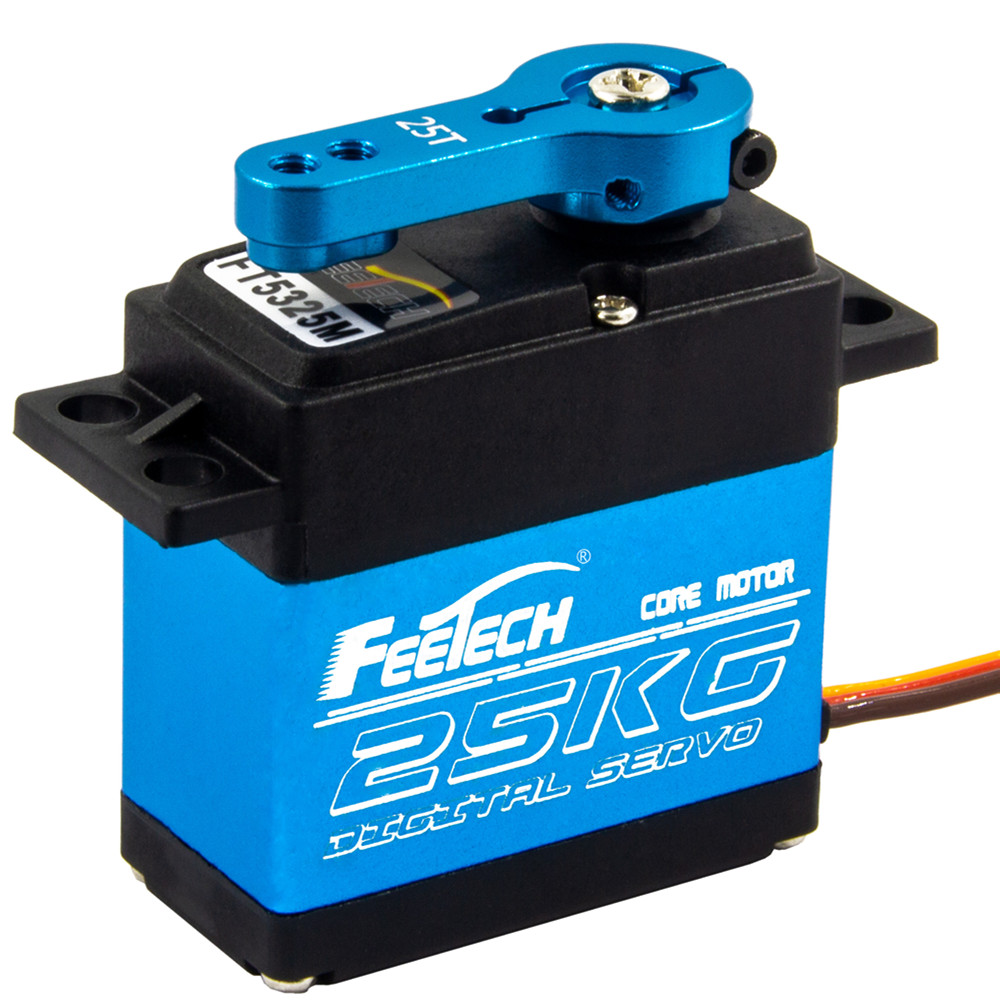

1.standard 25kg torque digital rc car steering servo
2.Best choice for RC car 1/8

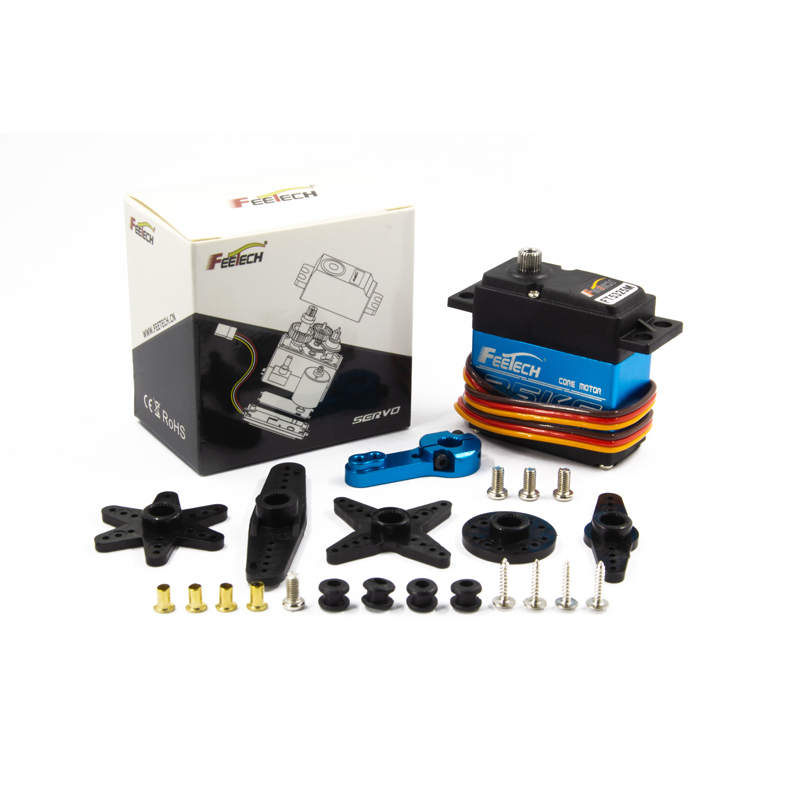

3.Accessories attached
4.ROHS CE compliance
Features

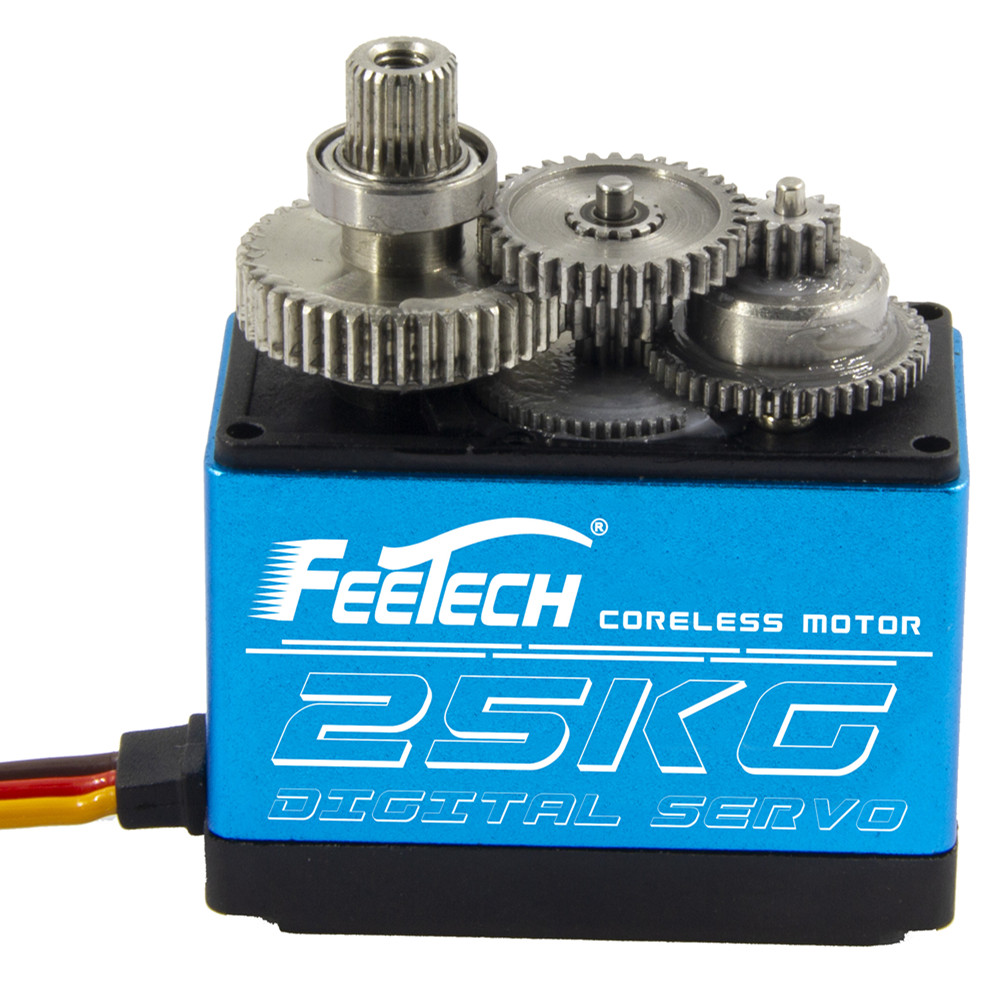

-Standard digital metal gears servo,2BB
-Metal brush motor,Aluminium middle hull
-Waterproof
-Operating Voltage: 4.8~7.4V
-Dead band width: 2usc

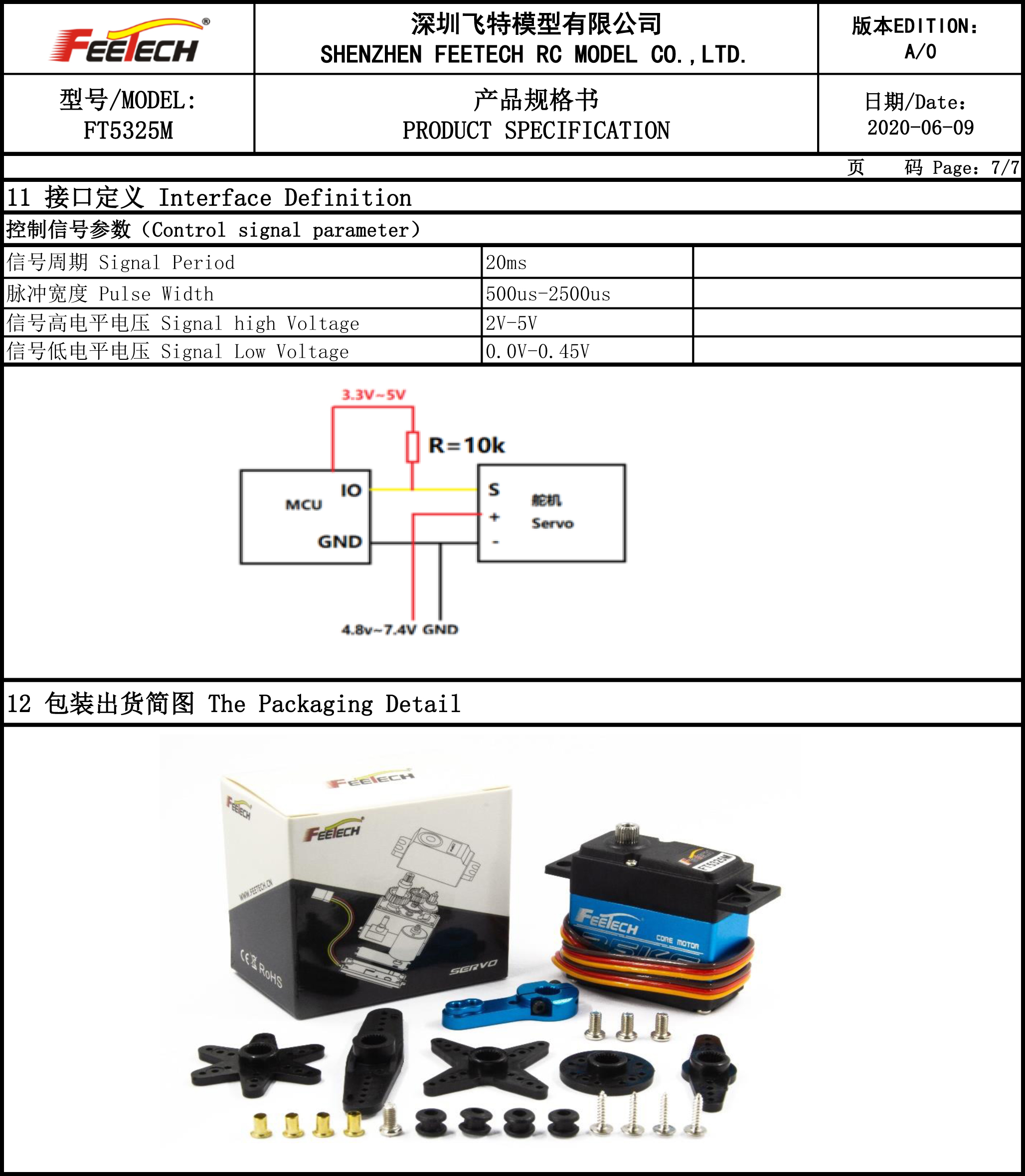

-Interface: (like JR)
-Wire length: 30cm

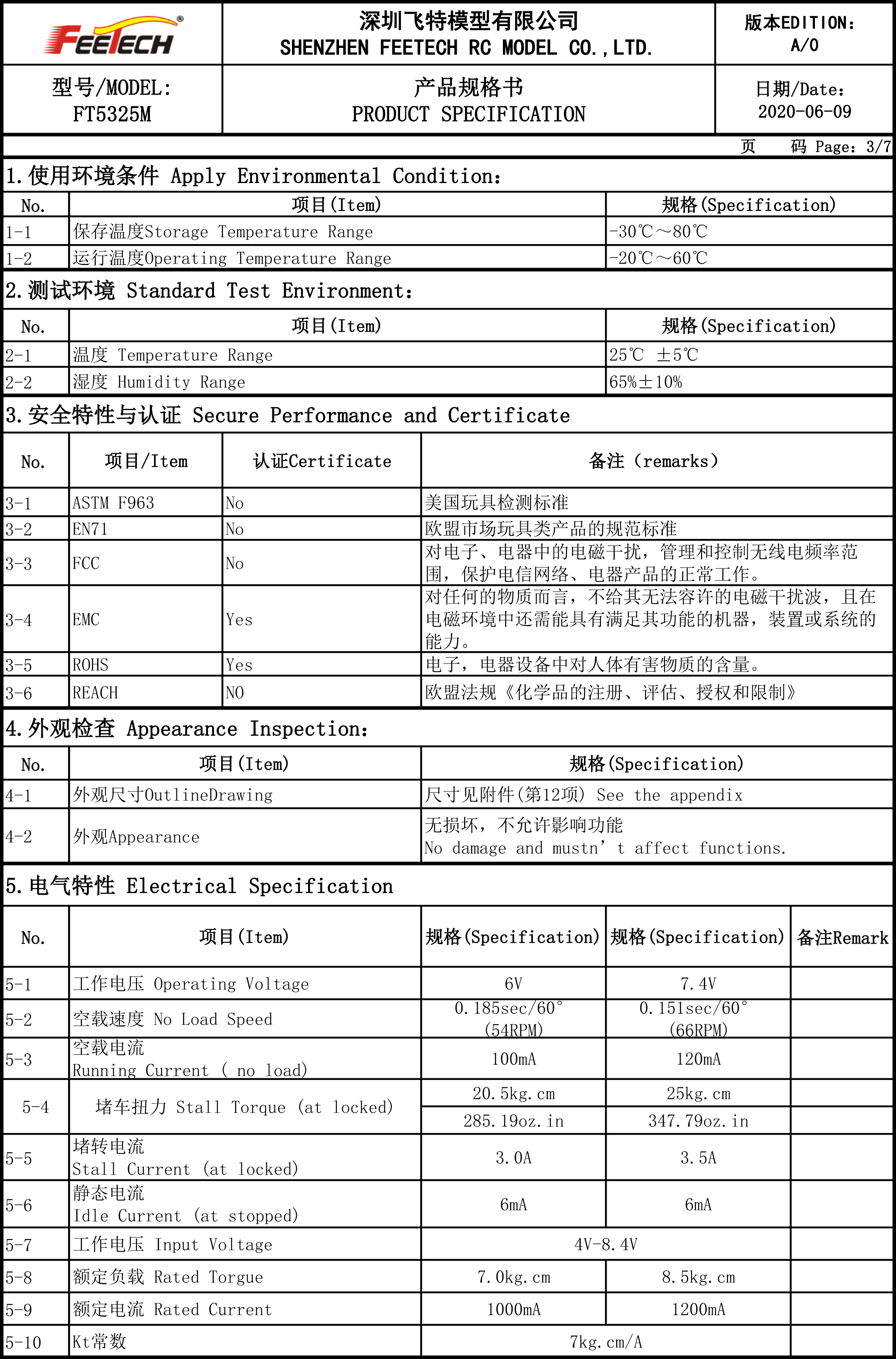

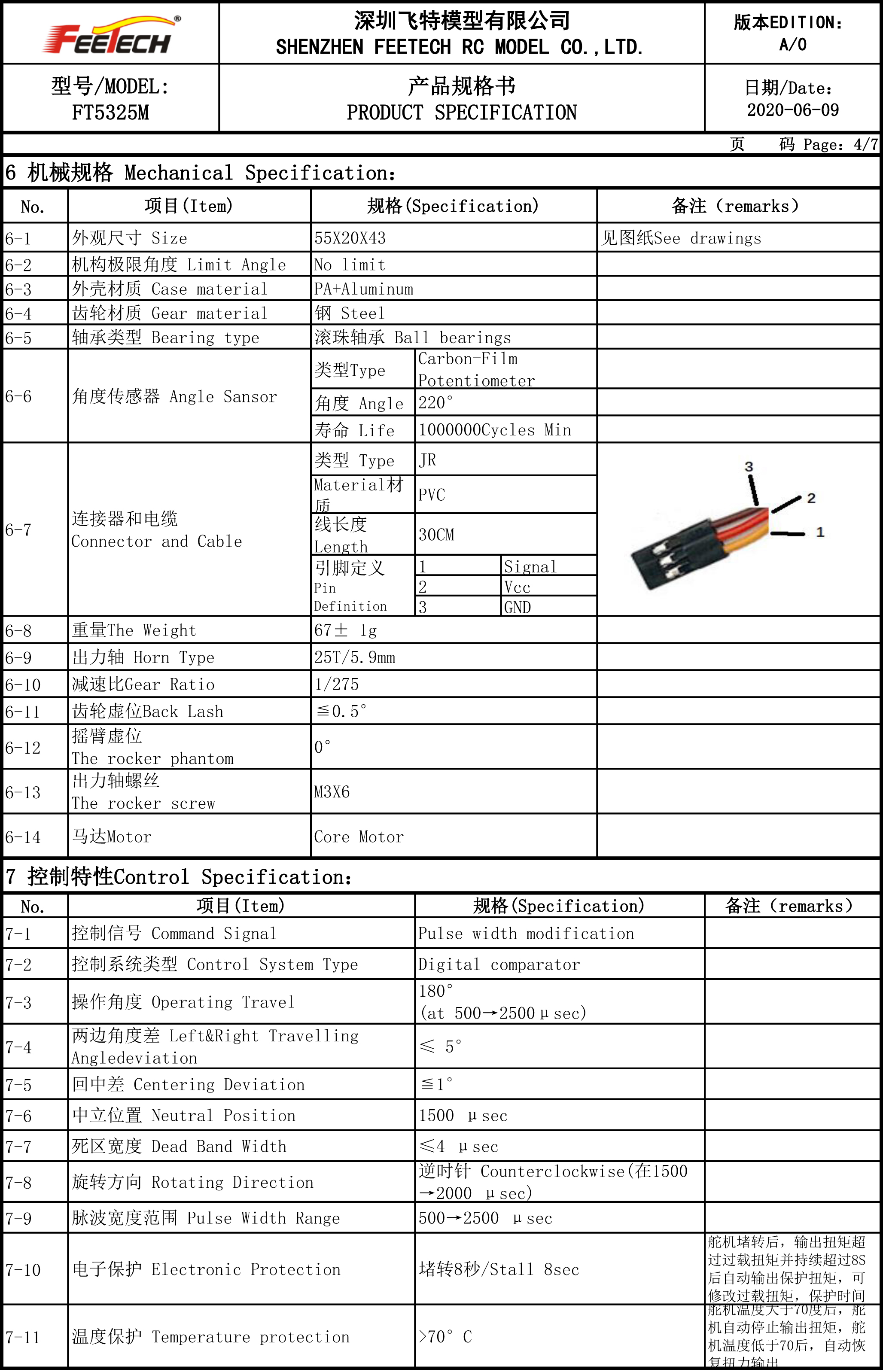

Specifications
Power 6V 7.4V
Speed 0.185sec/60° 0.151sec/60°
Torque 20.5kg.cm/ 263.8oz.in 25kg.cm/298.5 oz.in
Weight 67g

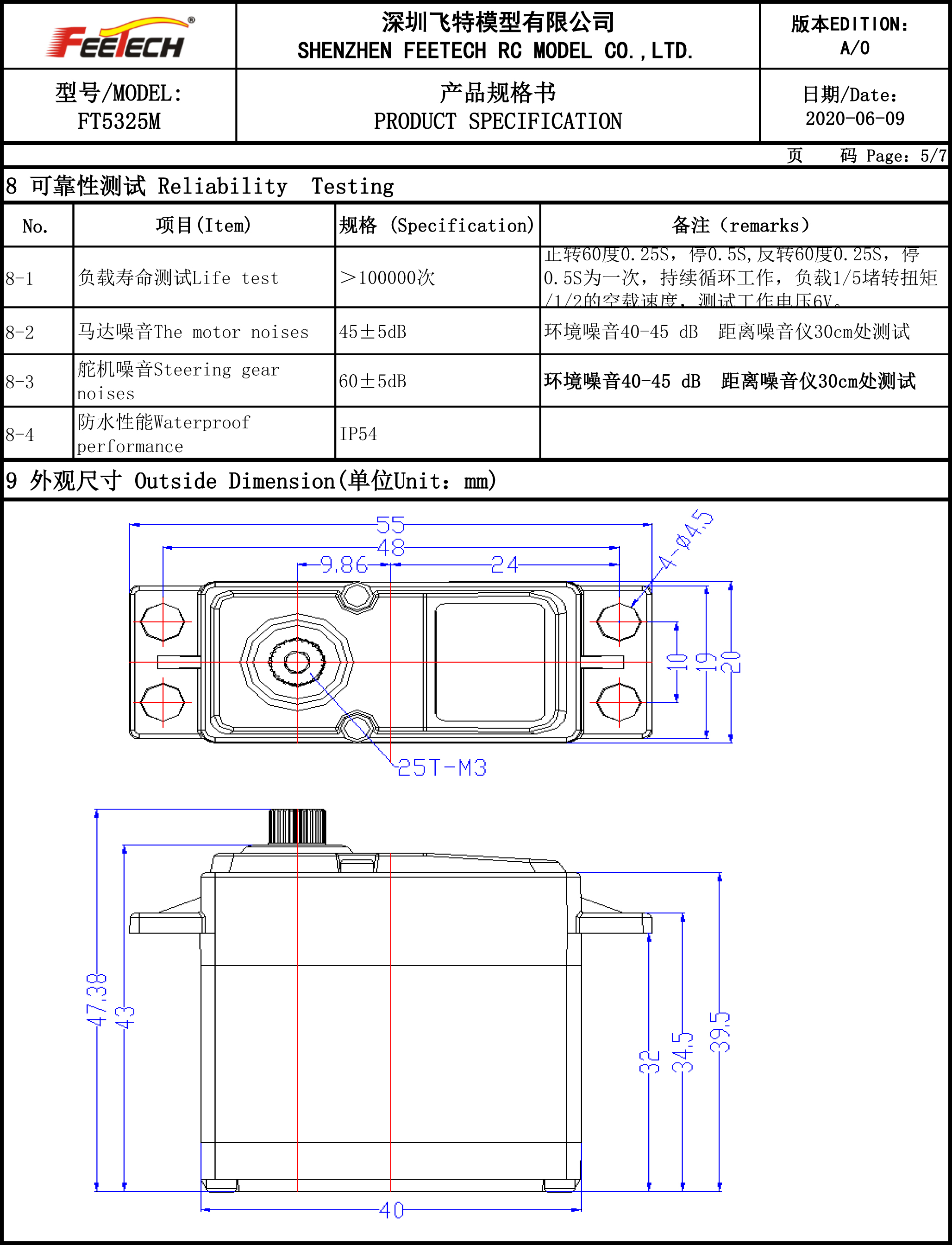

Size 55*20.*43mm
Application Air plane,Car,boat
Notice:
-Refer to the figure when installing the servo accessories. Caution: For engine powered
airplanes, helicopter, vehicle model, must use rubber shock pad to fix.
-Please choose correct model for your application.
Caution: Torque over-loaded will damage the servo’s mechanism.
-The products use coreless motor; please choose the right power voltage of
servo according the specification. Please pay more attention that it may affect unnormal
working or damage of servo if using the servo oversteps the normal range of voltage.
-Keep the servo clean and away from dust, corrosive gas and humid air.
-Our company keeps the right of amendment, if there are some changes of parameter
and appearance, without notice.
1. What's the packing of Feetech Products?
-Gift box or PE bag in standard exporter carton
2. What's the Shipping Meathod?
It is according to your requirements.
1) Generally, shipping by air express(such as DHL,EMS, TNT and so on)
2) Freight Collect
3) The cheapest China Post is also available
3. When will customer get the parcel?
Feetech handling time is 3-7 working days.
And then ship out by air. The tracking no. will be forwarded to you within 48hours after ship out.
Our Top-5 Advantages:
1. Quality: Quality is Feetech's Culture!Material: titanium gear, aluminum middle case, dual ball bearing and so on.
2. Price: Our price are quite competitive whatever in China or in the world.
3. Services: ONE-YEAR-WARRANTY and Best Quickly Reply!
4. Package: gift packing box in standard export cartons!
5. OEM&ODM:We have our own brand “Feetech”, and OEM&ODM are welcome.
Our Quality:
Quality is the life of Honesty. We use only the best quality (original) components to ensure the standard of our product range is of the highest caliber.
All products we sold out are strictly selected and tested by our QC department.
Warranty:
We provide 1-year warranty for all of our products.
Payment:
We accept payment via TT (Bank transfer), Paypal, Western Union and etc.
We accept bank transfer for large orders. For small order, you'd better pay Paypal.
Import taxes:
When you import products from another country, there is always the possibility of paying import taxes. We can help you reduce and avoid import taxes by declaring prices low, declaring the contents as"gift"or other items and shipping in simple packaging.
Do you have any question? Contact me now! We look forward to cooperating with you!
