- Application:Robot
- Product name:Robot servo
- Brand:Feetech
- Material:Plastic
- Function:controller
- Torque:40kg
- for:SMS RS485 Servo SCS servo
- Certificate:CE ROHS
- Color:Yellow
- Model part:URT-1
- Type:Car
- Power:Battery
- Material:plastic
- Plastic Type:ABS
- Scale:1:5
- Radio Control Style:RC Hobby
- Place of Origin:CN;GUA
- Brand Name:Feetech
- Model Number:FT-URT-1

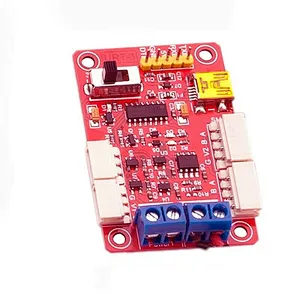

Product Description
Product Name | FE-URT-1 Multi function serial port signal converter USB/URAT TO SMS(RS485)&SCS(TTL) Servo |
Material | Metal |
Application | Robot |
Package | Gift pack |
1. Functions
URT-1 multifunction serial signal converter, in order to facilitate the user to debug and use SMS and SCS composite Feite series serial servo design.
URT-1 integrated USB serial port chip, combined with linear low-voltage differential voltage regulator circuit, USB signal can be easily converted to 5V or 3V3 serial signal level.
In the URT-1 board, serial signal conversion circuit respectively into two different levels of signal, which A road -asynchronous
half duplex RS485 level port can be connected to the SMS series servo; B - asynchronous half duplex TTL level single bus port can
be connected to the SCS series of steering gear.
In the URT-1 board in the input and output signal by using asynchronous serial time-sharing using hardware circuit, hardware
automatic diversion, without the use of additional IO enable to control, reduce the occupation of MCU port burden and code simple.
USB port using USB MINI interface; UART interface with 2.54 row spacing general; SMS series servo interface using 5264-4AW
interface can be directly connected to the steering gear; SCS series servo interface using 5264-3AW interface can be directly
connected to the steering gear.
The working voltage of SMS and SCS series servo fit is not the same, reuse requires a different working voltage, power supply port
and can also access the SCS from the SMS section of the step-down power supply high voltage after making the system with a power
supply to provide power.
Because the power port has overcurrent limit, the maximum is 6A, so it is necessary to do additional power distribution processing
in the actual application of the serial connection of more servos. URT-1 is only used for signal conversion.
2. Functional Features
Full speed USB device interface, compatible with USB V2.0
Support baud rate 50bps~1Mbps
5V and 3V3 UART serial port signal level can be switched freely
Supports 32/64 bit Windows 10/8.1/8/7/VISTA/XP, SERVER 2016/2012/2008/20032000/ME/98
Microsoft digital signature authentication
SMS and SCS series servos can be shared by one serial port for control
The serial port signal is asynchronous half duplex communication mode, and the hardware automatic diversion needs no additional enable IO
The interface of servo system adopts error proofing connection to ensure proper connection
UART interface is general pin way, can be used as USB to serial port output, also can connect MCU UART to control the steering gear
With signal level power indicator (D1), TX (D2) and RX (D3) indicator, convenient to view data status
The 5V voltage is supplied from the USB, otherwise the external voltage is supplied to the 5V
500mA overcurrent protection and overvoltage protection for USB power supply belt

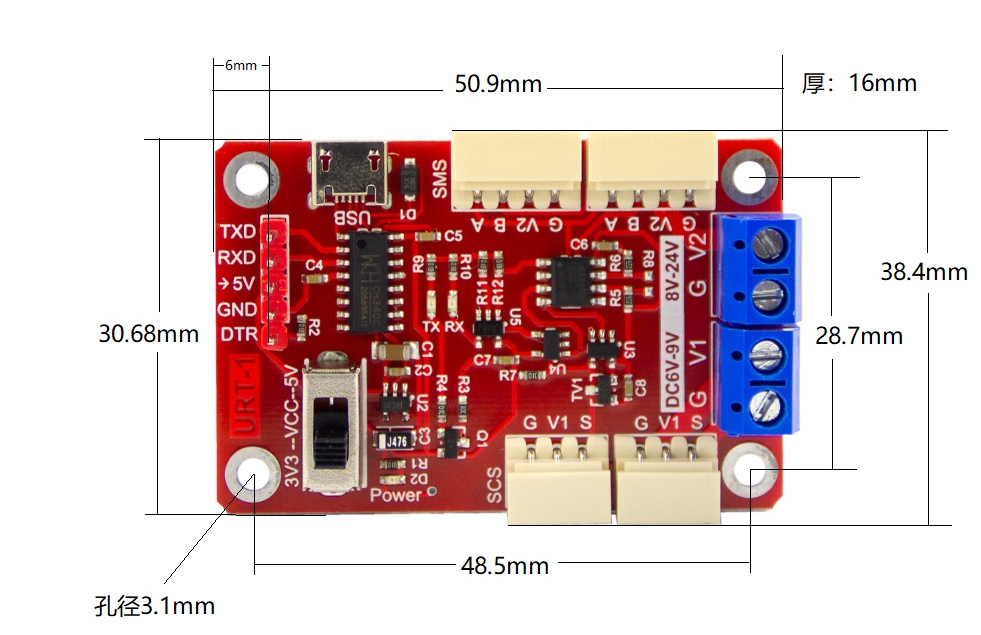

3. specification parameters
Weight: 12.5 grams
Size (L*W*H):55.8 * 36.6 * 11.5 mm
Mounting size: 48.8 * 28.8 mm
USB interface: MINI USB
UART interface: 2.54 pin spacing
SCS servo interface: 3PIN 5264-3AW
SMS servo interface: 4PIN 5264-4AW
Actuator power interface: 5.08 terminal

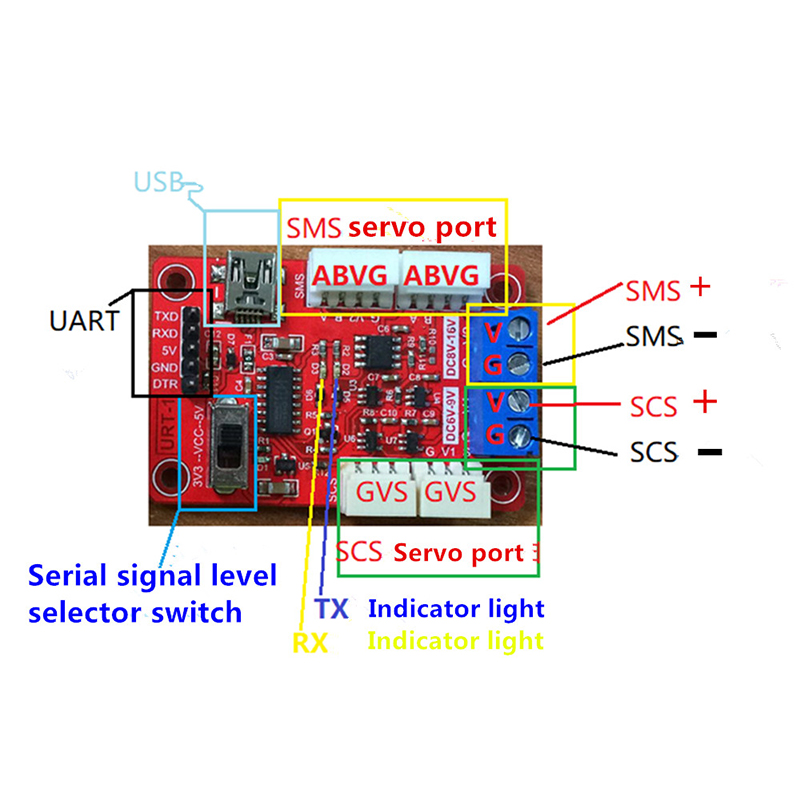

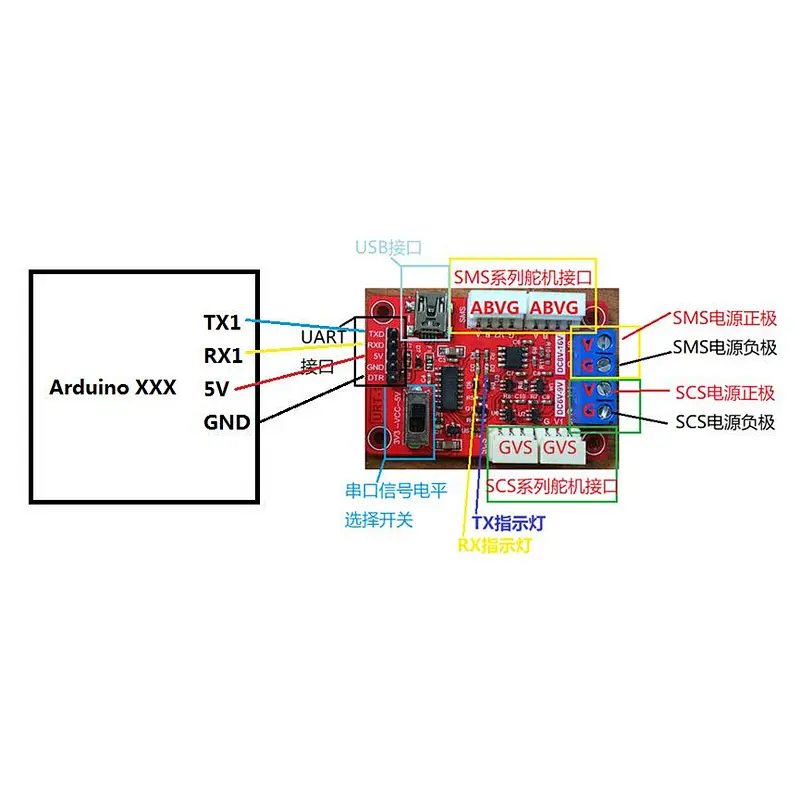

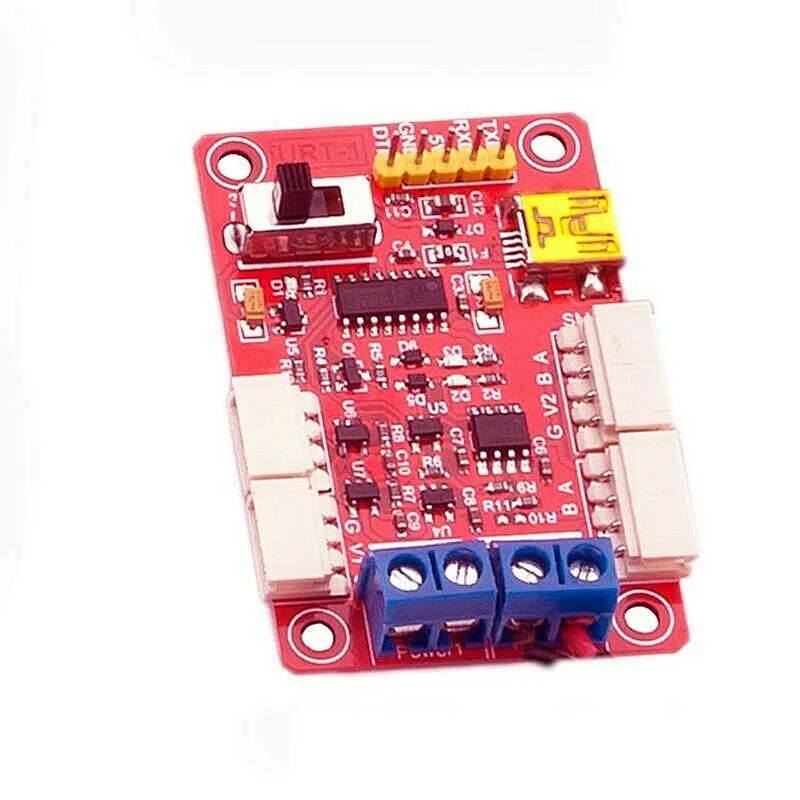

4.Motherboard Port:
URT-1 multifunction serial signal converter, in order to facilitate the user to debug and use SMS and SCS composite Feite series serial servo design.
URT-1 integrated USB serial port chip, combined with linear low-voltage differential voltage regulator circuit, USB signal can be easily converted to 5V or 3V3 serial signal level.
In the URT-1 board, serial signal conversion circuit respectively into two different levels of signal, which A road -asynchronous
half duplex RS485 level port can be connected to the SMS series servo; B - asynchronous half duplex TTL level single bus port can
be connected to the SCS series of steering gear.
In the URT-1 board in the input and output signal by using asynchronous serial time-sharing using hardware circuit, hardware
automatic diversion, without the use of additional IO enable to control, reduce the occupation of MCU port burden and code simple.
USB port using USB MINI interface; UART interface with 2.54 row spacing general; SMS series servo interface using 5264-4AW
interface can be directly connected to the steering gear; SCS series servo interface using 5264-3AW interface can be directly
connected to the steering gear.
The working voltage of SMS and SCS series servo fit is not the same, reuse requires a different working voltage, power supply port
and can also access the SCS from the SMS section of the step-down power supply high voltage after making the system with a power
supply to provide power.
Because the power port has overcurrent limit, the maximum is 6A, so it is necessary to do additional power distribution processing
in the actual application of the serial connection of more servos. URT-1 is only used for signal conversion.
2. Functional Features
Full speed USB device interface, compatible with USB V2.0
Support baud rate 50bps~1Mbps
5V and 3V3 UART serial port signal level can be switched freely
Supports 32/64 bit Windows 10/8.1/8/7/VISTA/XP, SERVER 2016/2012/2008/20032000/ME/98
Microsoft digital signature authentication
SMS and SCS series servos can be shared by one serial port for control
The serial port signal is asynchronous half duplex communication mode, and the hardware automatic diversion needs no additional enable IO
The interface of servo system adopts error proofing connection to ensure proper connection
UART interface is general pin way, can be used as USB to serial port output, also can connect MCU UART to control the steering gear
With signal level power indicator (D1), TX (D2) and RX (D3) indicator, convenient to view data status
The 5V voltage is supplied from the USB, otherwise the external voltage is supplied to the 5V
500mA overcurrent protection and overvoltage protection for USB power supply belt
3. specification parameters
Weight: 12.5 grams
Size (L*W*H):55.8 * 36.6 * 11.5 mm
Mounting size: 48.8 * 28.8 mm
USB interface: MINI USB
UART interface: 2.54 pin spacing
SCS servo interface: 3PIN 5264-3AW
SMS servo interface: 4PIN 5264-4AW
Actuator power interface: 5.08 terminal
4.Motherboard Port:
5. Matching list
MINI USB connection line
Power supply and line of rudder
Connecting line between steering gear and steering engine
Du Bangxian (optional)
MINI USB connection line
Power supply and line of rudder
Connecting line between steering gear and steering engine
Du Bangxian (optional)
Click Install to wait for a period of time, do not close the installer before prompt for successful installation.
Successfully installed or installed successfully before the driver, in the URT-1 connection to the computer USB port, in the
computer device manager can see the corresponding port number.
6. Drive installation
CH340C driver download address:
Http://www.wch.cn/download/CH341SER_EXE.html
Run the installer driver after download.
Successfully installed or installed successfully before the driver, in the URT-1 connection to the computer USB port, in the
computer device manager can see the corresponding port number.
6. Drive installation
CH340C driver download address:
Http://www.wch.cn/download/CH341SER_EXE.html
Run the installer driver after download.

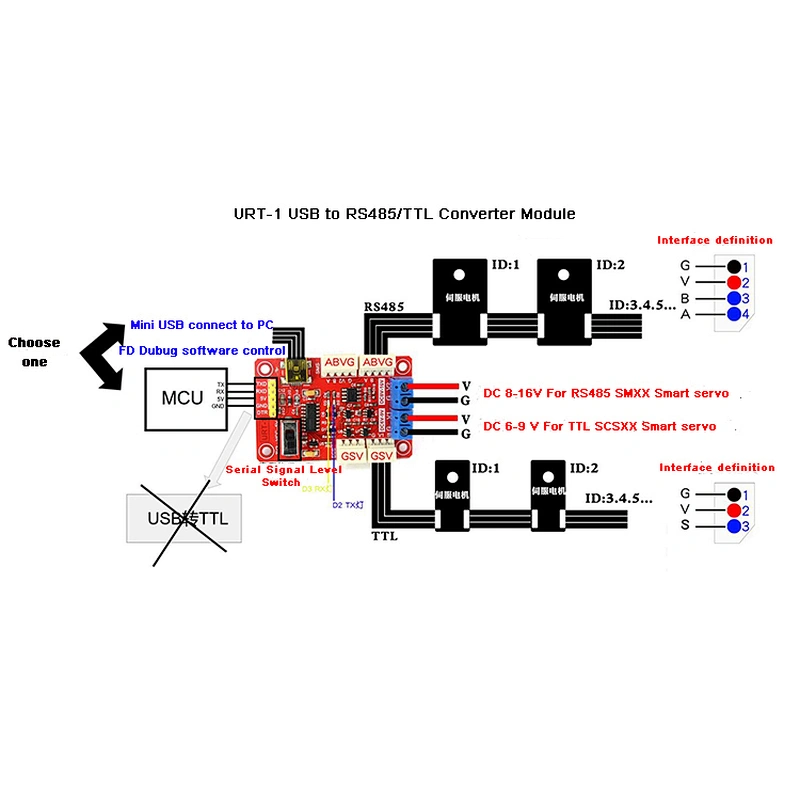

7. Hardware connection
Access the corresponding servos to the corresponding servos interface
The correct power supply is connected to the servo power supply port, in particular, the positive and negative pole of the power
supply can not be connected
Connecting URT-1 and PC with MINI USB line

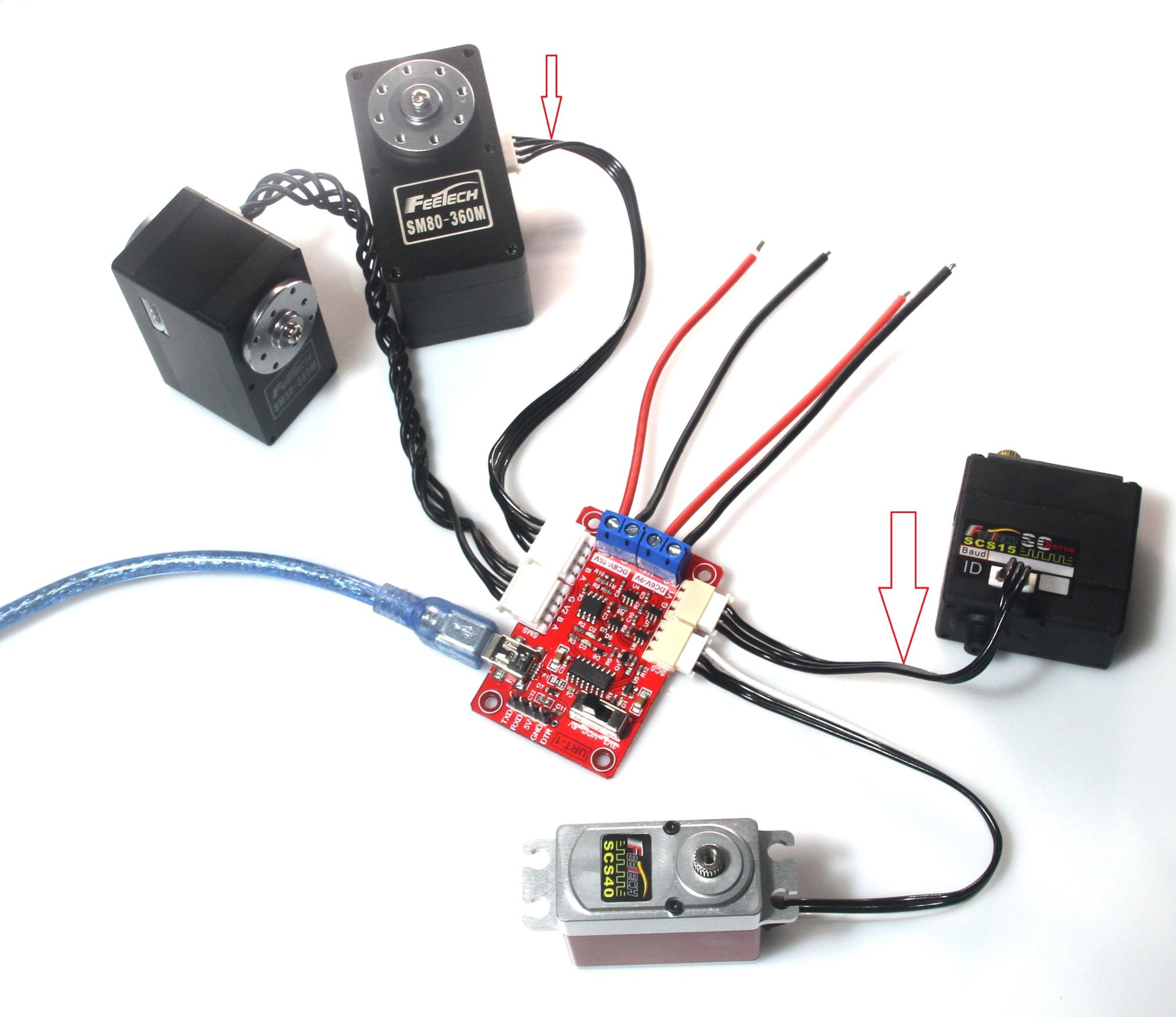

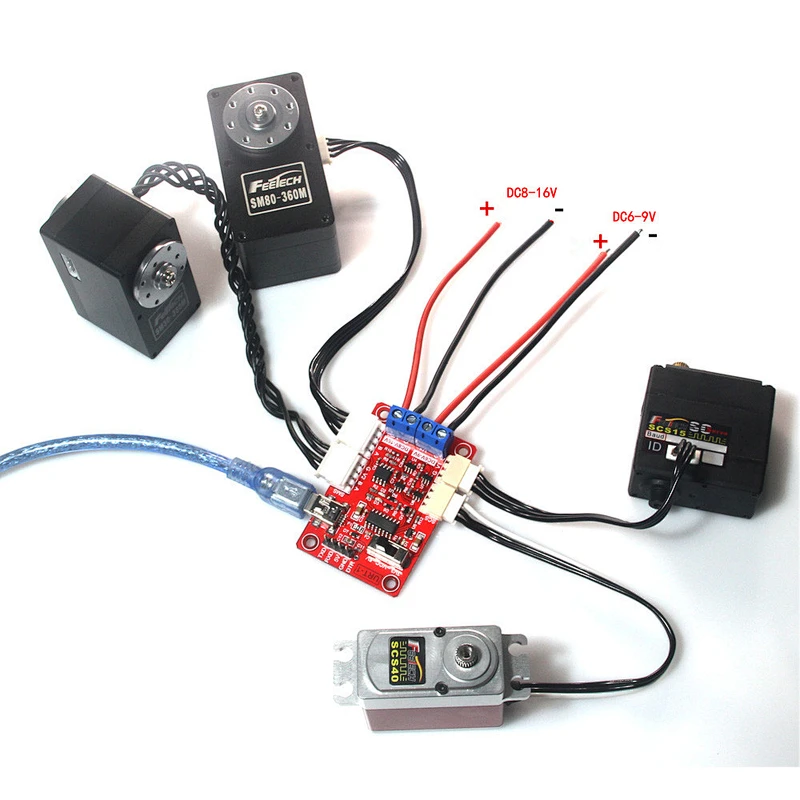

The following is a physical connection between the SMS series and the SCS series servos, as shown below:
Access the corresponding servos to the corresponding servos interface
The correct power supply is connected to the servo power supply port, in particular, the positive and negative pole of the power
supply can not be connected
Connecting URT-1 and PC with MINI USB line
The following is a physical connection between the SMS series and the SCS series servos, as shown below:
8. Software testing
Test with FD software
Debugging assistant test with serial port
Test with FD software
Debugging assistant test with serial port

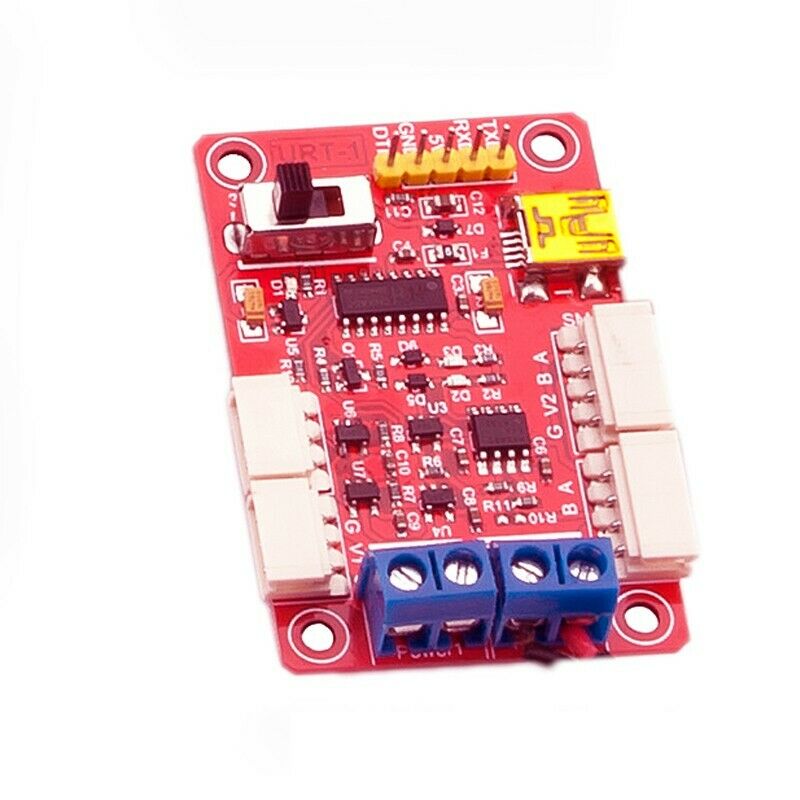

Details Images
Related Products
Packing&Shipping
Packing:
-1PCS URT-1
-1PCS URT-1

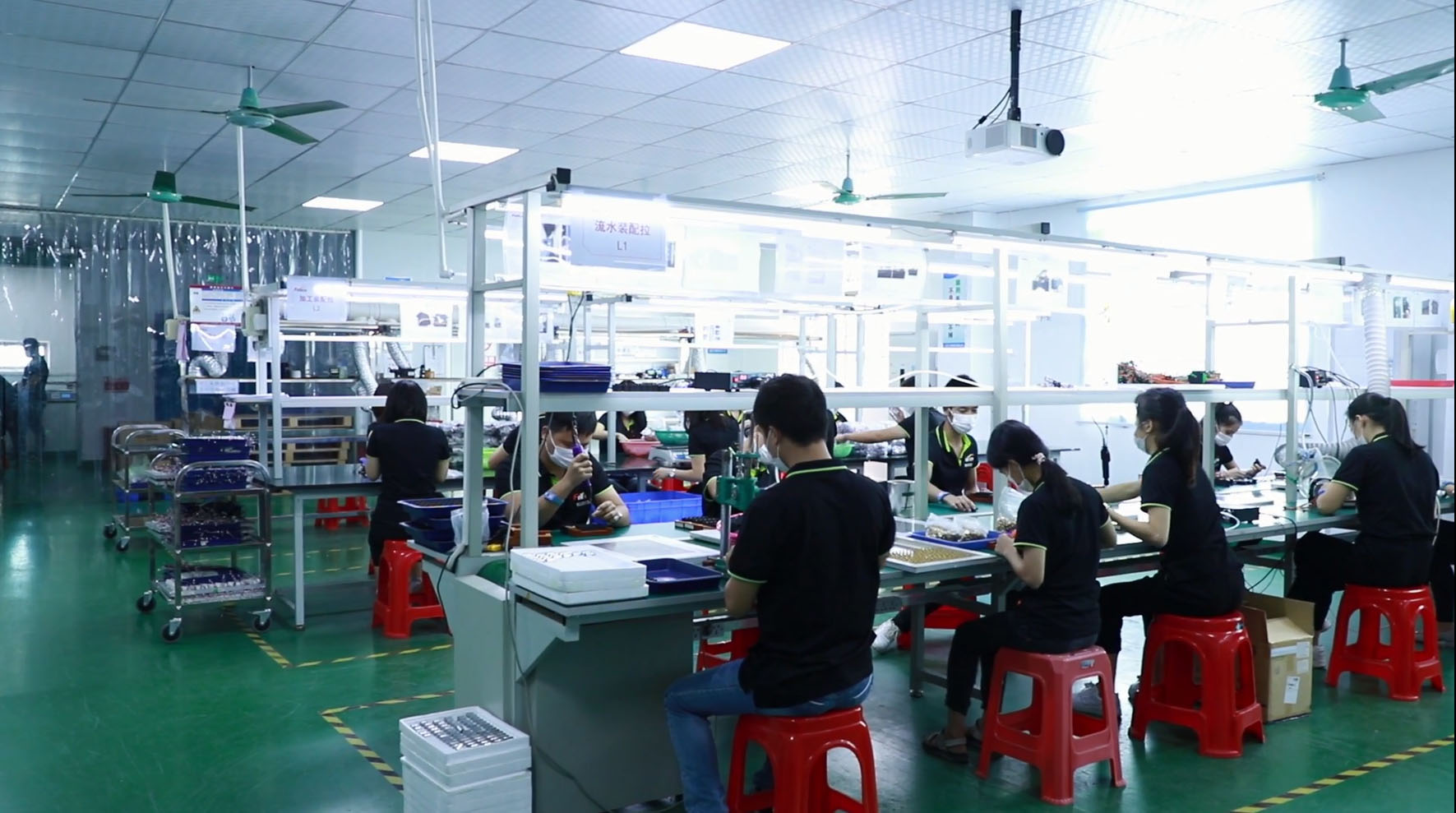

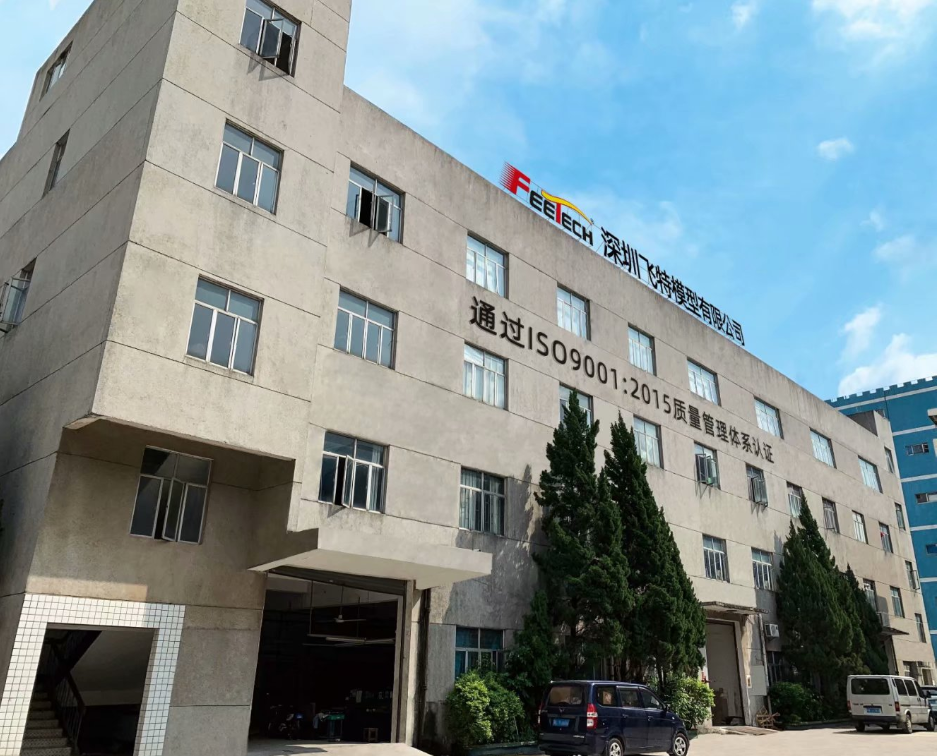

Company Introduction
