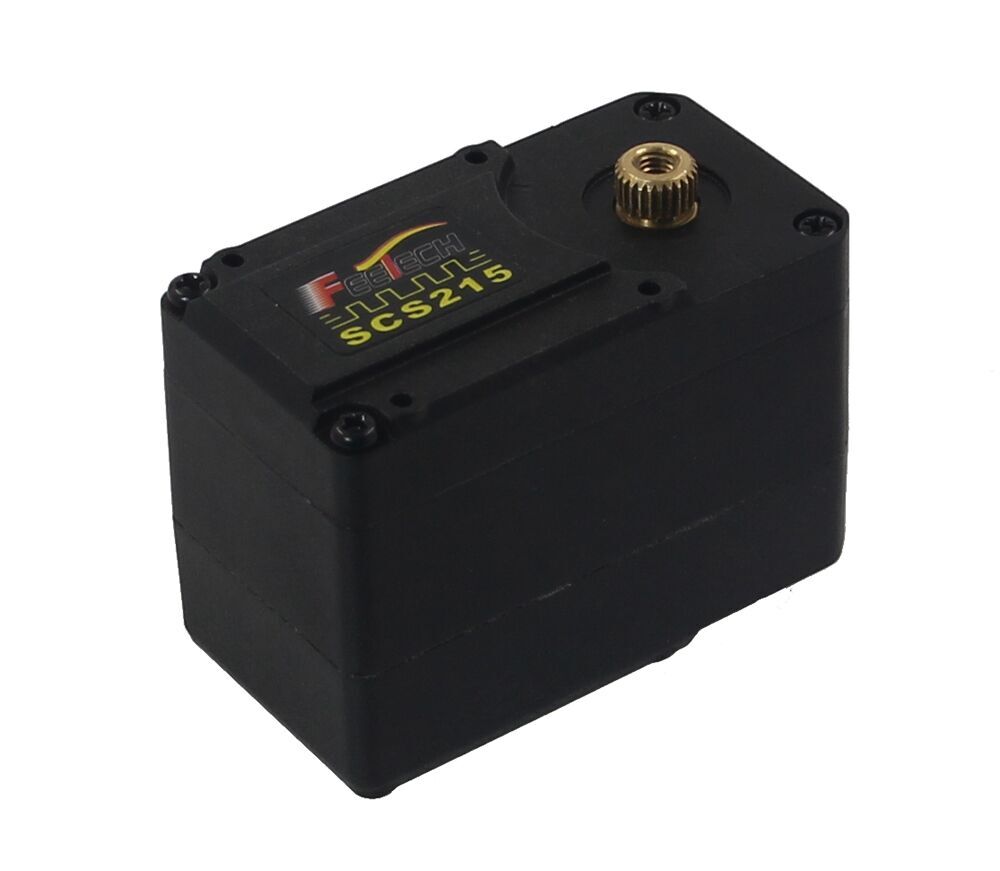

feetech serial bus servo 7.4V 18kg.cm scs215 Serial Control BUS Servo parallax servo continuous 360 feedback from China Manufacturer

Application:Robot
Product name:Robot servo
Brand:Feetech

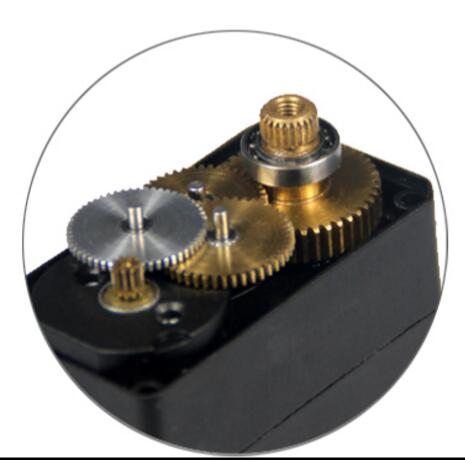

Material:All Metal
Function:Rotation
Torque:18kg
Bus Interface:TTL Level Multi Drop
Dimensions:45.2*24.7*35mm
Color:Black
Angle:0-180 Degree
Type:Car
Power:Battery
Material:plastic
Plastic Type:ABS
Scale:1:5
Radio Control Style:RC Hobby
Place of Origin:CN;GUA
Brand Name:Feetech
Model Number:SCS215

Product Description

Product Name	feetech serial bus servo 7.4V 18kg.cm Serial Control BUS Servo parallax servo continuous 360 feedback
Material	Metal
Application	Robot
Control Protocol	Half Duplex Asynchronous Serial CommunicationGif pack

Dimensions : 45.2*24.7*35mm
Weight : 50g
Operating Angle : 0-180 Degree
Bus Interface : TTL Level Multi Drop
Control Type : Bus Packet Communication
Control Protocol : Half Duplex Asynchronous Serial Communication
Servo ID available : 0 - 253
Communication Speed : 38400 bps - 1M bps
Feedback Type : Position, Temperature, Load, Speed, Voltage
Operating Voltage : 4.8V - 7.4V
Stall Torque (Kg.cm) : 17 (4.8V) - 19.5 (7.4V)
Stall Current : 1.5A (7.4V)
Speed (RPM) : 0.18 sec/60° (6V) - 0.15 sec/60°(8.4V)

The advantage of Serial bus servo:
1.Beautiful wiring structure,
2.Easy to control signal,
3.real-time feedback of position,tempreture,speed,voltage,Current data,
4.Less occupied port.
5.Digital transmission signal is Flexible, convenient, reliable and good compatibility
6.intercommunication;

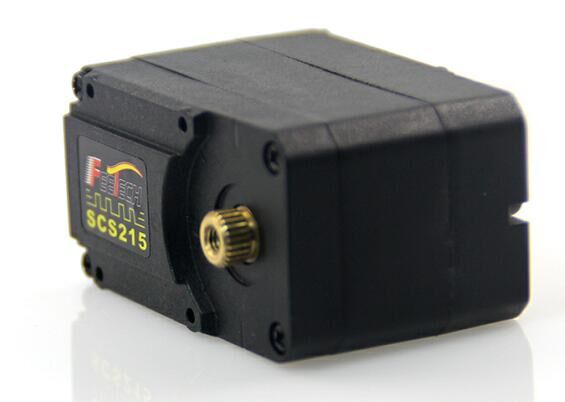

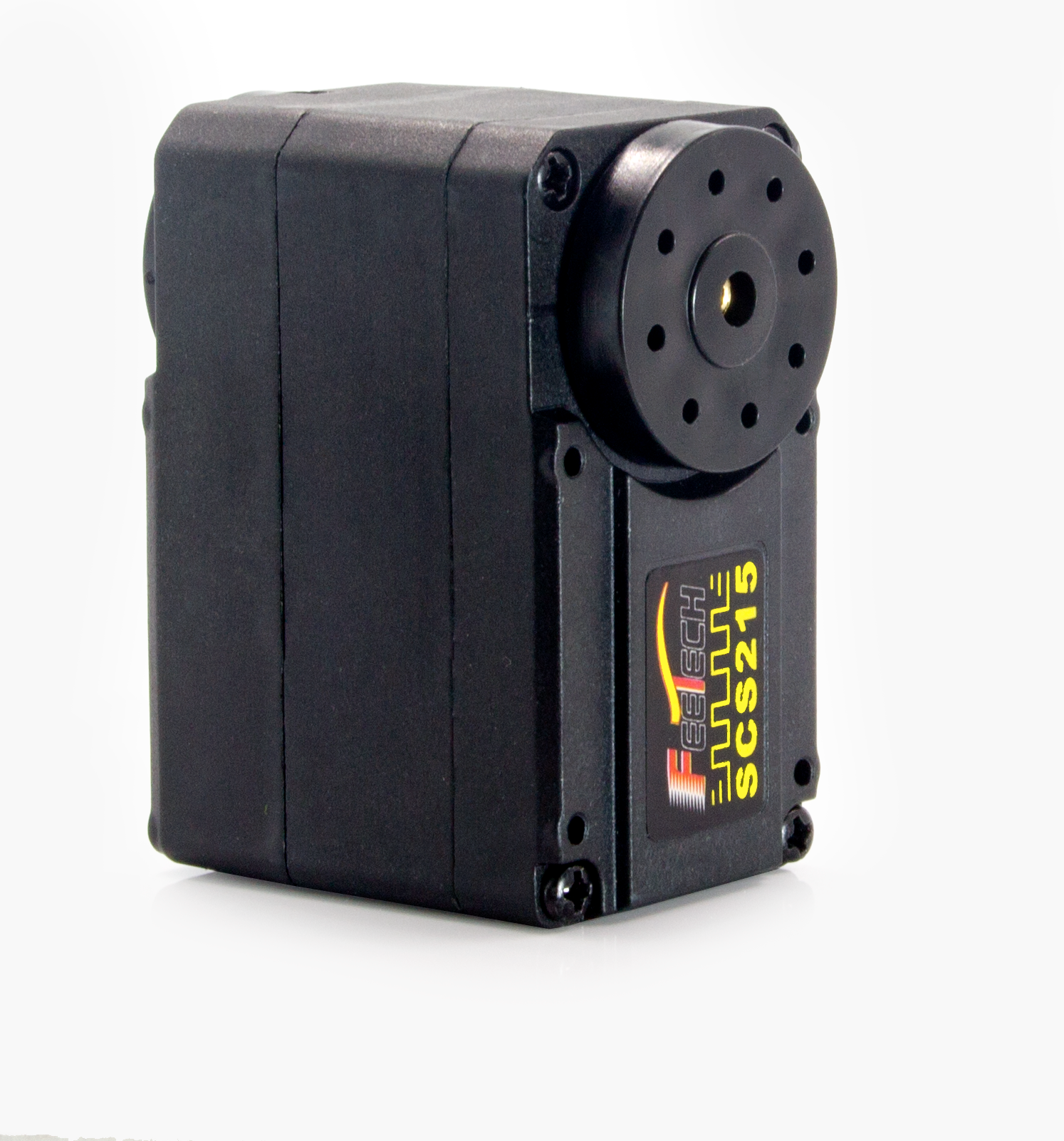

Details Images

Related Products

Packing&Shipping

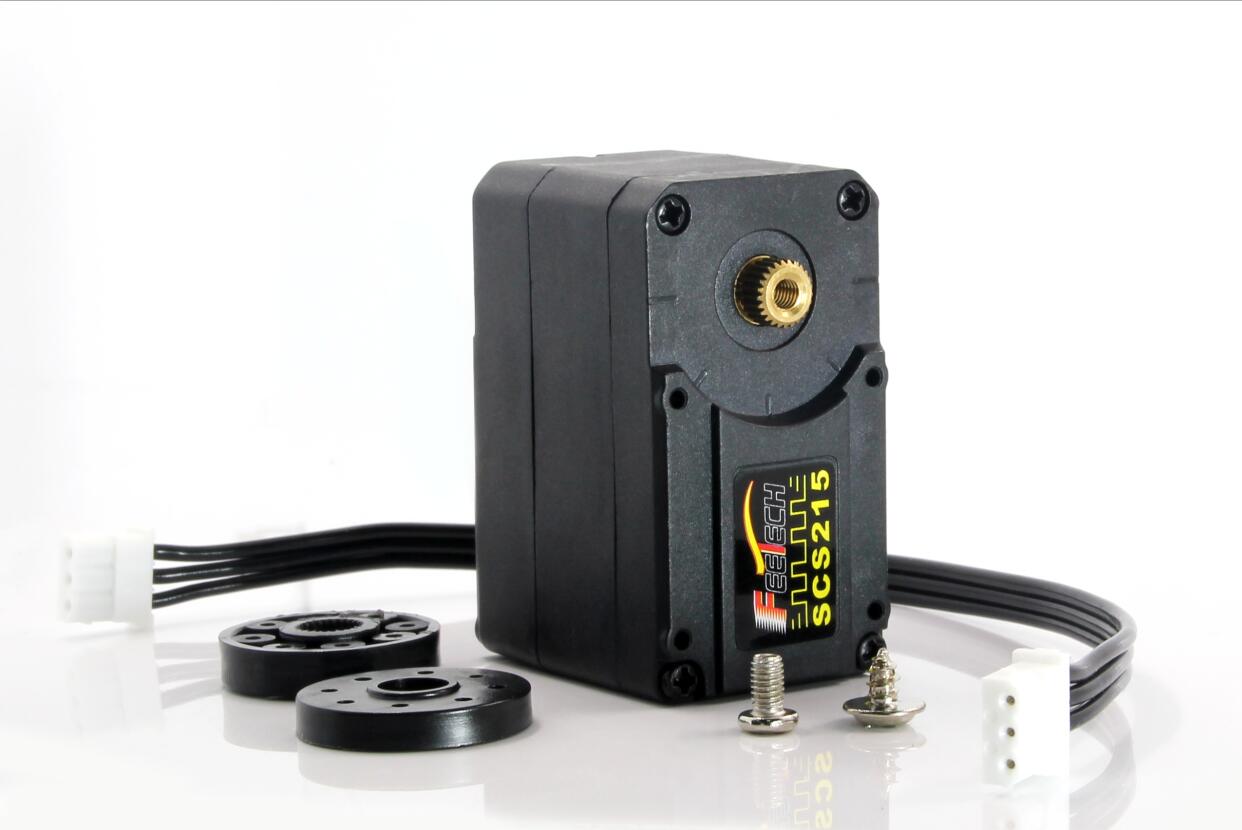

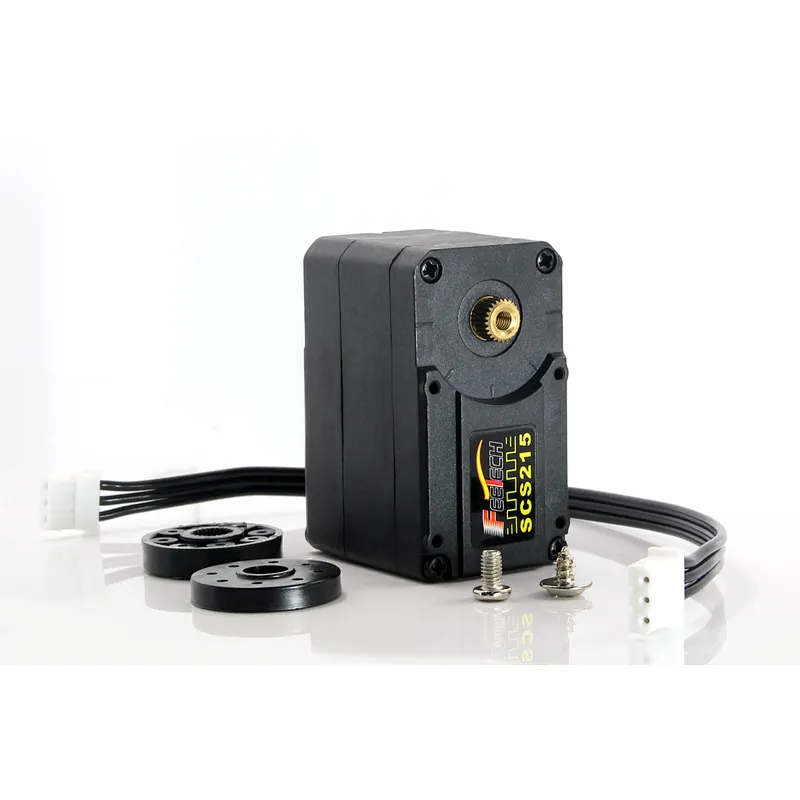

Packing:
-Servo×1PCS
-Servo arm with Screw setX1bag
-1pcs Servo Cable
-1 Pair U Shape Metal Brackets

Company Introduction

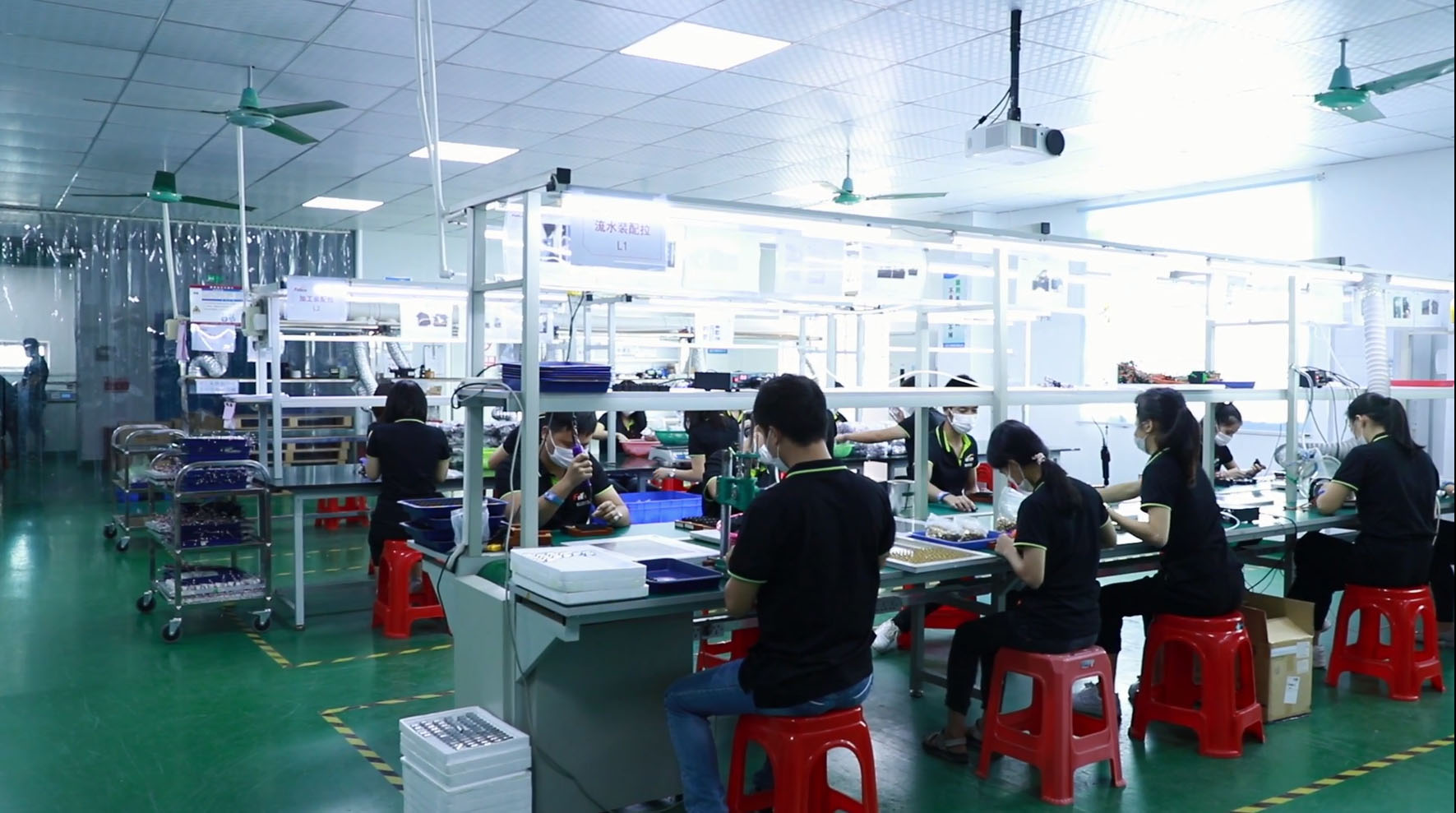

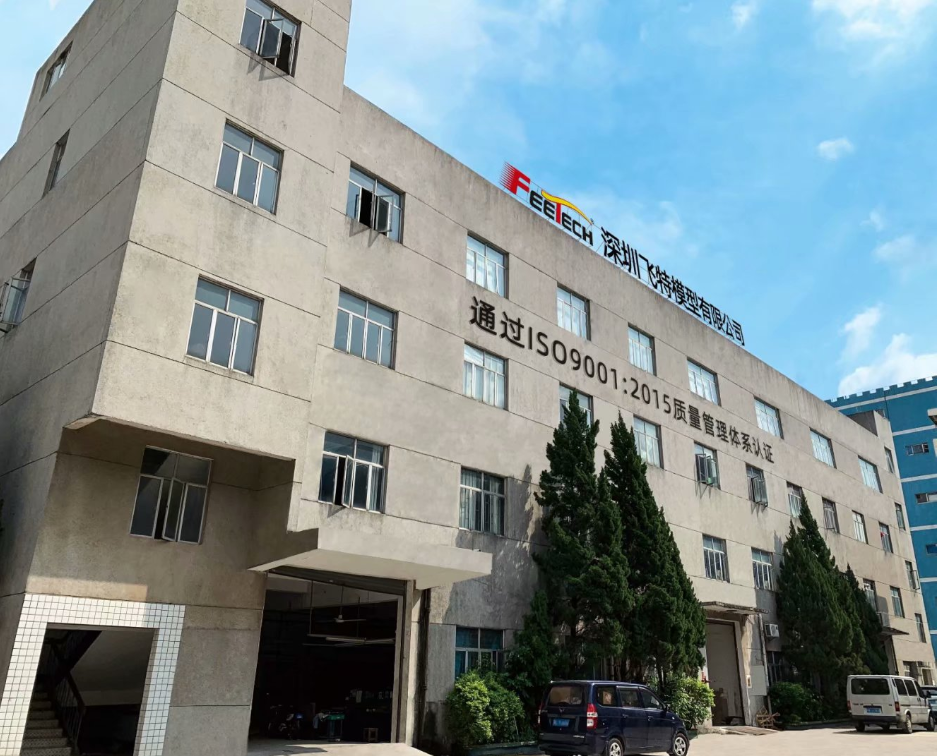

Shenzhen FEETECH RC Model Co., Ltd was established in 2011, We are a research and development, customization, production and sale
of high-quality servos for artificial intelligence products company, Based on the realization of the servo transition curve
constant acceleration technology and precision manufacturing technology, take hold in intelligent modular products which are more
suitable for position control, The products are related to logistics, urban security, medical, military, education, AR industry,
commercial robot and so on. It is committed to providing customized servo and industry solutions for enterprise users, and has
been highly recognized and widely adopted by the partners. Since its development, Feetech has established a deep cooperative
relationship with famous universities, Chinese Academy of Sciences, University of Hong Kong , and major emerging
enterprises.Feetech make arduous efforts to promote the artificial intelligence industry development . The brand of “FEETECH” is
based on the concepts of Flying, Excellent, Efficient and Technology. We look forward to working with you to build a better future
together!

Our Services & Strength

Our Services & Strength
Specialized in ODM and OEM and Custom Made
Shipping
We adopt EXW term. Generally, we choose, DHL, FedEx, EMS or UPS as our forwarder. Of course, you can choose your own most
favorable forwarder, and we would provide the freight bill according to the quantity and weight of the total products, Freight
Collect can also be acceptable.
Payment
We adopt T/T payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are
charged to purchasers.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request
Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible
service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we
will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the
date of purchase.

FAQ

Q:How about your quality?

A:Our quality will be good,and the goods have been checked and tested one by one before shipping.

Q:How long for the delivery once we place order?

A:The lead time is declded the item you ordered and the quantity.

For normal order,the lead time is about in 5-7 days,

If big quantity or OEM,the lead time will be some days more.

Q:The price you are offering is with shipping costs included?

A:The price does not include the shipping cost.We offer several

shipping solutions,make sure customers choose the most economical one.

Q:Do you have After-Sales Service?

A:Of course,We have special department to do it,and if you have any technology

problem,our eingeer will give your answer.
